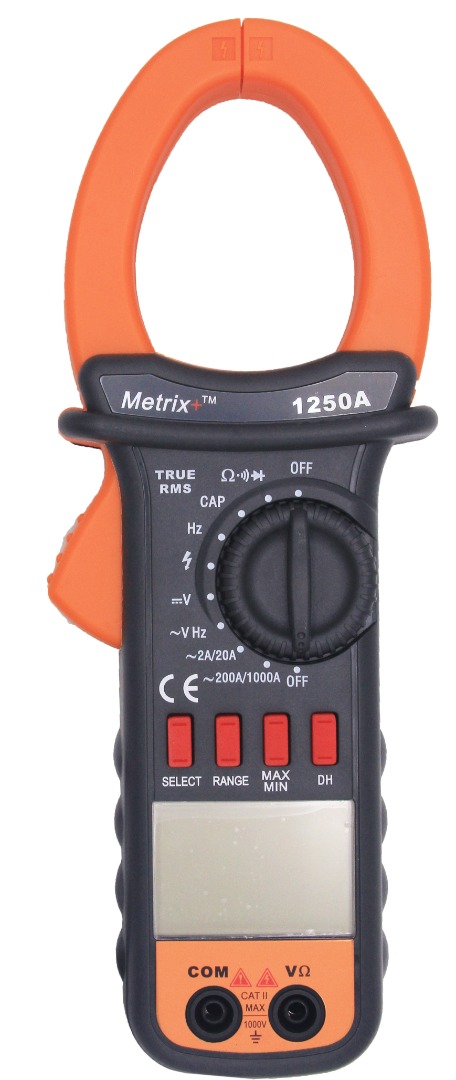

1000A True RMS Digital AC Clamp Meter with sturdy 52mm jaw size.
| Model | Metrix+ 1250A |
| LCD Display | 3 ½ Digit 1999 count |
| Safety Standard | IEC 61010-1 |
| Range | Manual + Auto |
| DC Voltage | 200mV/2V/20V/200V/1000V, ±0.8%±2d |
| AC Voltage | 2V/20V/200V/700V , ±1.2%±5d |
| AC Ampere (True RMS) | 2/20/200/1000A , ±2%±10d |
| Resistance | 200/2k/20k/200k/2M/20MΩ, ±2%±5d |
| Capacitance | 20n/200n/2u/20u/200u/2mF, ±3%±10d |
| Frequency | 200/2k/20k/200k/2M/20MHz, ±0.5%±5d |
| Jaw Diameter | 52mm |
| Other Functionalities | Continuity, Diode, Data Hold, Auto Power OFF |
| Storage Temperature & Humidity | -20oC ~ 60oc, <80%RH |
| Operating Temperature &Humidity | 0oC ~ 40oc, <70%RH |
| Battery | 9V |
| Dimension & Weight | 248×88×45mm, 360g(including battery) |
| Accessories Included | Instruction Manual, Test Lead, Carry case, Battery |
