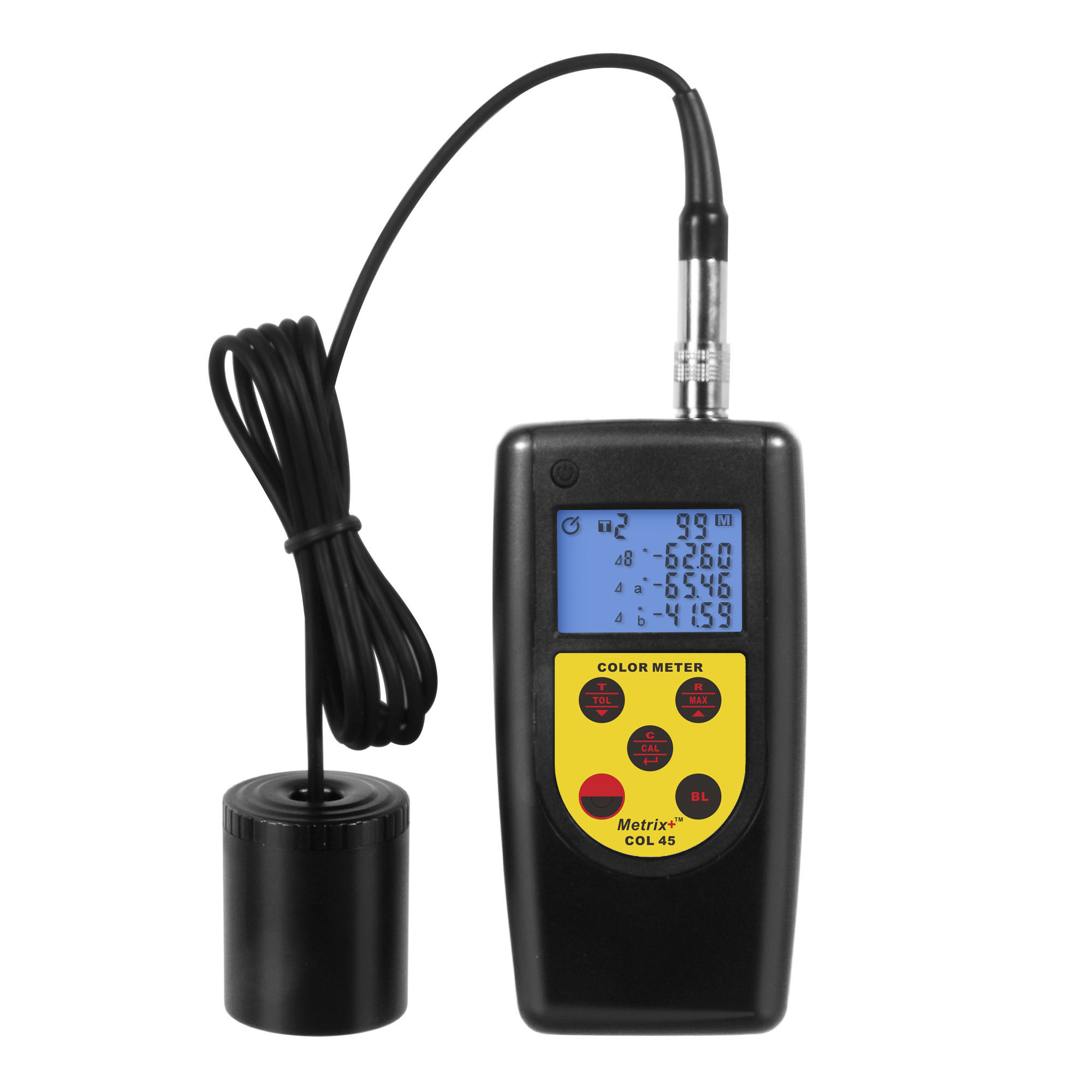

| Model | Metrix+ COL 45 |
| Display | Triple 4-digit LCD display |
| Measuring Geometry | $45^\circ / 0^\circ$ (Illumination at $45^\circ$, measurement at $0^\circ$) |
| Color Space Measurement | $(L^, a^, b^)$, $(L^, C^*_{ab}, h_{ab})$, $(Y, x, y)$, $(X, Y, Z)$, $(R_s, G_s, B_s)$, $(WI, YI, Tw)$ |
| Color Difference Measurement | $\Delta(L^, a^, b^)$, $\Delta(E^_{ab}, C^_{ab}, H^_{ab})$, $\Delta(Y, x, y)$, $\Delta(X, Y, Z)$, $\Delta(R_s, G_s, B_s)$, $\Delta(WI, YI, Tw)$ |
| Illuminant | White LED lamp |
| Measuring Area | Approx. $\varnothing 10\text{ mm}$ |
| Measuring Range | $L^* : 5\text{ to }100$ |
| Target Color Memory | 9 values (set by measurement or manual entry) |
| Measurement Conditions | Observe: CIE $2^\circ$ standard observer |
| Repeatability | Standard deviation within $\Delta E^*_{ab} 0.5$ (measured using the average of measurements of a standard white plate) |
| Minimum Interval Between Measurements | Approx. 2 seconds |
| Data Storage | 99 sets (direct reading from LCD display) |
| Operating Conditions | Temperature: $0 \sim 40^\circ\text{C}$; Humidity: $<85\%\text{ RH}$ |
| Storage Conditions | Temperature: $-10 \sim 40^\circ\text{C}$; Humidity: $<70\%\text{ RH}$ |
| Power Supply | $4 \times 1.5\text{V AAA}$ (UM-4) batteries |
| Dimensions & Weight | $140 \times 73 \times 35\text{ mm}$; Approx. $220\text{ g}$ (with batteries) |
| Standard Accessories | Main unit, measuring head (sensor), white calibration card, operational manual, batteries, carrying case |
| Optional Accessories | PC interface |
