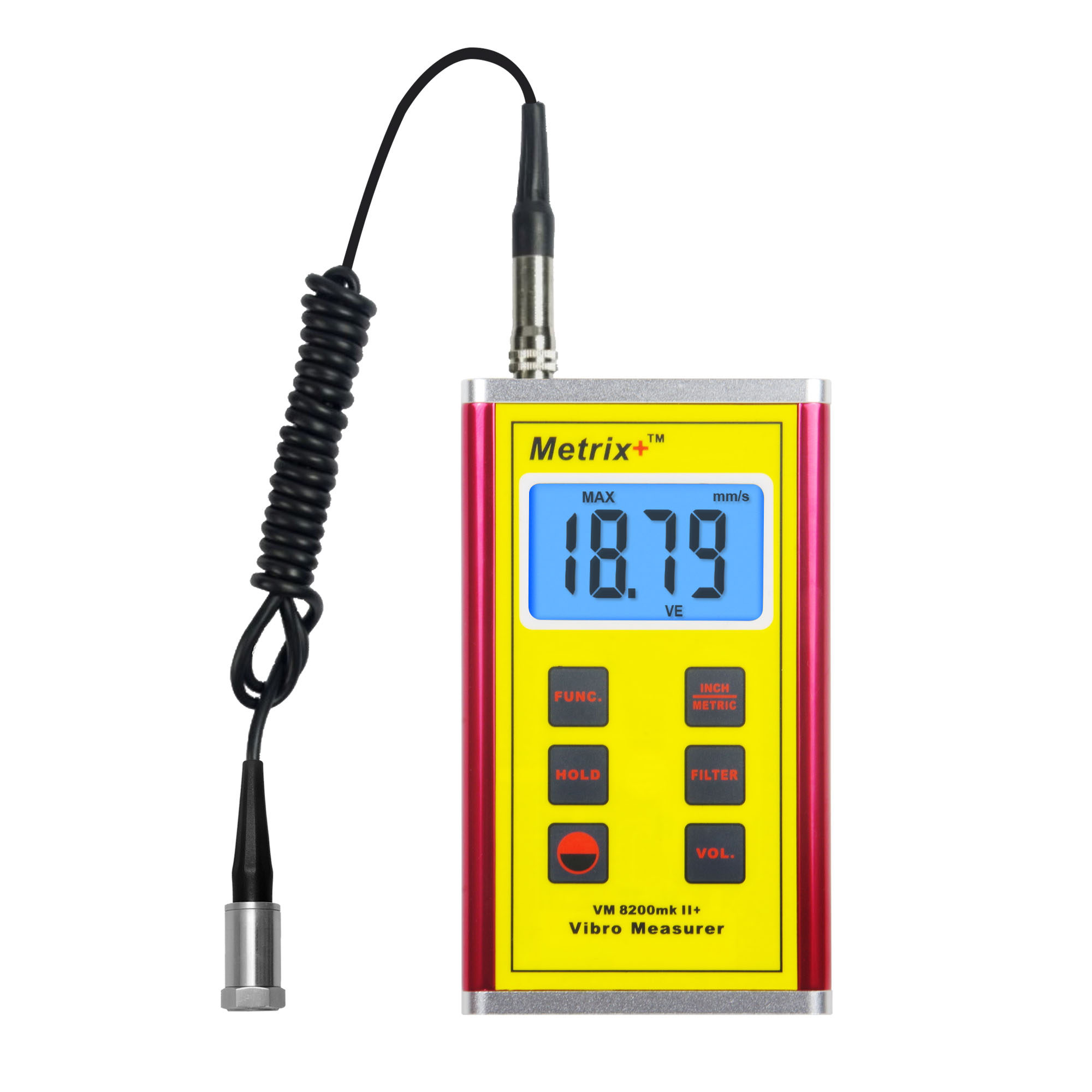

Metrix+ VM 8200mkII+

Sturdy metal body Vibration Meter with measuring range upto 400mm/s and wide frequency range in acceleration mode.

Features:

Individual high-quality accelerometer for accurate and repeatable measurement.
Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
Acceleration, velocity and displacement measurements.
Sturdy metal body for rugged operation.
Wide frequency range in acceleration mode.
RPM and frequency measurements.
Backlit LCD display.

Buy Now

Model	*Metrix+ VM 8200 mkII+*
Display	4-digit backlit LCD
Transducer	Piezo electric accelerometer
Velocity	0.01 ~ 400.0 mm/s ; 0.000 ~ 16 inch/s
Acceleration	0.1 ~ 400.0 m/s², 0.3 ~ 1312 ft/s² equivalent peak
Displacement	0.001 ~ 4.000 mm equivalent peak-peak; 0.04 ~ 160.0 mil
R P M	60 ~ 99,990 r/min
Frequency	1 ~ 20kHz
Frequency range for measuring	Acceleration	10Hz – 10kHz
	Velocity	10Hz – 1kHz
	Displacement	10Hz – 1kHz
Accuracy	+5% of reading
APO	Enabled by user
Max hold	Peak Hold
Analog output	AC output 0 ~ 2.0V peak full scale(load resistance above 10k)
Power supply	1.5V x 2 AA battery
Operating condition	Temperature : 0-50^oC ; Humidity : below 95% RH
Dimensions and weight	130 x 70 x 30mm ; 305g
Standard accessories	Powerful rare earth magnet, measurement probe, stinger probe(cone), stinger probe(ball), manual, batteries, carrying case
Optional accessories	PC interface

Applications:

A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance. A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges.

Measuring principle:

Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing.
