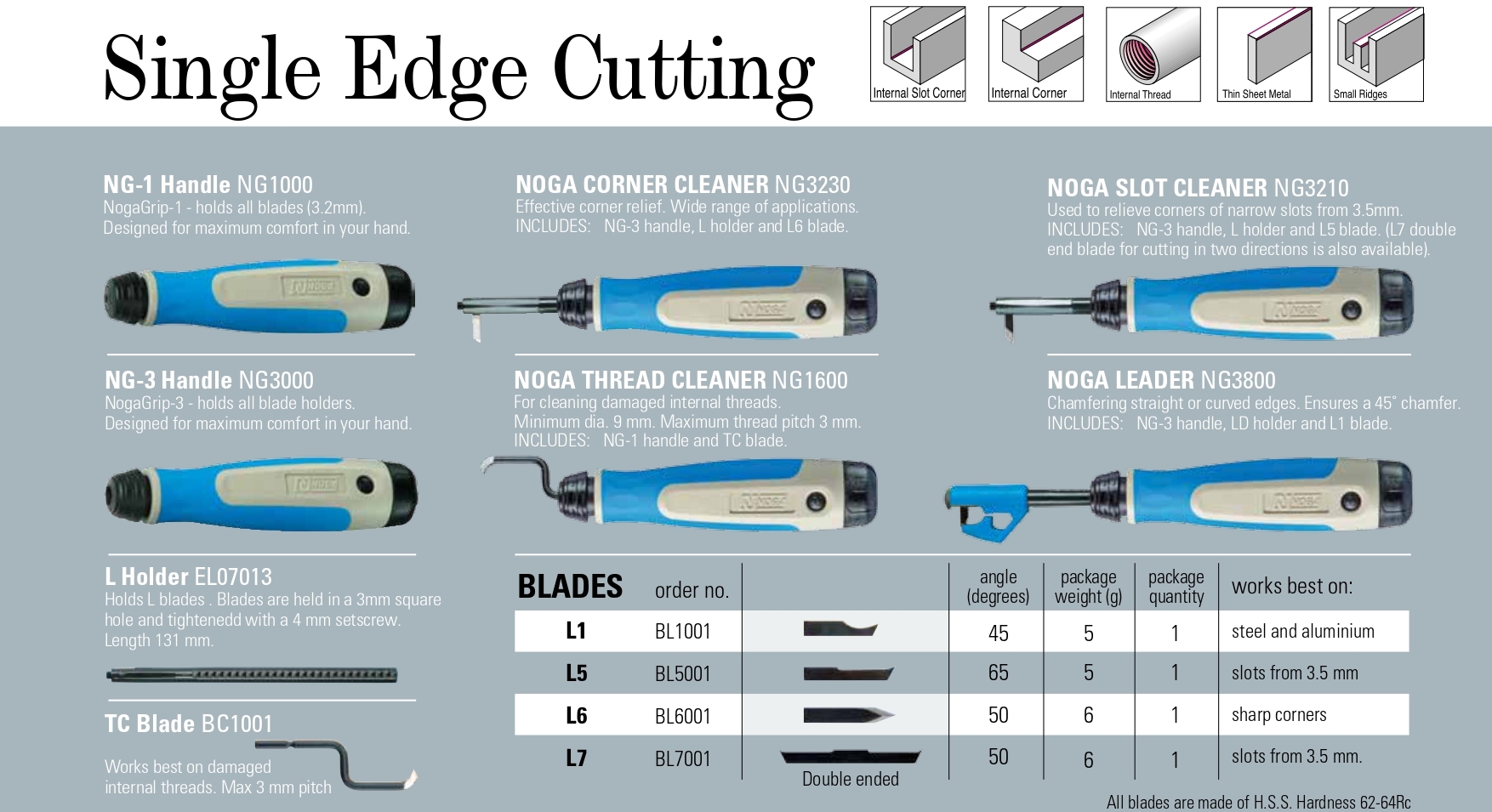

Blades



TC – BC1001

TC Thread Cleaner Blade.
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 0 – 3 mm
  • Weight: 8 gr
  • Pack quantity: 1 pcs


L1 – BL1001

Works best on steel & aluminum.
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 45 Deg
  • Weight: 5 gr
  • Pack quantity: 1 pcs


L5 – BL5001

Works best on slots from 3.5 mm.
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 65 Deg
  • Weight: 5 gr
  • Pack quantity: 1 pcs


L6 – BL6001

Works best on sharp corners.
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 50 Deg
  • Weight: 6 gr
  • Pack quantity: 1 pcs




L7 – BL7001

Works best on slots from 3.5 mm.
Double end.
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 65 Deg
  • Weight: 6 gr
  • Pack quantity: 1 pcs



Tools

NOGA CORNER CLEANER NG3230

Effective corner relief. Wide range of applications.
INCLUDES: NG-3 handle, L holder and L6 blade.

NOGA SLOT CLEANER NG3210

Used to relieve corners of narrow slots from 3.5mm.
INCLUDES: NG-3 handle, L holder and L5 blade. (L7 double end blade for cutting in two directions is also available).

THREAD CLEANER – NG1600

For cleaning damaged internal threads.

Minimum Dia. 9 mm.

Maximum thread pitch 3 mm.

LEADER – NG3800

Chamfering straight or curved edges.

Ensures 45 Degrees Chamfering by using the LD holder.



Sets

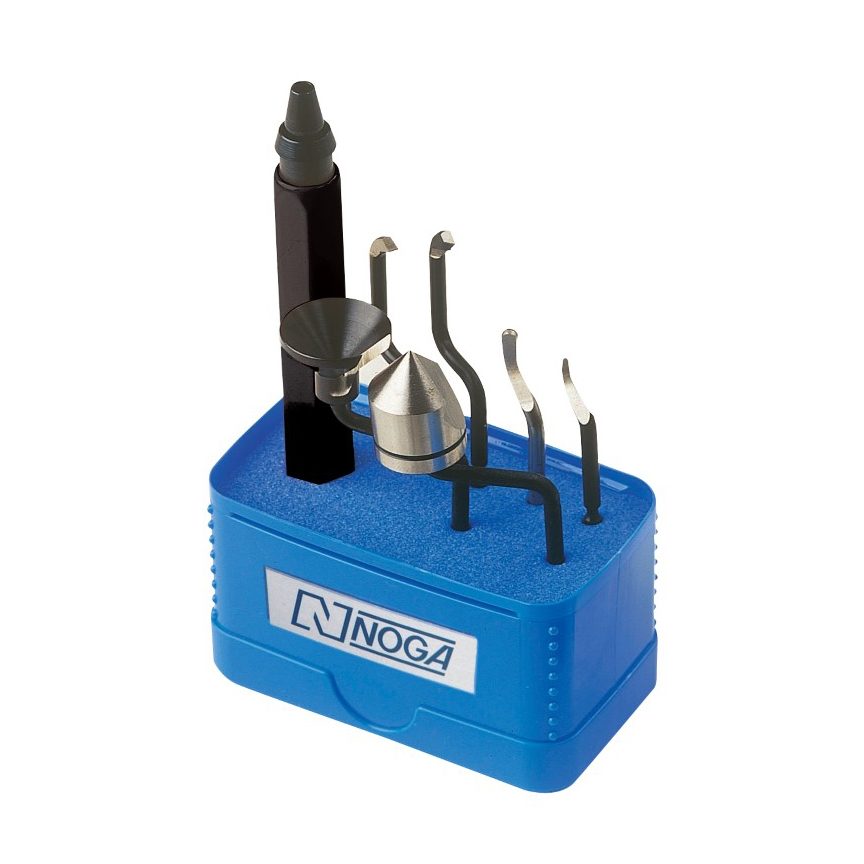

NOGA 007 – SP1007

Deburring, cleaning, finishing and countersinking.
Ideal for maintanance people.
Comes with a short RB Hex.12mm aluminum handle.

Pack Dimensions: 125 x 78 x 48 mm

Handles

NG-1 Handle – NG1000

NogaGrip-1 holds all S blades(3.2mm). Spare blades are kept inside back cap. Designed for maximum comfort in your hand.

NG-3 Handle – NG3000

NogaGrip-3 holds all blades holders. Spare blades are kept inside back cap.Designed for maximum comfort in your hand.

Holders

L Holder – EL07013

Holds L blades. Blades are held in a 3mm square hole and tightened with 4mm setscrew.

  • Length: 131 mm
