STRENGTH TESTERS

Name: STRENGTH TESTERS
Brand: Imada

Digital Tensiometers High Capacity Digital Tensiometers Standard Features ZTS/ZTA Tensiometer Standard Features Best value high capacity tensiometers with capacity up to 1100 lbf (push/pull) USB (virtual COM port), RS-232C Tensiometers, Digimatic and analog outputs Tensiometers have heavy-duty metal construction lbf, kgf, and Newton units are push-button selectable Overload alarm, low battery display indicator Outstanding display

f in

Click to Expand

STRENGTH TESTERS

Product Overview

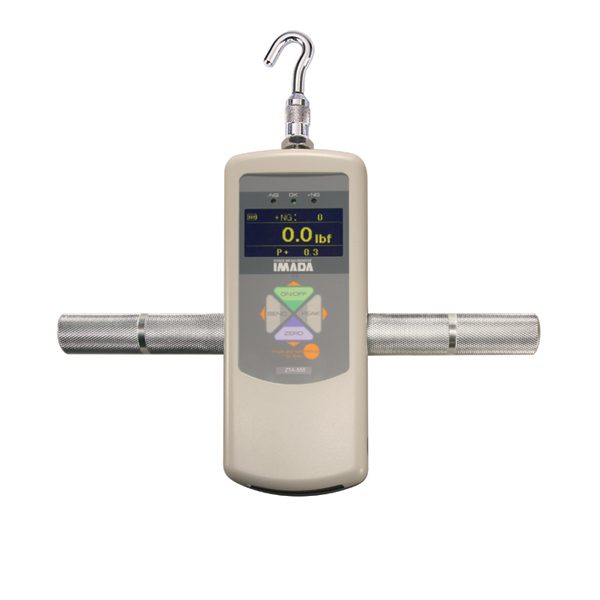

The Imada ZTS/ZTA series are high-capacity digital tensiometers designed for precision push/pull force measurement. Engineered with heavy-duty metal construction, these instruments provide reliable performance for demanding industrial testing environments. The units feature a high-speed display update rate and versatile connectivity options for data integration.

Key Features & Capabilities

High Capacity: Supports push/pull force measurement up to 1100 lbf.
Selectable Units: Push-button selection between lbf, kgf, and Newton units.
Data Connectivity: Equipped with USB (virtual COM port), RS-232C, Digimatic, and analog outputs.
Operational Modes: Selectable real-time and peak measurement modes.
Go/No-Go Testing: Integrated color-coded LED indicators for immediate pass/fail assessment.
Safety & Maintenance: Includes an overload alarm and low battery display indicator.
Overload Protection: Rated for 200% F.S. (Full Scale) overload capacity.
Display Performance: High-speed display update rate of 20 times per second.
Power Options: Operates via internal NiMH batteries or an included AC adapter.
Included Accessories: Supplied with a full set of accessories, AC charger/adapter, and a carrying case.

Technical Specifications

Feature	Specification
Maximum Capacity	Up to 1100 lbf (push/pull)
Overload Capacity	200% F.S.
Display Update Rate	20 times/second
Measurement Units	lbf, kgf, Newton (selectable)
Connectivity	USB (virtual COM port), RS-232C, Digimatic, Analog
Power Source	Internal NiMH batteries or AC adapter
Construction	Heavy-duty metal
Indicators	Color-coded LED (Go/No-Go), Overload alarm, Low battery
