INSIZE TAPER BORE GAGES (CODE – 4852)

Name: INSIZE TAPER BORE GAGES (CODE – 4852)
Brand: INSIZE
SKU: 4852-1

Code:

Quick measurement of bore diameter Hardened steel, HRC50-58 Satin chrome plated surface Aluminium oxided handle Code Range Graduation Accuracy L Ød1 Ød2 4852-1 1-6.5mm 0.1mm ±0.05mm 62.5 7 0.8 4852-3 3-16mm 0.1mm ±0.05mm 143 17 2.8 4852-15 15-30mm 0.1mm ±0.05mm 165 31 14.7 4852-30 30-45mm 0.1mm ±0.05mm 165 46 29.6 4852-45 45-60mm 0.1mm ±0.05mm 167

DOWNLOAD CATALOG

f in

Click to Expand

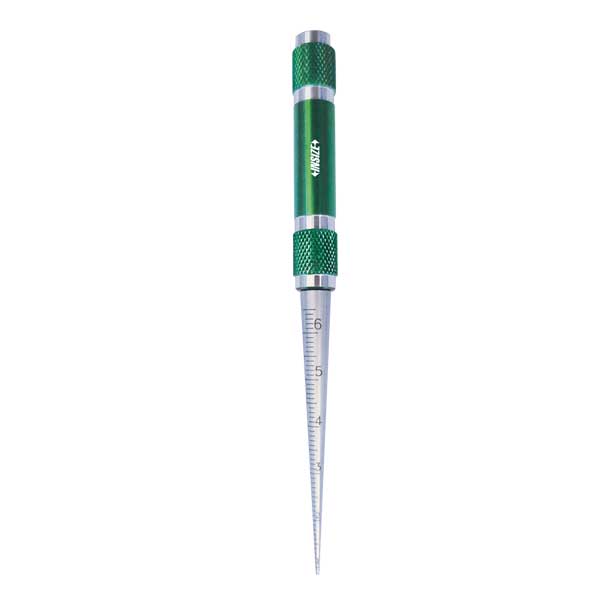

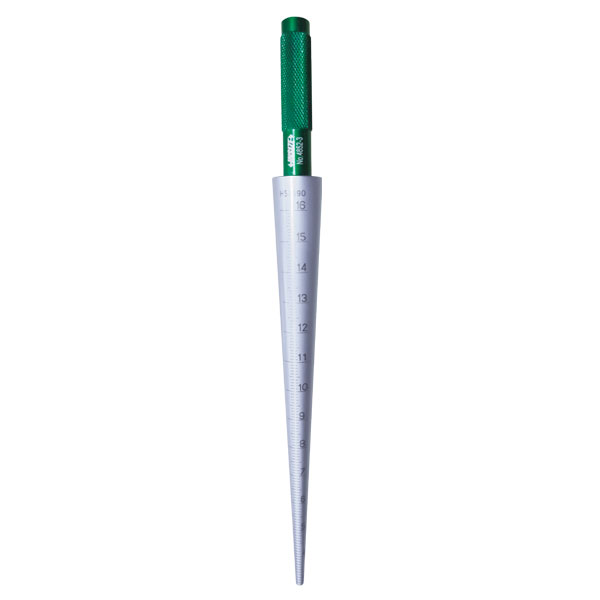

INSIZE TAPER BORE GAGES (CODE – 4852)

Product Overview

The INSIZE Taper Bore Gages (Code 4852) are precision industrial measuring tools designed for the quick measurement of bore diameters. Constructed from hardened steel with a satin chrome plated surface and an aluminum oxidized handle, these gages deliver reliable performance and durability in machining and inspection environments.

Key Features & Capabilities

Designed for quick measurement of bore diameter
Hardened steel construction (HRC 50-58)
Satin chrome plated surface for wear resistance and clear readability
Aluminum oxidized handle for lightweight durability and secure grip
Uniform 0.1 mm graduation and ±0.05 mm accuracy across all models

Technical Specifications

Code	Range	Graduation	Accuracy	L (mm)	Ød1 (mm)	Ød2 (mm)
4852-1	1-6.5 mm	0.1 mm	±0.05 mm	62.5	7	0.8
4852-3	3-16 mm	0.1 mm	±0.05 mm	143	17	2.8
4852-15	15-30 mm	0.1 mm	±0.05 mm	165	31	14.7
4852-30	30-45 mm	0.1 mm	±0.05 mm	165	46	29.6
4852-45	45-60 mm	0.1 mm	±0.05 mm	167	61	44.3
