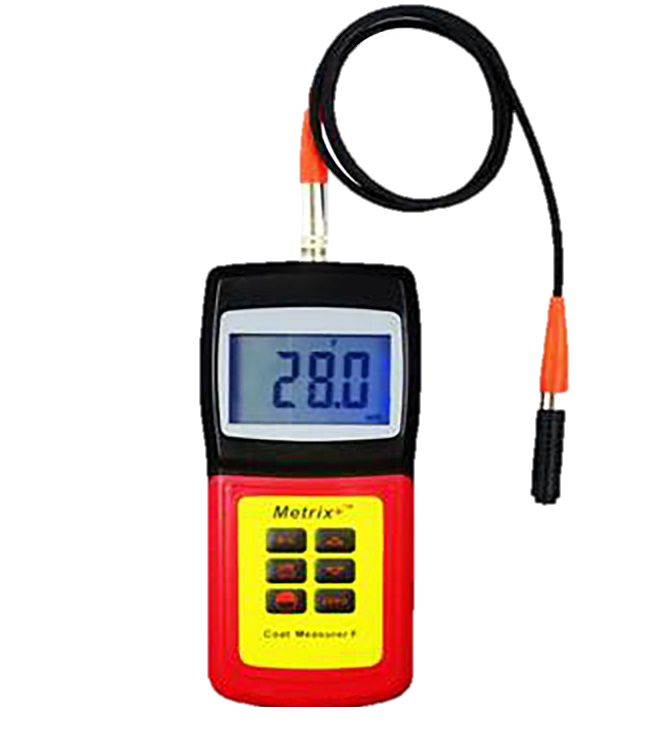

Metrix+ Coat Measurer F

Measure coating thickness on ferrous substrates upto 1250um with external, flexible probe.

Features:

Flexible probe for smaller surfaces
Backlit display for better readability
Zero-point calibration and multi-point calibration
Two measure modes: single and continuous
Selectable um/mil measuring units

Buy Now

Model	*Metrix+ Coat Measurer F*
International Standard	It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS.
Measuring principle	Magnetic induction(F)
Display	4 digits backlit LCD
Measuring range	0 – 1250um (0 – 50mils)
Accuracy	±1-3%n or +2.5um
Resolution	0.1um(0~99.9um); 1um(over 100um)
Units	um /mils
Minimum curvature radius	3mm(convex) 50mm(concave)
Minimum measuring area	Diameter 8mm
Minimum thickness of substrate	0.3mm
Additional features	Low Battery Indicator, Auto power off
Power supply	4 x 1.5V AAA battery
Operation environment	Temperature: 0 to 50℃ ; Humidity: < 95%
Size & Weight	145mm × 65mm × 25mm; 145g(not including batteries)
Standard Accessories	Coating Thickness Gauge, F probe, ‘0’ calibration block, standard foils, batteries, technical manual, hard carry case.
Optional Accessories	PC interface(cable and software)

Measuring principle

This instrument has an external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates.

Applications

The Instrument is designed for non-destructively measuring the thickness of coatings on ferrous substrates. It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, etc.
