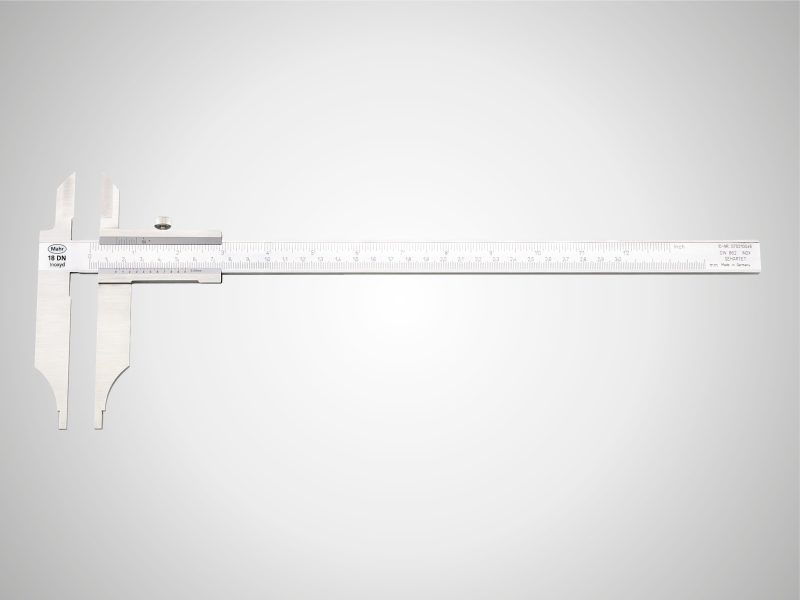

MARCAL 18 DN WORKSHOP CALIPER

MARCAL 18 DN WORKSHOP CALIPER

Measuring blades for outside measurements Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces of workshop caliper made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale up to 1000 mm

Measuring blades for outside measurements
Vernier and main scale have a satin chrome finish for glare free reading
Locking screw above
Rounded measuring blades for inside measurements
Measuring surfaces of workshop caliper made of steel
Slide and beam made of hardened stainless steel
Raised guideway for the protection of the scale
up to 1000 mm delivered with a case, over 1000 mm individually packed

Technical data of Workshop caliper

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4113200	0 – 200	0.05 mm	0.05 mm	DIN 862
4113201	0 – 300	0.05 mm	0.05 mm	DIN 862
4113202	0 – 500	0.05 mm	0.07 mm	DIN 862
4113203	0 – 800	0.05 mm	0.1 mm	DIN 862
4113204	0 – 1000	0.05 mm	0.12 mm	DIN 862
4113205	0 – 1500	0.05 mm	0.18 mm	DIN 862
4113206	0 – 2000	0.05 mm	0.22 mm	DIN 862
