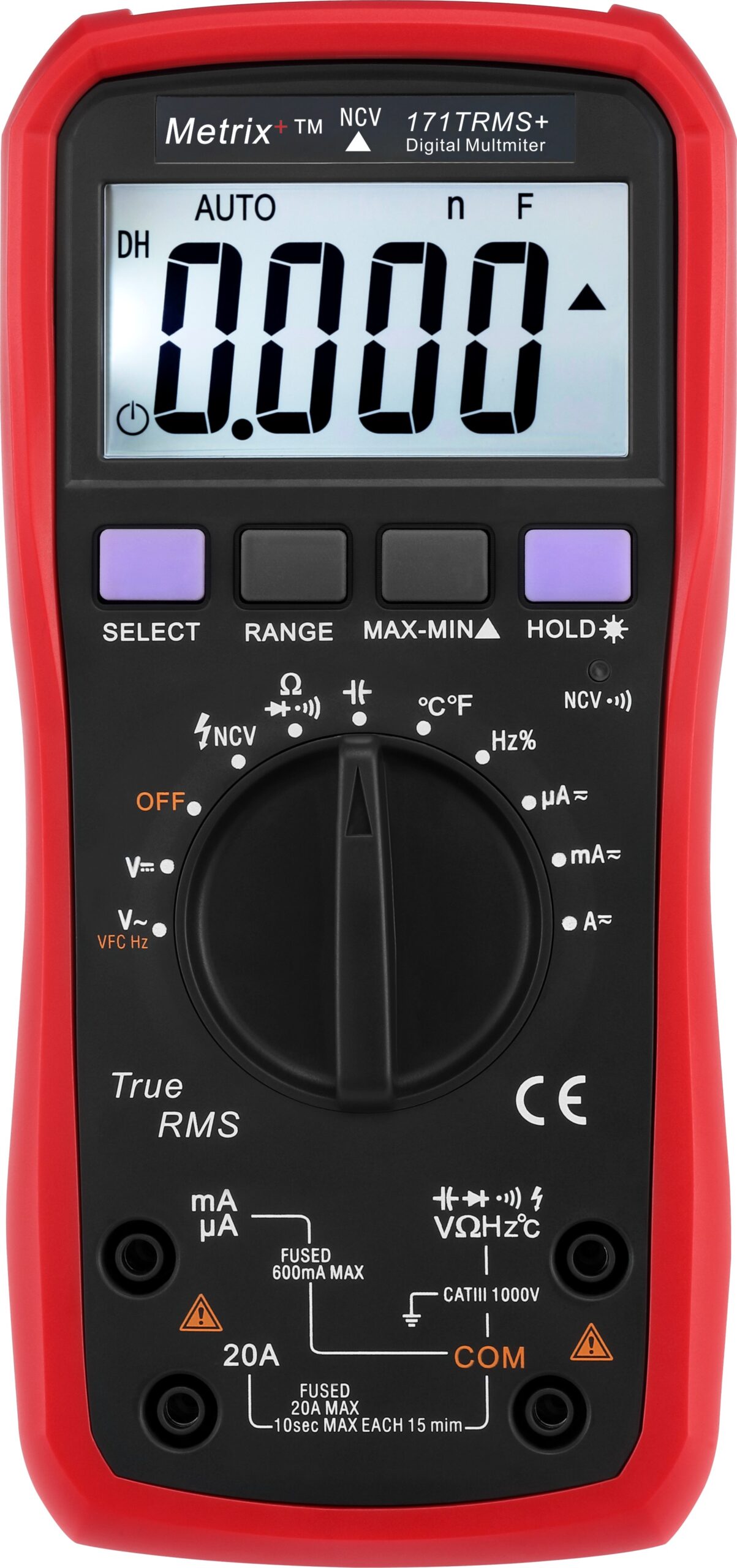

| Model | Metrix+ 171TRMS+ | ||||
| Safety standard | IEC 61010, CAT III 1000V | ||||
| DC Voltage
(Input resistance ~10MΩ) |
Range | Resolution | Accuracy | ||
| 6V ~ 600V | 1mV ~ 0.1V | +(0.5% + 5) | |||
| 1000 V | 1V | +(0.8% + 5) | |||
| AC Voltage(True RMS)
(Input resistance ~10MΩ) |
Range | Resolution | Accuracy | ||
| 6V ~ 600V | 1mV ~ 0.1V | +(1.2% + 5) | |||
| 1000 V | 1V | ||||
| DC Current | Range | Resolution | Accuracy | ||
| 600uA ~ 600mA | 0.1uA ~ 0.1mA | +(1% + 5) | |||
| 6A ~ 20A | 0.001A ~ 0.01A | +(2% + 5) | |||
| AC Current (True RMS) | Range | Resolution | Accuracy | ||
| 600uA ~ 600mA | 0.1uA ~ 0.1mA | +(1.5% + 5) | |||
| 6A ~ 20A | 0.001A ~ 0.01A | +(2% + 10) | |||
| Resistance | Range | Resolution | Accuracy | ||
| 600Ω ~ 6MΩ | 0.1Ω ~ 0.001MΩ | +(0.8% + 5) | |||
| 60MΩ | 0.01MΩ | +(2% + 5) | |||
| Capacitance | Range | Resolution | Accuracy | ||
| 10nF | 0.001nF | +(3% + 20) | |||
| 100nF ~ 1mF | 0.01nF ~ 1uF | +(3% + 5) | |||
| 10mF ~ 100mF | 0.001mF ~ 0.01mF | +(10% + 5) | |||
| Temperature | Range | Resolution | Accuracy | ||
| -50 ~ 400C | 1C | +(1.2% + 4) | |||
| 401 ~ 1000C | 1C | +(1.9% + 15) | |||
| -58F ~ 750F | 1F | +(1.2% + 6) | |||
| 751F ~ 1832F | 1F | +(1.9% + 25) | |||
| Frequency | Range | Resolution | Accuracy | ||
| 10Hz ~ 10MHz | 0.001Hz ~ 0.01MHz | +(0.5% + 3) | |||
| Duty Ratio | Range | Resolution | Accuracy | ||
| 1% ~ 99% | 0.1% | +(0.5% + 3) | |||
| Diode | Display of similar diode positive voltage.
Measuring condition: Positive DC electric current 1mA, reverse DC voltage approximate 3.3V |
||||
| Continuity | When the transited resistance is smaller than about 50Ω,the buzzer beeps. Test condition: Open-circuit voltage is about 1V. | ||||
| Additional functionalities | Diode, continuity, backlight, NCV, low battery indication, auto power off, max, min, relative value, data hold | ||||
| Display | 6000 counts backlit LCD | ||||
| Fuse | uA, mA, Gear fuse F630mA/250V; A Gear Fuse :F20A/250V | ||||
| Operating temperature | 0C ~ 40C, 75% RH max | ||||
| Storage temperature | -10C ~ 50C, 85% RH max | ||||
| Power | 2 X 1.5V AA | ||||
| Size & weight | 189 x 89 x 55mm, approx. 380g(incl. battery) | ||||
| Standard Accessories | Main unit, test leads, temperature probe, user manual, battery | ||||
