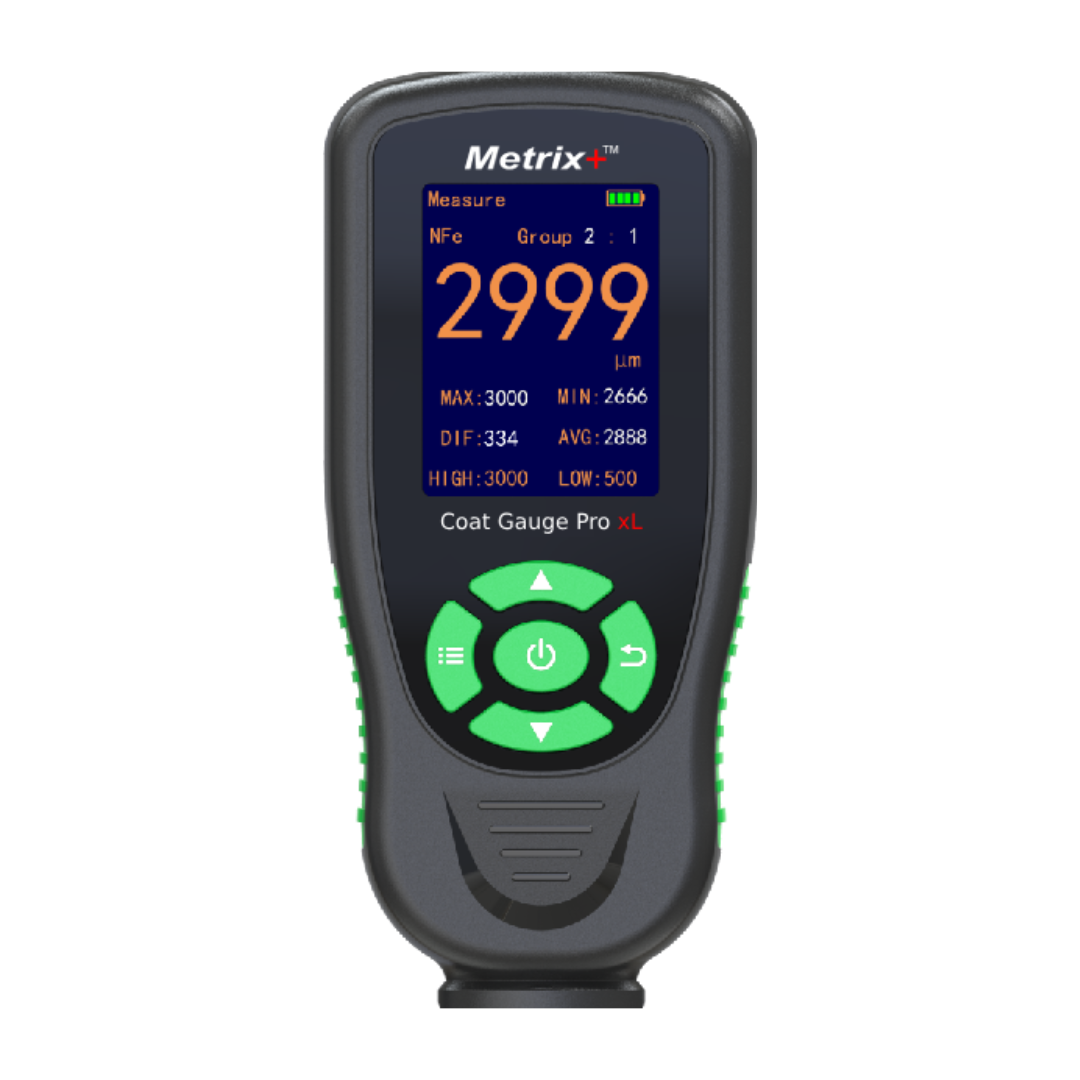

| Model | Metrix+ Coat Gauge Pro xL |
| Measuring principle | Magnetic induction(F) & Eddy Current(NF) |
| Measuring range | 0 – 3000um |
| Accuracy | 0 ~ 1000um: ±(3% + 1um)
>1000um: ±(5% + 1um) |
| Resolution | 0.1um (0~99.9um)
1um (> 100um) |
| Calibration | Zero point and multi-point calibration |
| Storage | 8 data x 10groups storage with statistics of each group |
| Statistics | Max, Min, Diff, Avg |
| Units | um, mils |
| Minimum surface diameter | 5mm(convex)
5mm(concave) |
| Minimum measuring area | 6 x 6mm |
| Minimum thickness of substrate | 0.40mm |
| Power supply | In-built battery with Type C charging |
| Operation environment | Temperature: -20 to 40℃
Humidity: 20 ~ 90% RH |
| Size | 120mm × 55mm × 23mm |
| Weight | 175g |
| Standard Accessories | Coating Thickness Gauge, ‘0’ calibration blocks, standard foils, cloth bag, charging cable, technical manual, hard carry case. |
Measuring principle
This instrument has an in-built probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates(steel/iron) and eddy current principle to measure thickness of non-conductive coatings on non-magnetic substrates(aluminium, copper, brass).
Applications
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and able to work steadily in the laboratory, workshop and outdoors.
