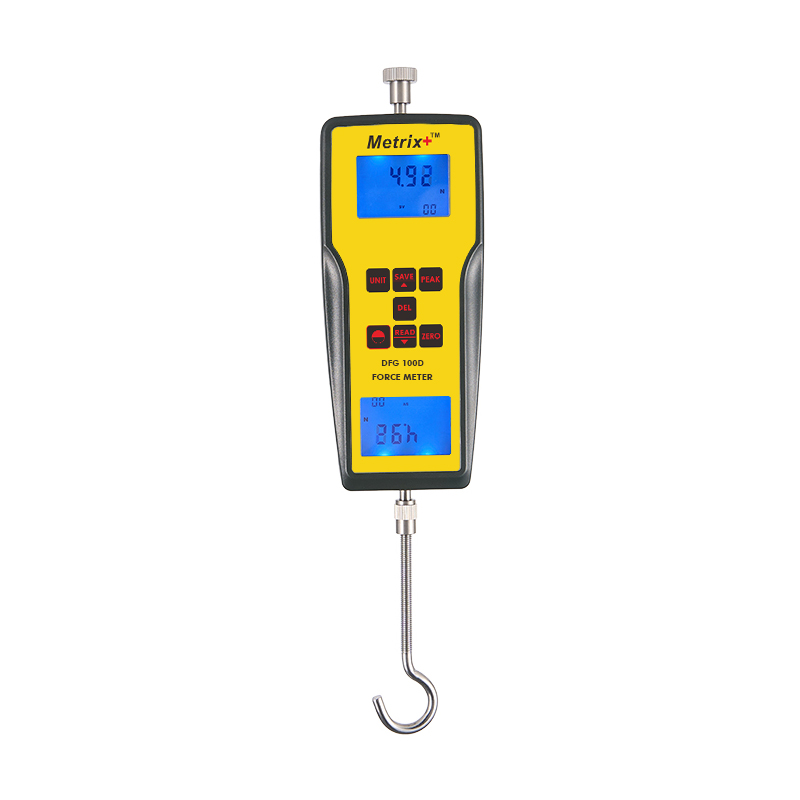

| Model | Metrix+ DFG 1D – DFG 100D | Metrix+ DFG 200D – DFG 1000D |
| Range | DFG 1D – +1kgf/ 9.8N
DFG 2D – +2kgf/ 19.6N DFG 5D – +5kgf/ 49N DFG 10D – +10kgf/ 98N DFG 20D – +20kgf/ 196N DFG 50D – +50kgf/ 490N DFG 100D – +100kgf/ 980N |
DFG 200D – +200kgf/ 1960N
DFG 500D – +500kgf/ 4900N DFG 1000D – +1000kgf/ 9800N |
| Resolution | 0.01kgf/ 0.1N | <100kgf: 0.01kgf, < 1000N: 0.1N
>100kgf: 0.1kgf, > 1000N: 1N |

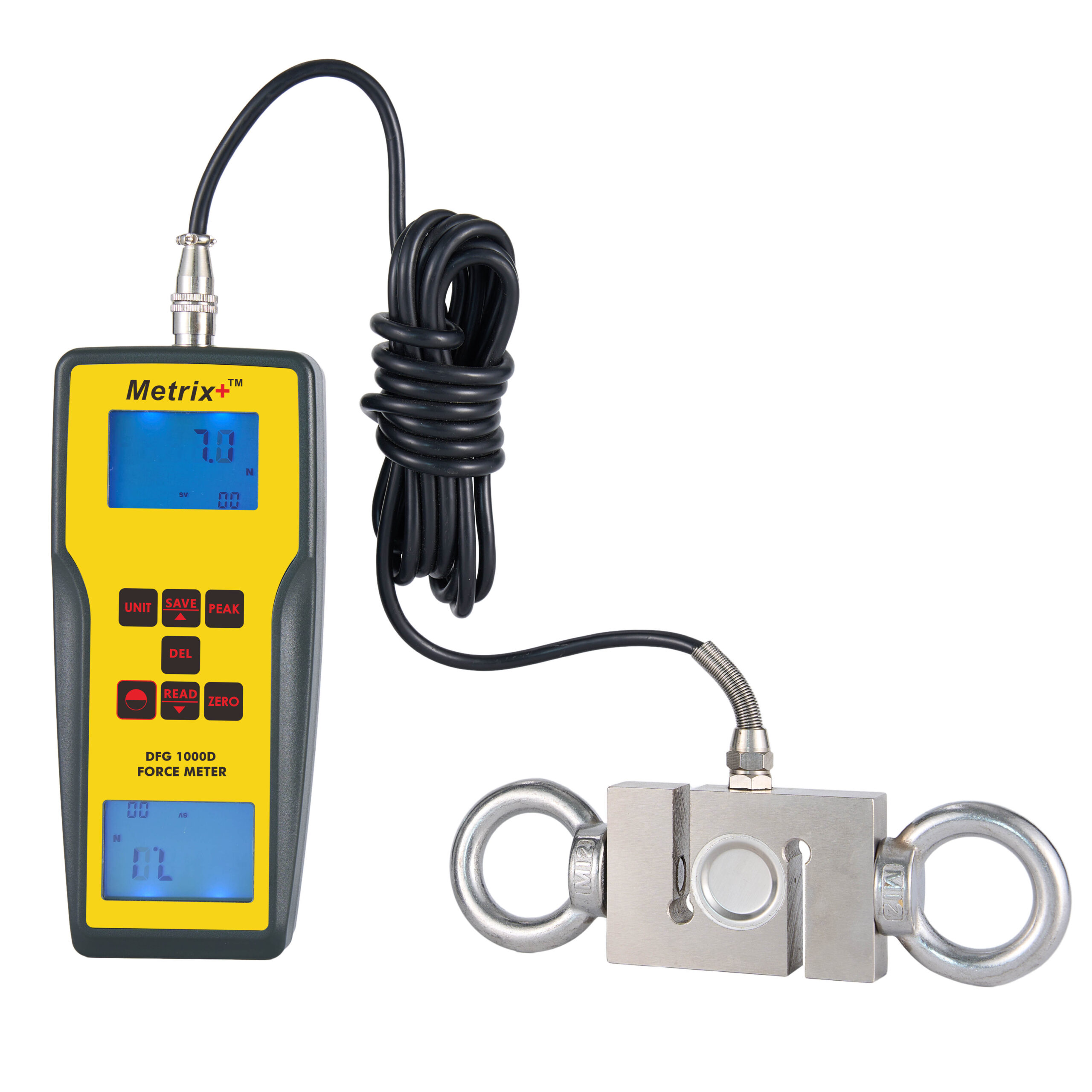

| Measuring accessories | Big pulling hook, flat tip, cone tip, V-shaped groove and wedge tip | Sensor with M12 screw hole, 2 suspension links |
| Accuracy | +0.2% FS +1 digit | |
| Units | Kgf, N, lbf | |
| Display | 2 reversed backlit display for convenient readability | |
| Safe load | 150% FS (buzzer alarm over 110% FS) | |
| Power | 2 x 1.5V AA batteries or 5V DC power supply | |
| Features | Max hold, data storage, backlit display, low battery indication, auto power off | |
| Operating | Temp: 0~40C, Humidity <80% RH | |
| Dimensions | 211 x 80 x 36mm, approx. 390g (800g for suspension links) | |
| Surrounding | No vibrating source or corrosive medium | |
| Std accessories | Main unit, measuring accessories, manual, case | |
| Optional accessories | Data logging: PC interface (USB & software), Bluetooth, lengthening rod(DFG 1D – DFG 100D), Force Gauge stand | |
Force gauges are useful in any application where force measurement is important. It can be a push or pull force, as our meters can measure both, and display in common units. Majorly useful in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and many other industries and consumer applications.
Force gauges use force sensor, or load cells, which converts mechanical force to electrical signal to measure the force applied. The applied force can be a push or pull, tensile or compressive strain, which outputs the relevant electric signal, to estimate force.
