Metrix+ UTM 5A+

Digital Ultrasonic Thickness Meter to measure 1 ~ 300mm with user-friendly menu interface and type C charging.

Features:

User friendly menu operation with dot matrix display
DC 5V/1A type C charging with 2000mAh battery
Memory storage with each set of measured value, sound velocity, max, min and avg value.
Measure material sound velocity using 1 point calibration
Option for silent operation and auto power off for conserving battery.

Buy Now

Download Catalog

Measuring range as per #45 Steel

Model	Metrix+ UTM 5A+
Display	240 x 320 Dot matrix display with adjustable backlight and user friendly menu operation.
Measuring range	1 ~ 300mm (in steel)
Accuracy	H < 10mm, +0.1mm
	H >= 10mm, +(0.1 + 1.0%H)mm
	H = real thickness of sample
Resolution	0.1mm/0.01mm/0.01inch
Sound velocity range	1000 ~ 9999 m/s
Units	mm, inch
Min size of tube	Ф20 * 3mm (steel)
Memory	300 sets of records
Additional functions	Menu operation, single and continuous measurement modes, alarm measurement, sound velocity measurement and probe calibration
Power supply	2000mAh battery with type C charging
Size and weight	140 x 66 x 28.5 mm ; 0.15kg

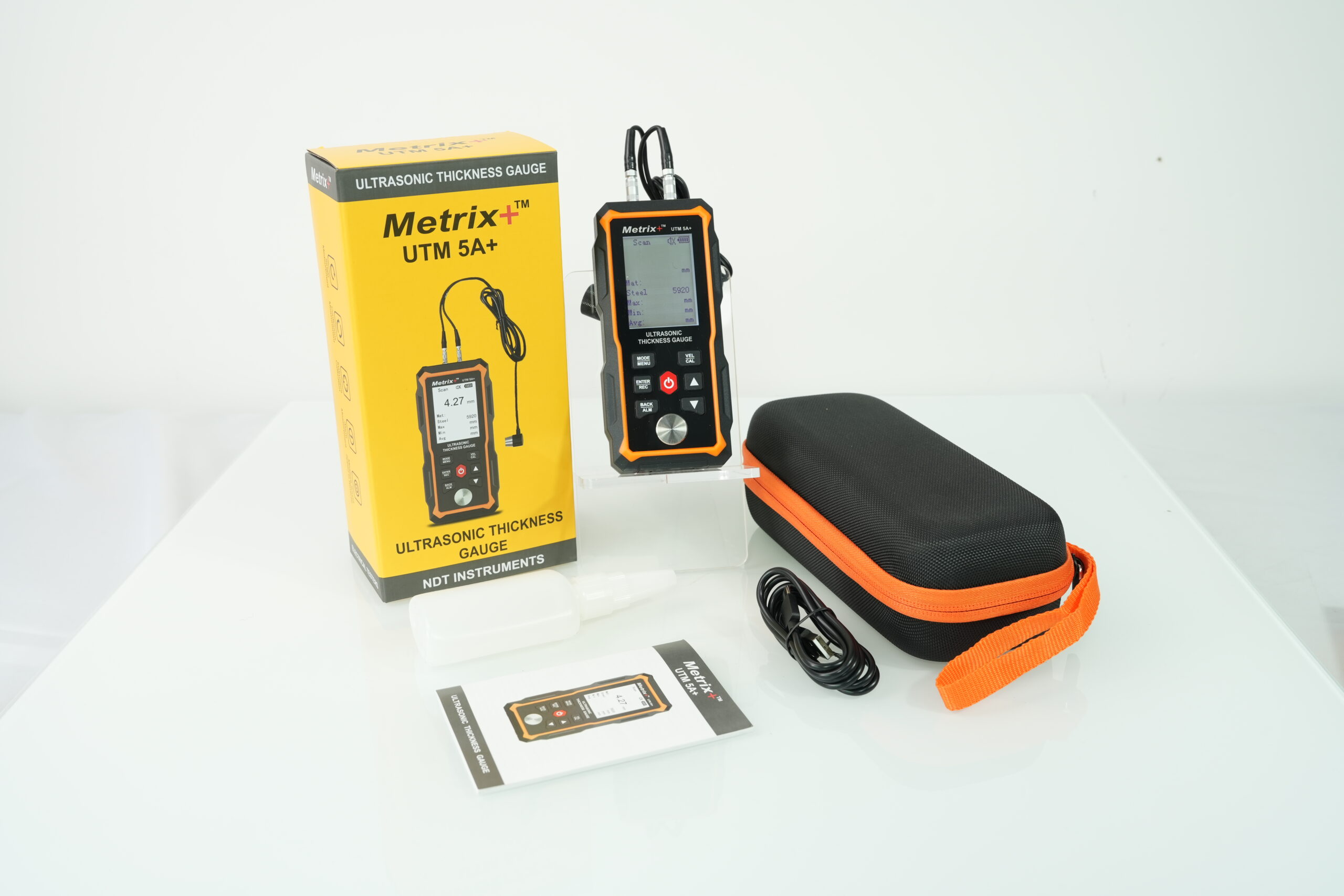

Standard accessories	Main unit, standard probe, coupling agent, manual, charging cable, gift box

Applications:

Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron. It is widely used in almost all kinds of industries.

Measuring principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall.
