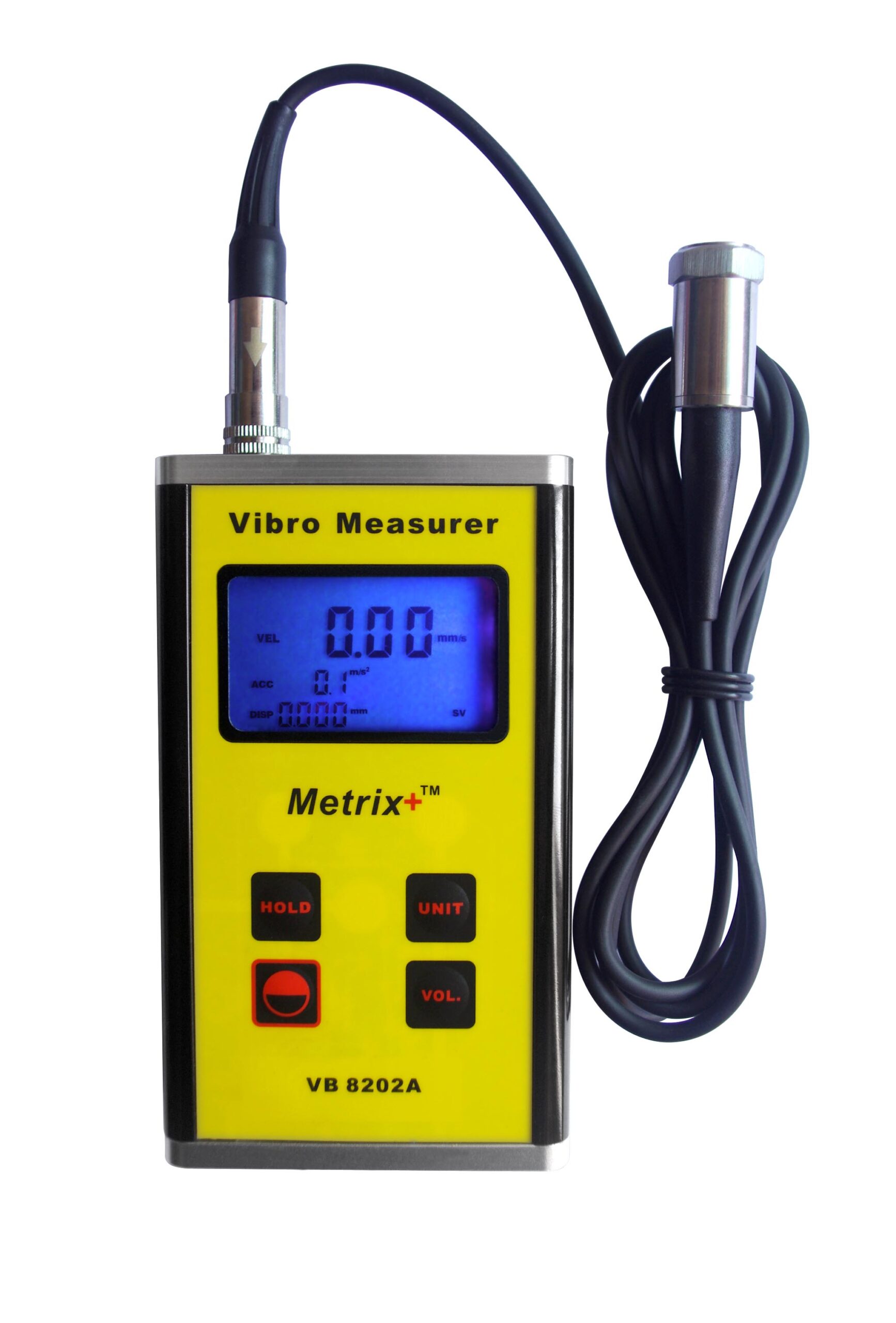

| Model | Metrix+ VB 8202A | |
| Display | 4-digit backlit LCD | |
| Transducer | Piezo electric accelerometer | |
| Velocity | 0.01 ~ 400.0 mm/s true RMS ; 0.000 ~ 16 inch/s | |
| Acceleration | 0.1 ~ 400.0 m/s2 equivalent peak, 0.3 ~ 1312 ft/s2, 0 ~ 40g | |
| Displacement | 0.001 ~ 4.000 mm equivalent peak-peak; 0.04 ~ 160.0 mil | |
| Frequency range for measuring | Acceleration | 10Hz – 10kHz |
| Velocity | 10Hz – 1kHz | |
| Displacement | 10Hz – 1kHz | |
| Accuracy | +5% of reading + 2d | |
| Max hold | Peak Hold | |
| Analog output | AC output 0 ~ 2.0V peak full scale(load resistance above 10k) | |
| Power supply | 1.5V x 2 AA(UM-3) battery | |
| Operating condition | Temperature : 0-50oC ; Humidity : below 95% RH | |
| Dimensions and weight | 130 x 70 x 30mm ; 305g(excluding batteries) | |
| Standard accessories | Powerful rare earth magnet, measurement probe, stinger probe(cone), stinger probe(ball), manual, batteries, carrying case | |
| Optional accessories | PC interface | |
A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance. A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges.
Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing.
