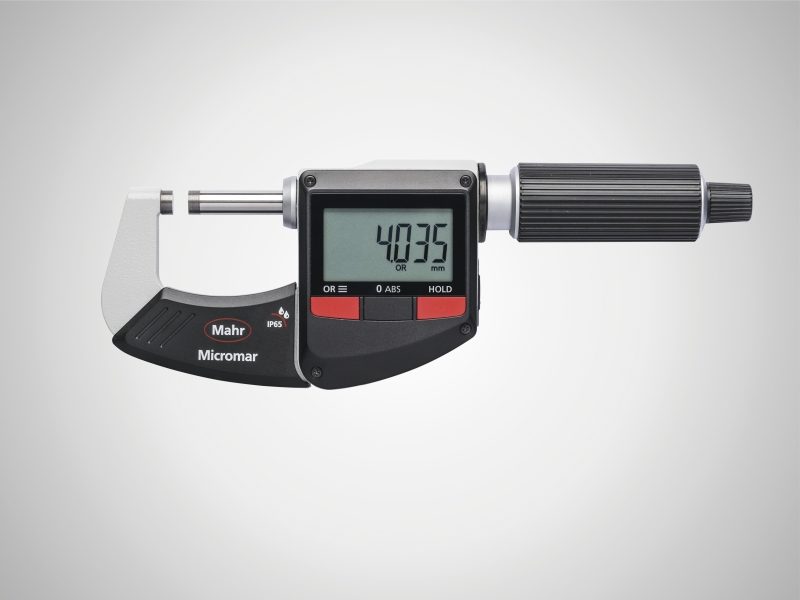

Micromar 40 EWR digital micrometer

MICROMAR 40 EWR DIGITAL MICROMETER

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of 25-50 mm) case Height of Digits 10 mm .

High contrast analog display
Stainless spindle is hardened throughout and ground
Spindle and anvil are carbide tipped
Rapid drive
Ratchet is integrated in the thimble
Lacquered steel frame, heat insulated
Battery life approx. 2 years
IP 65
instruction manual
battery
setting standard (measuring range of 25-50 mm)
case

Height of Digits

10 mm

Technical Data

Order no.	Measuring range mm	Measuring range inches	Resolution mm/inch	Error limit µm	Spindle diameter	Spindle thread pitch_mm	Measuring force (N)
4157011	0 – 25	0 – 1″	0.001 / .00005″	2 µm	6.5 mm	0.5 mm	5 – 10
4157012	25 – 50	1 – 2″	0.001 / .00005″	2 µm	6.5 mm	0.5 mm	5 – 10
4157013	50 – 75	2 – 3″	0.001 / .00005″	3 µm	6.5 mm	0.5 mm	5 – 10
4157014	75 – 100	3 – 4″	0.001 / .00005″	3 µm	6.5 mm	0.5 mm	5 – 10
