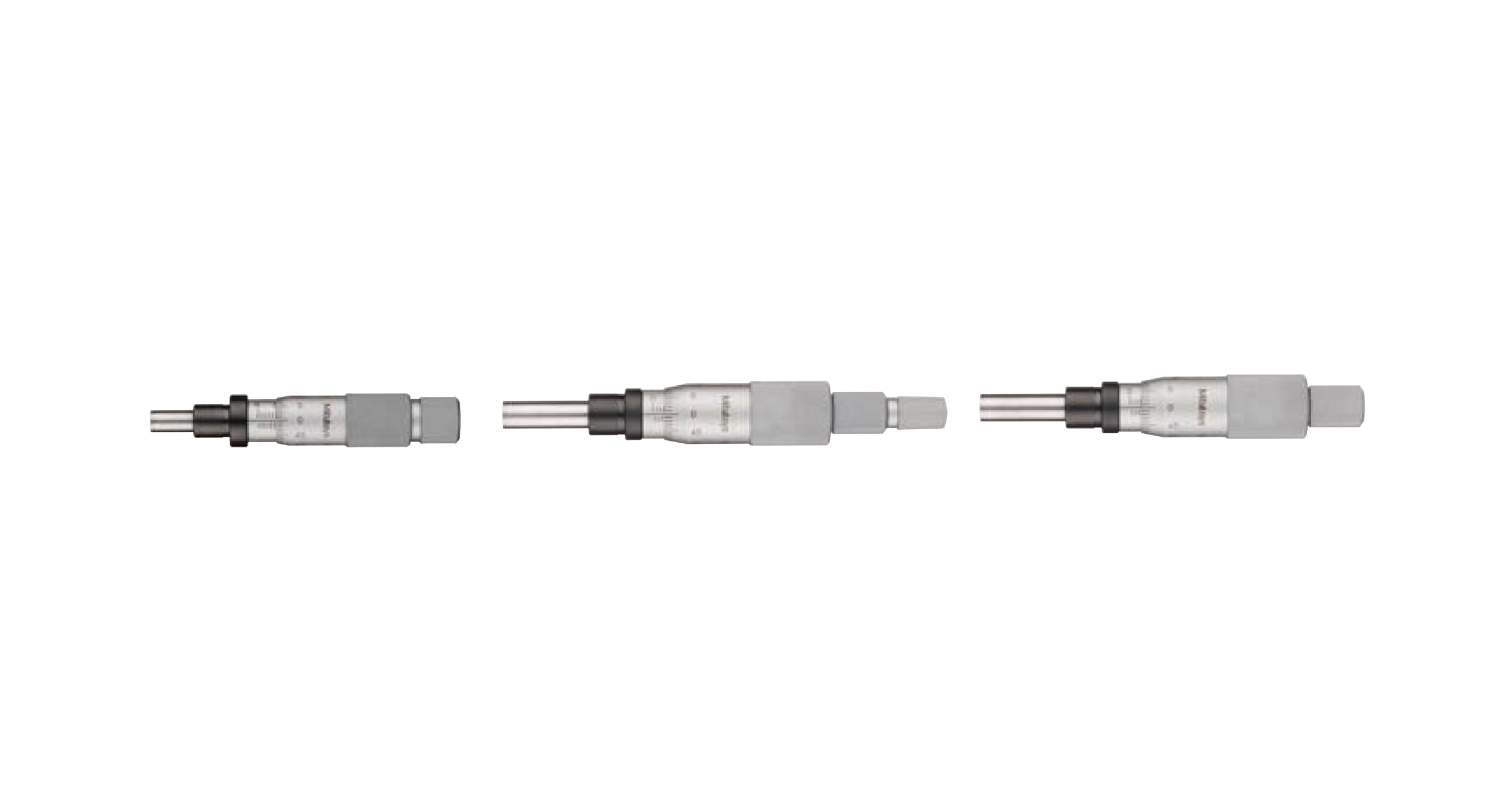

- The spindle translates without rotation.
- Torsion-free feed reduces workpiece deformation and wear.
DIMENSIONS
SPECIFICATIONS
Metric
| Order No. | Range | Graduation | Accuracy | Stem dia. | Stem | Spindle end | Spindle pitch | Graduation features |
|---|---|---|---|---|---|---|---|---|
| 153-101 | 0 – 15mm | 0.01mm |
±3µm |
9.5mm |
Plain |
Flat (carbide tip) |
0.5mm |
Standard |
| 153-201* |
0 – 25mm |
12mm |
||||||
| 153-202* | 0.001mm | w/ vernier (0.001mm) | ||||||
| 153-203 | 0.01mm | Standard | ||||||
| 153-204 | 0.001mm | w/ vernier (0.001mm) |
Inch
| Order No. | Range | Graduation | Accuracy | Stem dia. | Stem | Spindle end | Spindle pitch | Special features |
|---|---|---|---|---|---|---|---|---|
| 153-108** | 0 – .5″ | .001″ |
±.00015″ |
.375″ |
Plain |
Flat (carbide tip) |
.025″ |
w/ vernier (.0001″) |
| 153-205* |
0 – 1″ |
.5″ |
Standard | |||||
| 153-206* | .0001″ | w/ vernier (.0001″) | ||||||
| 153-207 | .001″ | Standard | ||||||
| 153-208 | .0001″ | w/ vernier (.0001″) |
* with ratchet stop ** made-to-order model
