- Resolutions: 0.01mm/0.0005*
- Buttons : zero, mm/inch, on/off, ABS, data preset
- Battery CR2032
- Data Output
- Made of stainless steel
- Optional accesory: data output system (code 7306-20/20B, 7302-SPC1A/SPC1B, 7305-SPC2)

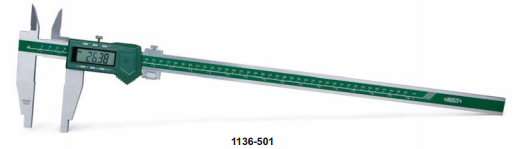

| Code | Range | Accuracy | a | b | c | d | e | L |
| 1136-301 | 0-300mm/0-12″ | 0.05mm | 12 | 38 | 24 | 100 | 20 | 420 |
| 1136-501 | 0-500mm/0-20″ | 0.05mm | 18 | 56 | 24 | 100 | 20 | 675 |
| 1136-502 | 0-500mm/0-20″ | 0.06mm | 18 | 56 | 24 | 150 | 20 | 675 |
*Supplied with manufaturer calibration certificate
