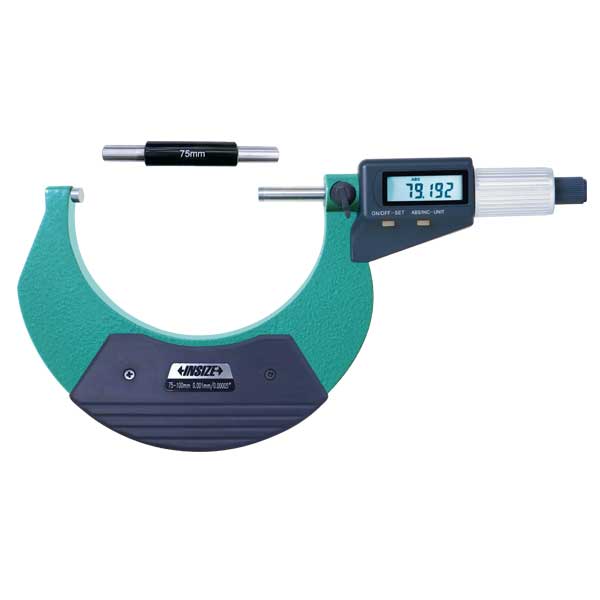

INSIZE DIGITAL OUTSIDE MICROMETER- BASIC TYPE, WITHOUT DATA OUTPUT (CODE – 3109)

Resolution 0.001mm/0.00005" Button function: on/off, set, mm/inch, ABS/INC No data output Carbide measuring faces Friction thimble Supplied with spherical anvil Setting standards are included (except 0-25mm/0-1")

Buy Now

Download Catalog

Individual

Code	Range	Accuracy	L (mm)	a (mm)	b (mm)
3109-25A*	0-25mm/0-1″	±2µm	32	6	28
3109-50A*	25-50mm/1-2″	±2µm	57	8	37
3109-75A*	50-75mm/2-3″	±3µm	82	8	50
3109-100A*	75-100mm/3-4″	±3µm	107	8	61
3109-125A	100-125mm/4-5″	±3µm	132	10	73
3109-150A	125-150mm/5-6″	±3µm	157	10	85
3109-175A	150-175mm/6-7″	±4µm	182	10	104
3109-200A	175-200mm/7-8″	±4µm	207	20	117
3109-225A	200-225mm/8-9″	±4µm	234	20	130
3109-250A	225-250mm/9-10″	±4µm	260	20	143
3109-275A	250-275mm/10-11″	±5µm	285	20	155
3109-300A	275-300mm/11-12″	±5µm	310	20	168

Set

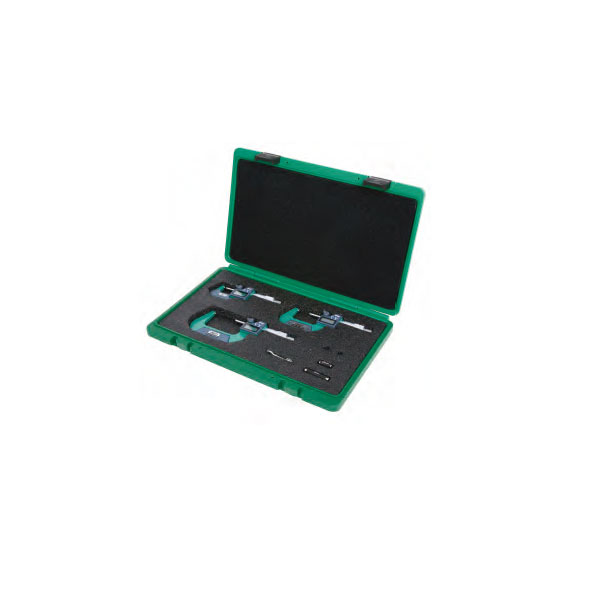

Code	Range	Micrometers included	Packaging
3109-753A*	0-75mm/0-3″	3109-25A, 3109-50A, 3109-75A	blow mould case
3109-1004A*	0-100mm/0-4″	3109-25A, 3109-50A, 3109-75A, 3109-100A	blow mould case
3109-1506A*	0-150mm/0-6″	3109-25A, 3109-50A, 3109-75A, 3109-100A, 3109-125A, 3109-150A	aluminum box
3109-3006A*	0-300mm/0-12″	3109-175A, 3109-200A, 3109-225A, 3109-250A, 3109-275A, 3109-300A	aluminum box
