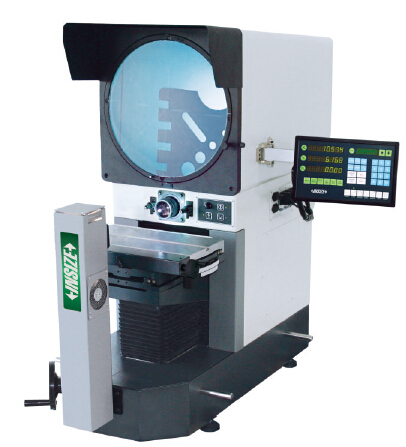

| Code | ISP-W3020 | ISP-A3000E | |||
|---|---|---|---|---|---|
| Edge detector | not included | included | |||
| Lens | magnification | 10X (included) | 20X (optonal) | 50X (included) | 100X (optonal) |
| view field | Ø30 mm | Ø15 mm | Ø6 mm | Ø3 mm | |
| working distance | 77.7 mm | 44.3 mm | 38.4 | 25.3 | |
| Max. workpiece height | – | – | – | – | |
| Magnification accuracy | ±0.08% | ||||
| – | – | ||||
| Projector screen | diamater : Ø300 mm | ||||
| rotation range : 0°~360° , resolution : 1″ or 0.01° | |||||
| refreshce lines : cross-hairs | |||||
| Stage | metal stage size | 400×150 mm | |||
| turning range | ±15° | ||||
| X-Y stage travel | range: 200×100 mm | ||||
| resolution: 0.5 μm | |||||
| Accuracy (4+L/25)μm L the measuring length in mm | |||||
| Y (focus) travel range | 75 mm | ||||
| max. load capacity | 50kg | ||||
| Illumination | contour illumination: 24V/150W halogen lamp, brightness is adjustable | ||||
| surface illumination: 24V/150W halogen lamp | |||||
| Data processing unit | display | X-Z stage travel, screen rotation | |||
| output | RS232C | ||||
| function | measure coordinate of point | measure coordinate of point | |||
| measure coordinate of line | measure coordinate of line | ||||
| measure center coordinate, radius of circle with three points | measure center coordinate, radius of circle with three points | ||||
| measure distance between two objects | measure distance between two objects | ||||
| measure angle with four points or two lines | measure angle with four points or two lines | ||||
| set origin of coordinate | coordinate transform | ||||
| coordinate transform | choose measurement object automatically according to the selective point and display the result | ||||
| set midpoint of coordinate | |||||
| advanced function | – | programming for batch measurements | |||
| Power supply | 110/220V, 50/60 Hz | ||||
| Dimension (L*W*H) | 830x71090x1010 mm | ||||
| Weight | 160 kg | ||||
