MARCATOR - DIAL INDICATOR ANSI/AGD GROUP 3

MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 3

MARCATOR D6K-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

MARCATOR D6K-RC DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Scale diameter (inches)	Dial color
2011050	32I	.025″	.0001”	0-5-0	.010″	±.0001″	ANSI	2.75″	green
2011051	32I-RC	.025″	.0001”	0-10	.010″	±.0001″	ANSI	2.75″	green
2011054	32Q	.025″	.00025″	0-5-0	.010″	±.00025″	ANSI	2.75″	green
2011055	32Q-RC	.025″	.00025″	0-10	.010″	±.00025″	ANSI	2.75″	green
2011226	D1K	.020″	.0001”	0-4-0	.008″	±.0001″	ANSI	2.75″	green
2011227	D1K-RC	.020″	.0001”	0-8	.008″	±.0001″	ANSI	2.75″	green
2011230	D3K	.050″	.00025″	0-10-0	.020″	±.00025″	ANSI	2.75″	green
2011231	D3K-RC	.050″	.00025″	0-20	.020″	±.00025″	ANSI	2.75″	green
2011234	D3Q	.050″	.0005″	0-10-0	.020″	±.0005″	ANSI	2.75″	green
2011235	D3Q-RC	.050″	.0005″	0-20	.020″	±.0005″	ANSI	2.75″	green
2011238	D3W	.050″	.001″	0-10-0	.020″	±.001″	ANSI	2.75″	green
2011239	D3W-RC	.050″	.001″	0-20	.020″	±.001″	ANSI	2.75″	green
2011242	D5G	.075″	.00025″	0-15-0	.030″	±.00025″	ANSI	2.75″	green
2011243	D5G-RC	.075″	.00025″	0-30	.030″	±.00025″	ANSI	2.75″	green
2011246	D5M	.075″	.0005″	0-15-0	.030″	±.0005″	ANSI	2.75″	green
2011247	D5M-RC	.075″	.0005″	0-30	.030″	±.0005″	ANSI	2.75″	green
2011250	D6K	.100″	.0005″	0-20-0	.040″	±.0005″	ANSI	2.75″	green
2011251	D6K-RC	.100″	.0005″	0-40	.040″	±.0005″	ANSI	2.75″	green
2011254	D6Q	.100″	.001″	0-20-0	.040″	±.001″	ANSI	2.75″	green
2011255	D6Q-RC	.100″	.001″	0-40	.040″	±.001″	ANSI	2.75″	green

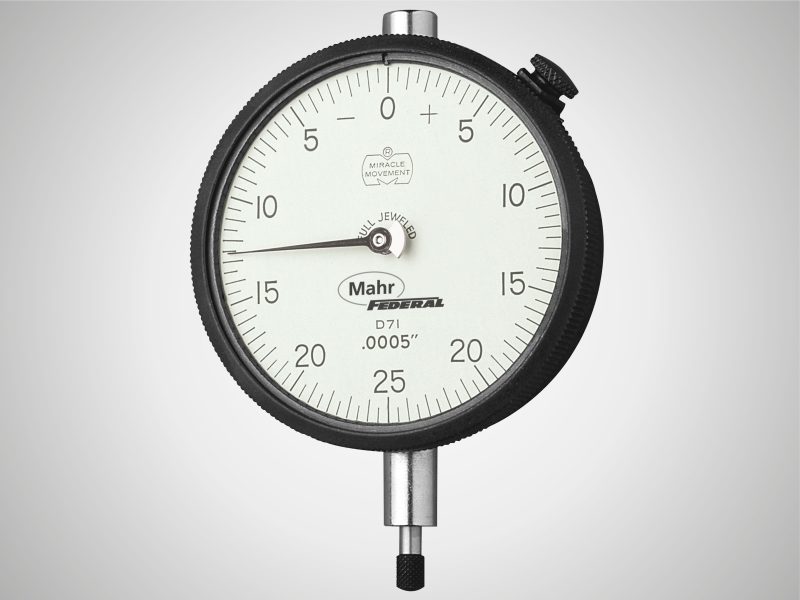

2011258	D7I	.125″	.0005″	0-25-0	.050″	±.0005″	ANSI	2.75″	green
2011259	D7I-RC	.125″	.0005″	0-50	.050″	±.0005″	ANSI	2.75″	green
2011262	D7O	.125″	.001″	0-25-0	.050″	±.001″	ANSI	2.75″	green
2011263	D7O-RC	.125″	.001″	0-50	.050″	±.001″	ANSI	2.75″	green
2011266	D8I	.250″	.001″	0-50-0	.100″	±.001″	ANSI	2.75″	green
2011267	D8I-RC	.250″	.001″	0-100	.100″	±.001″	ANSI	2.75″	green

MARCATOR Q6I-RC DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2011867	Q1I	0.5 mm	0.002 mm	0-10-0	0.2 mm	ANSI	70 mm	yellow
2011868	Q1I-RC	0.5 mm	0.002 mm	0-20	0.2 mm	ANSI	70 mm	yellow
2011871	Q3I	1.25 mm	0.005 mm	0-25-0	0.5 mm	ANSI	70 mm	yellow
2011872	Q3I-RC	1.25 mm	0.005 mm	0-50	0.5 mm	ANSI	70 mm	yellow
2011875	Q6I	2.5 mm	0.01 mm	0-50-0	1 mm	ANSI	70 mm	yellow
2011876	Q6I-RC	2.5 mm	0.01 mm	0-100	1 mm	ANSI	70 mm	yellow
2011879	Q8I	5 mm	0.02 mm	0-100-0	2 mm	ANSI	70 mm	yellow
2011880	Q8I-RC	5 mm	0.02 mm	0-200	2 mm	ANSI	70 mm	yellow
