MAXΜM III - INDUCTIVE DIGITAL COMPARATOR

MAXΜM III – INDUCTIVE DIGITAL COMPARATOR

MILLIMESS MAXΜM III INDUCTIVE DIGITAL COMPARATOR Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores Interchangeable dials Inductive absolute measuring system Metal cast housing with robust buttons Technical data Order no. Product type Measuring range mm Measuring range

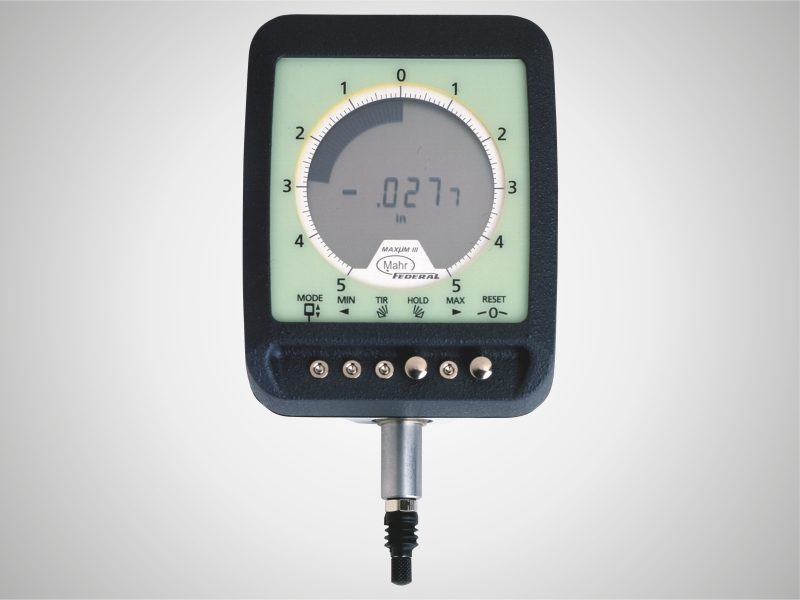

MILLIMESS MAXΜM III INDUCTIVE DIGITAL COMPARATOR

Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores
Interchangeable dials
Inductive absolute measuring system
Metal cast housing with robust buttons

Inductive digital comparator

Technical data

Order no.	Product type	Measuring range mm	Measuring range inch	Measuring range 1 _beginning_ mm	Measuring range 1 _end mm	Measuring range 1 _beginning_inch	Measuring range 1 _end inch	Resolution	Resolution	Standard	Minimum measuring force	Maximum measuring force	Range of analog display mm	Range of analog display inches	IP protection category
2033101	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033102	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033103	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033104	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033105	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033106	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033107	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033108	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54

Functions

RESET (set display to zero)
mm/inch
Reversal of counting direction
RANGE (switch the measuring range and resolution)
ABS (reference to the electrical zero point)
TOL (enter tolerance limit values)
MAX/MIN memory for searching the reversal point
TIR (MAX-MIN) for testing flatness and concentricity
HOLD (storage of measured values)

MILLIMESS MAXΜM III INDUCTIVE DIGITAL COMPARATOR

Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores
Interchangeable dials
Inductive absolute measuring system
Metal cast housing with robust buttons

Inductive digital comparator

Technical data

Order no.	Product type	Measuring range mm	Measuring range inch	Measuring range 1 _beginning_ mm	Measuring range 1 _end mm	Measuring range 1 _beginning_inch	Measuring range 1 _end inch	Resolution	Resolution	Standard	Minimum measuring force	Maximum measuring force	Range of analog display mm	Range of analog display inches	IP protection category
2033111	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033112	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033113	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033114	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033115	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033116	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033117	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033118	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033119	Maxµm III		± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N			IP 54

Functions

RESET (set display to zero)
mm/inch
Reversal of counting direction
RANGE (switch the measuring range and resolution)
ABS (reference to the electrical zero point)
TOL (enter tolerance limit values)
MAX/MIN memory for searching the reversal point
TIR (MAX-MIN) for testing flatness and concentricity
HOLD (storage of measured values)

MILLIMESS MAXΜM III INDUCTIVE DIGITAL COMPARATOR

Large, high contrast digital, analog and fan display for better readability while testing flatness and concentricity as well as for searching the reversal point in bores
Interchangeable dials
Inductive absolute measuring system
Metal cast housing with robust buttons

Technical data

Order no.	Product type	Measuring range mm	Measuring range inch	Measuring range 1 _beginning_ mm	Measuring range 1 _end mm	Measuring range 1 _beginning_inch	Measuring range 1 _end inch	Resolution	Resolution	Standard	Minimum measuring force	Maximum measuring force	Range of analog display mm	Range of analog display inches	IP protection category
2033121	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033122	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033123	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033124	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033125	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033126	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
2033127	Maxµm III	±1	± .040″	-0.199 mm	0.199 mm	-0.02 inch	0.02 inch	0.001 mm / 0.001 mm / 0.005 mm	0 inch / 0 inch / 0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 5 / ± 25 / ± 50	± .005″ / ± .025″ / ± .05″	IP 54
2033128	Maxµm III	±1.99	± .100″					0.001 mm / 0.005 mm	0 inch / 0.001 inch	Factory standard	0.8 N	1.1 N	± 25 / ± 50	± .025″ / ± .05″	IP 54
