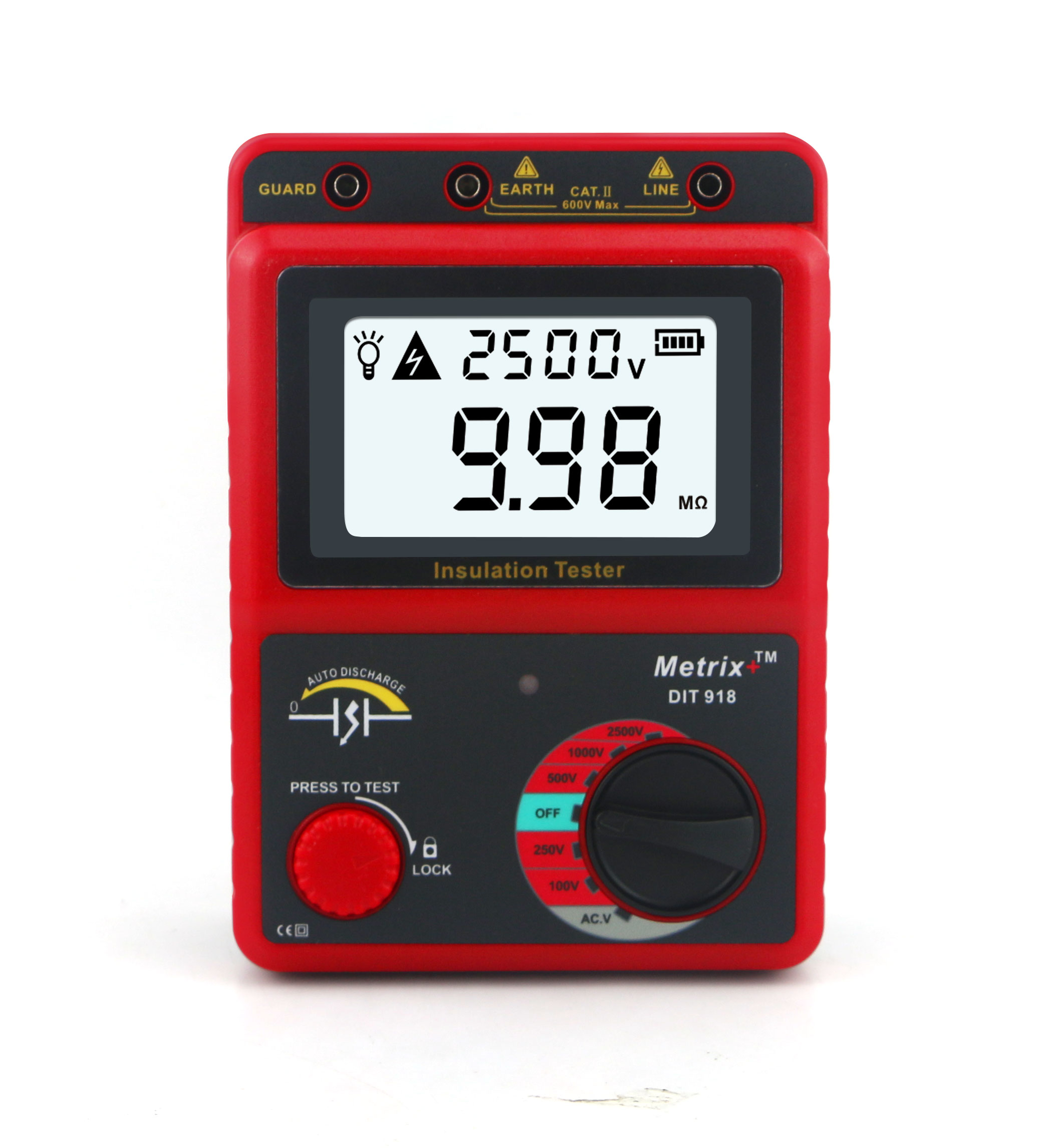

| Model | Metrix+ DIT 918 |
| Safety standard | IEC 61010-1 CAT III 600V |
| IEC 61010-031(Test wire) Pollution Level 2 | |
| Test range | 100V: 0 ~ 199.9MΩ, 250V: 0 ~ 499.9MΩ, 500V: 0 ~ 999.9MΩ, 1000V: 0 ~ 19.9GΩ, 2500V: 0 ~ 49.9GΩ |
| Accuracy | ±5%rdg ± 5dgt |
| DC/AC Voltage | 30 ~ 600V |
| Resolution | 1.0V |
| Overload Protection | AC 1200V/10sec |
| Withstand Voltage | AC 8320V/5sec |
| Insulated Impedance | 1000MΩ |
| Max. short circuit current | 1.3mA |
| Additional functionalities | Backlight, auto discharge, auto power off, live warning with audio sound, low voltage indication |
| Operating temperature | 0 ~ 50C |
| Storage temperature | -20 ~ 70C |
| Power | 6 x AA batteries |
| Size & weight | 125.4 x 174.6 x 69 mm, 550g |
| Standard accessories | Main unit, test wires, alligator clips, carry case, user manual, batteries |
