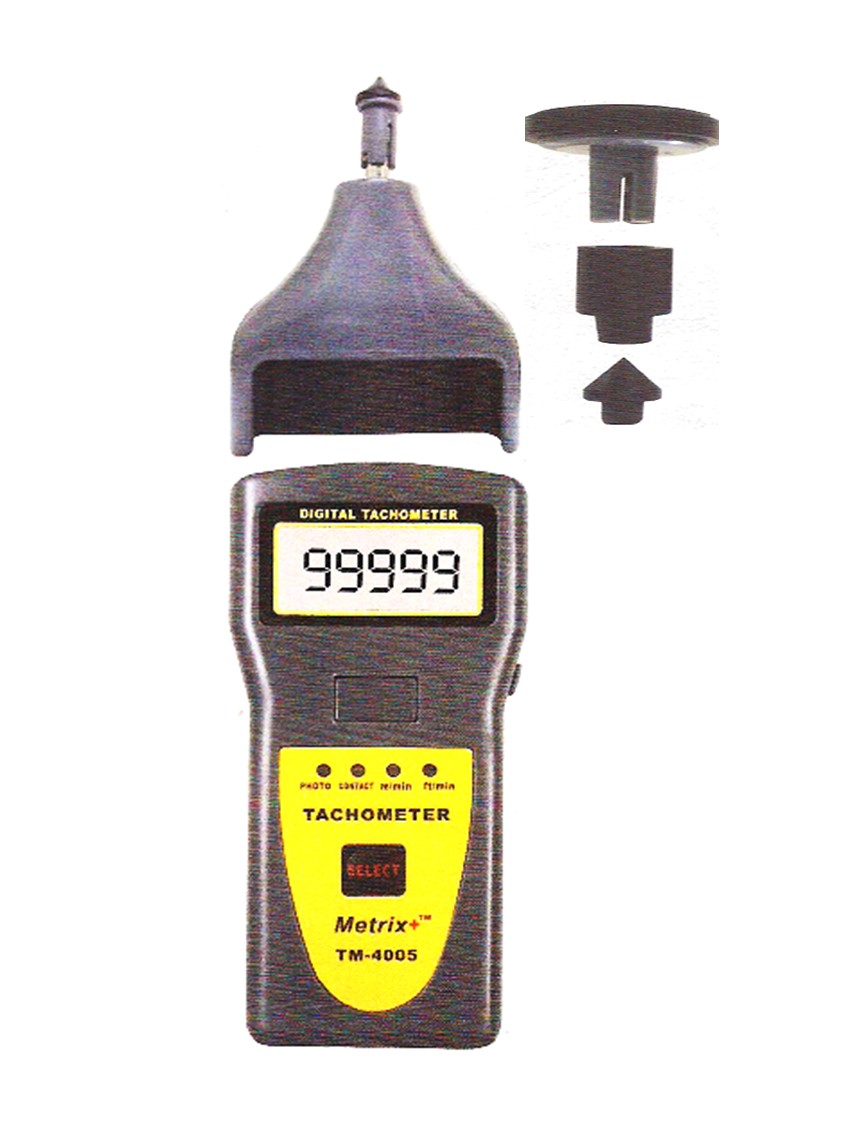

Metrix+ TM 4005

Combine, contact type and non-contact photo tachometer with measuring range upto 99999 RPM and surface speed upto 1,999.9 m/min.

Features:

Photo - Contact Type
Max and Min Data Function
Surface speed measurement
Low Battery Indication

Buy Now

Download Catalog

Model	Metrix+ TM 4005
Type	Photo – Contact Tachometer
Range	2.5 ~ 99,999rpm Photo
	2.5-19,999rpm Contact
	0.05 ~ 1999.9m/min
	0.2 ~ 6560Ft/min
Resolution	0.1rpm, 1rpm Photo
	0.1rpm, 1rpm Contact
	0.01m/min, 0.1m/min
	1Ft/min
Accuracy	+ (0.05% + 1word)
Sampling frequency	0.8 sec
Operating Temperature	0 ~ 50°
Storage Temperature	-20 ~ 60°C
Power supply	AA x 4 battery
Dimension	215 x 74 x 32mm
Net Weight	280g
Packing	Gift Box

Applications

This meter can be used to measure RPM(rotations per minute) of rotating objects, in a contact, convenient way. Useful in industrial, lab and consumer applications.
