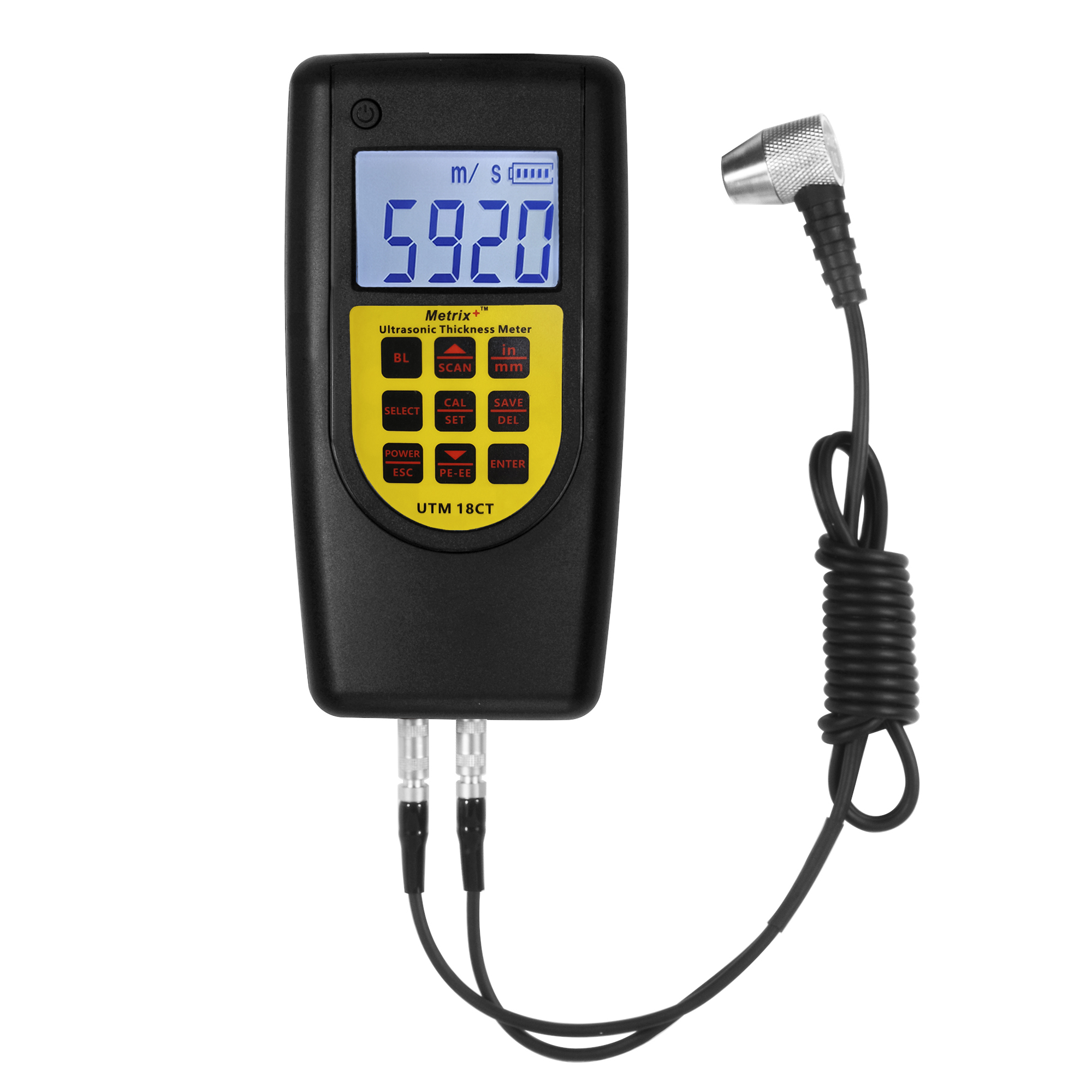

Metrix+ UTM 18CT

Digital Ultrasonic Thickness Meter with multi-mode to measure 0.65 ~ 600mm(#45 Steel) in normal mode and 3 ~ 60mm in through coating (echo-echo) mode with data storage and backlit LCD.

Features:

Multi-mode with Pulse-Echo mode for thickness measurement, and Echo-Echo mode for eliminating paint or coating thickness, which is also useful to measure coating thickness on concrete, ceramics, plastics, composites, etc.
Zero, sound velocity and two-point calibration
Data storage and recall
Single and continuous measurement(scanning) modes
Metric(mm) and imperial(inch) measurement units
Inbuilt self-calibrator and simple calibration function.
Automatic power off.

Download Catalog

Model	*Metrix+ UTM 18CT*
Display	Backlit LCD
Measuring range	With standard probe: Pulse-Echo mode: 0.65 – 600mm (Steel) Echo-Echo mode: 3 ~ 60mm (Steel)
Accuracy	±(0.5%n + 0.05)mm, depending upon material and conditions
Resolution	0.1mm / 0.01mm
Sound Velocity	1000 ~ 9999 m/s
Memory	Upto 20 files (99 values for each file)
Measurement frequency	4 times per second for single point mode 10 times per second for continuous measurement(scan) mode
Operating conditions	Temperature: 0 ~ 40^oC; Humidity < 85% RH
Power	1.5V x 4 AAA batteries
Size & weight	142mm × 72mm × 34mm, 175g(excluding battery)
Standard Accessories	Main unit, standard probe (PT5: 8mm/5MHz), couplant, user manual & hard carry case
Optional accessories	PC interface, Bluetooth
Optional probes	1. PT2.5 – 10mm/2.5MHz for plastics and cast iron 2. PT7 – 6mm/7MHz for thin and small steel parts 3. PT HT5 – 12mm/5MHz ceramic probe for high temperature measurement on steel surfaces 4. PT5 – 8mm/5MHz standard default probe 5. Calibration step block

Applications:

Based on ultrasonic measuring principle, thickness of metal and other materials can be measured. So, it can monitor the degree of thinning, caused by corrosion, of all kinds of tubes and pressure vessels during working process, and accurately measure the thickness of all kinds of plates and processing parts. This gauge is applied widely in fields, such as petroleum, chemical, metallurgical, shipbuilding, aerospace industry, etc.

Measuring principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall. In Pulse-Echo mode it measures the time taken for the pulse to travel from backwall, consequently measuring the total thickness of the sample. In Echo-Echo mode, it measures the time taken between the first echo and the next, thereby eliminating paint or coating thickness and measuring total thickness minus the coating thickness, hence, called through coating thickness.
