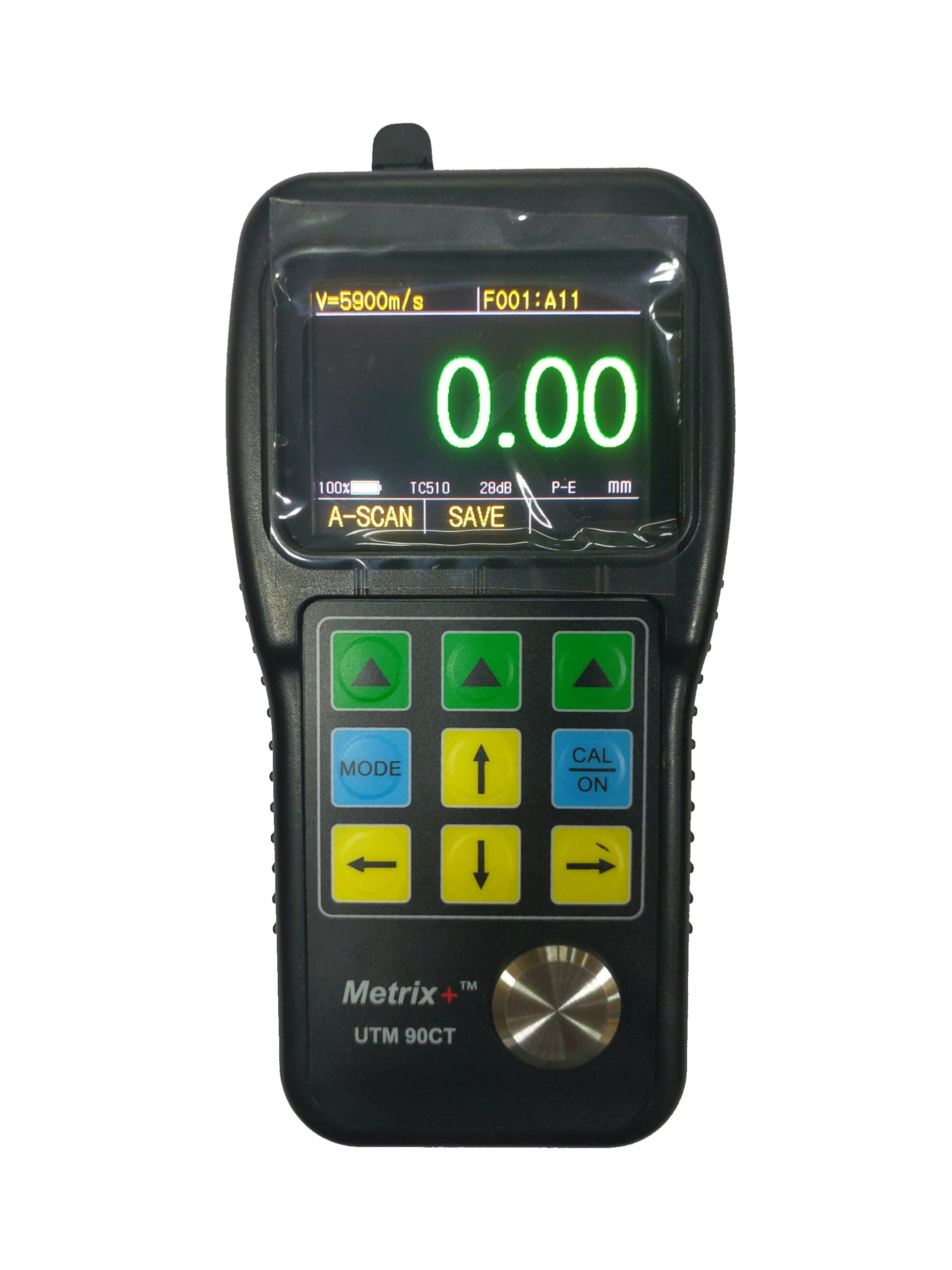

Metrix+ UTM 90CT

Ultrasonic Thickness Gauge with through coating measurement and A-scan and B-scan functions.

Features:

Multi-mode with Pulse-Echo for thickness and Echo-Echo for through coating measurements.
A scan & B scan functions for in depth inspection of material properties.
Difference and reduction rate display.
Max, min and current values can be displayed simultaneously.
Selectable update rate.
Data storage and recall.

Buy Now

Download Catalog

Model	Metrix+ UTM 90CT
Display	2.4” color OLED with 320 x 240 pixel and contrast of 10000:1
Measuring range	Pulse-Echo Mode: 1.2 ~ 200mm(in Steel)
	Echo-Echo Mode: 3 ~ 50mm Through-Coating measurement
Units	mm/ inch
Resolution	Selectable: 0.01mm/inch, 0.1mm/inch
Sound Velocity	500 ~ 9999 m/s
Display modes	Normal, min/max, difference/ reduction rate(%), A-scan, B-scan
Rectify mode	RF+, RF-, HALF+, HALF-, FULL
V-path correction	Automatic
Update rate	Selectable 4Hz, 8Hz, 16Hz
Alarm setting	Min and max alarms with dynamic waveform color change on alarm
Power	2 x AA batteries
Operating time	approx. 40hrs
Power off	Selectable as always ON, or Auto OFF on 5/ 10/ 20 mins of inactivity
Operating temperature	-10°C ~ 50°C
Dimensions	156 x 75 x 38 mm (H x L x B), weight 270g (incl. batteries)
Standard accessories	Main unit, probe, couplant, manual, batteries, carry case

Applications:

Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.Having through coating measurement capability, it can used to measure concrete coating thickness It is widely used in almost all kinds of industries.

Measuring principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall.
