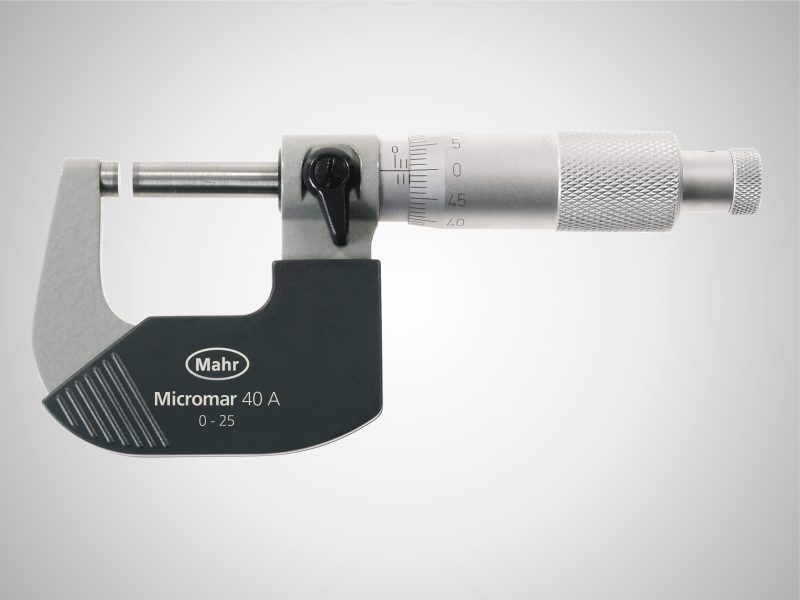

MICROMAR 40 A MICROMETER

Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device setting standard (measuring range of 25-50 mm) instruction manual case Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle diameter

Operating and display units with satin chrome finish
Hard lacquered steel frame
Spindle and anvil made of hardened steel, carbide tipped
Heat insulators
Rapid drive with integrated ratchet
Locking device
setting standard (measuring range of 25-50 mm)
instruction manual
case

40 A Micrometer

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Spindle diameter	Spindle thread pitch_mm
4134000	0 – 25	0,01	4 µm	6.5 mm	0.5 mm
4134001	25 – 50	0,01	4 µm	6.5 mm	0.5 mm
4134002	50 – 75	0,01	5 µm	6.5 mm	0.5 mm
4134003	75 – 100	0,01	5 µm	6.5 mm	0.5 mm
4134004	100 – 125	0,01	6 µm	6.5 mm	0.5 mm
4134005	125 – 150	0,01	6 µm	6.5 mm	0.5 mm
4134006	150 – 175	0,01	7 µm	6.5 mm	0.5 mm
4134007	175 – 200	0,01	7 µm	6.5 mm	0.5 mm
