• Attachment for interrupted surface measurement
    Best suited for measurement of the flat surface of a workpiece that has partial indentations and steps and that is hard to set the drive unit. Combination use with the magnet type specimen holder (Option: No.12AAA910) further improves the ease of operation.

Accessories of Surftest

  • Attachment for measuring inside bores and holes
    Greatly facilitates measurement of internal wall surfaces of, for example, cylinder-block bores.
    • Applicable diameter: ø75 to 95mm
    • Accessible depth: 30 to 135mm

Accessories of Surftest

Digimatic mini-processor

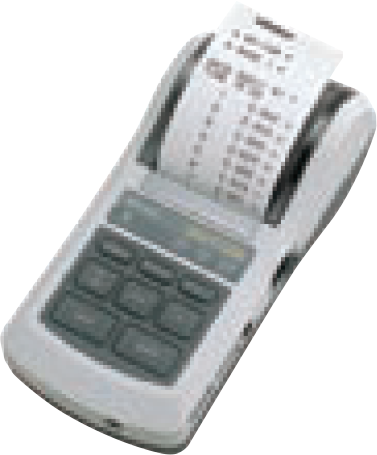

It is possible to process Digimatic data output from the Surftest SJ series with the DP-1VR. This compact, hand-held device can provide printouts of measurement data and various statistical analyses results such as histograms, D-charts, and X bar R control charts.

  • Digimatic mini-processor DP-1VR No.264-504
  • Digimatic connecting cable
    Connecting cable 1m: No.936937
    Connecting cable 2m: No.965014
    Note: The symbol ʻµmʼ is not printable, but measurement results can still be printed out without setting the measurement unit.

Accessories of Surftest

Introduction of the specified communication program for Surftest SJ-210/310/410 series, 500, SV-2100

System environments supporting the operation

• OS: Windows XP-SP3, Windows Vista, Windows 7 , Windows 8

• Spreadsheet software: Microsoft Excel 2000, Microsoft Excel 2007, Microsoft Excel 2002, Microsoft Excel 2010, Microsoft Excel 2003, Microsoft Excel 2013.

Optional USB cable is required.

  • USB communication cable for SJ-210: No.12AAL068
  • USB communication cable for SJ-310/410*: No.12AAD510
  • USB communication cable for SJ-500/SV-2100*: No.12AAH490
    *Equivalent to Type AB for the communication between the device and host

Input tool for measurement data input units
Using this tool, measurement data from the Surftest SJ series can be instantly imported into commercially-available spreadsheet software through a USB or PS-2 keyboard socket on a PC. Refer to the Catalog (No.4279) for more details

  • Input tool
    ・USB keyboard signal conversion model
    IT-012U: No.264-012-10
    USB-ITN-D (Direct type): No.06ADV380D
  • Digimatic connecting cable
    Connecting cable 1m: No.936937
    Connecting cable 2m: No.965014

Accessories of Surftest

* Refer to pages A-7 to A-9 for details of U-WAVE.
* Refer to pages A-5 to A-6 for details of the input tool

Setting attachments*

Improves measurement efficiency by allowing the setup of multiple workpieces of the same type and the positioning of hard-to-access features of a workpiece.
*Not available for the transverse tracing drive unit

  • Attachment for the measurement of cylinder shaft direction
    The V-width is adjustable to the cylinder diameter, facilitating axial measurement of a wide range of cylinder diameters.
    • Applicable diameter: ø5 to 150mm
    Accessories of Surftest

Printer for SJ-210
Assessed profiles and calculation results and curves can be printed out by connecting the SJ-210-dedicated printer, which is palm sized (W×D×H: 93×125×70mm) and can run on an internal battery.

  • Power supply can be selected. (AC adapter or battery pack)
  • Printable items: Measurement conditions, calculation results, assessed profile, bearing area curve (BAC), amplitude distribution curve (ADC), GO/NG judgment
  • Printer for SJ-210
    (Provided with the connecting cable and printer paper (×6 packs))
  • Printer paper
    Standard type (x5 packs): No.270732
    High-durability type (x5 packs): No.12AAA876

Surface Roughness / Contour Analysis Software FORMTRACEPAK
Measurement data from the SJ-210/310/410 series can be imported into FORMTRACEPAK running on a desktop type surface roughness tester via an optional memory card to perform a more advanced analysis if required.
