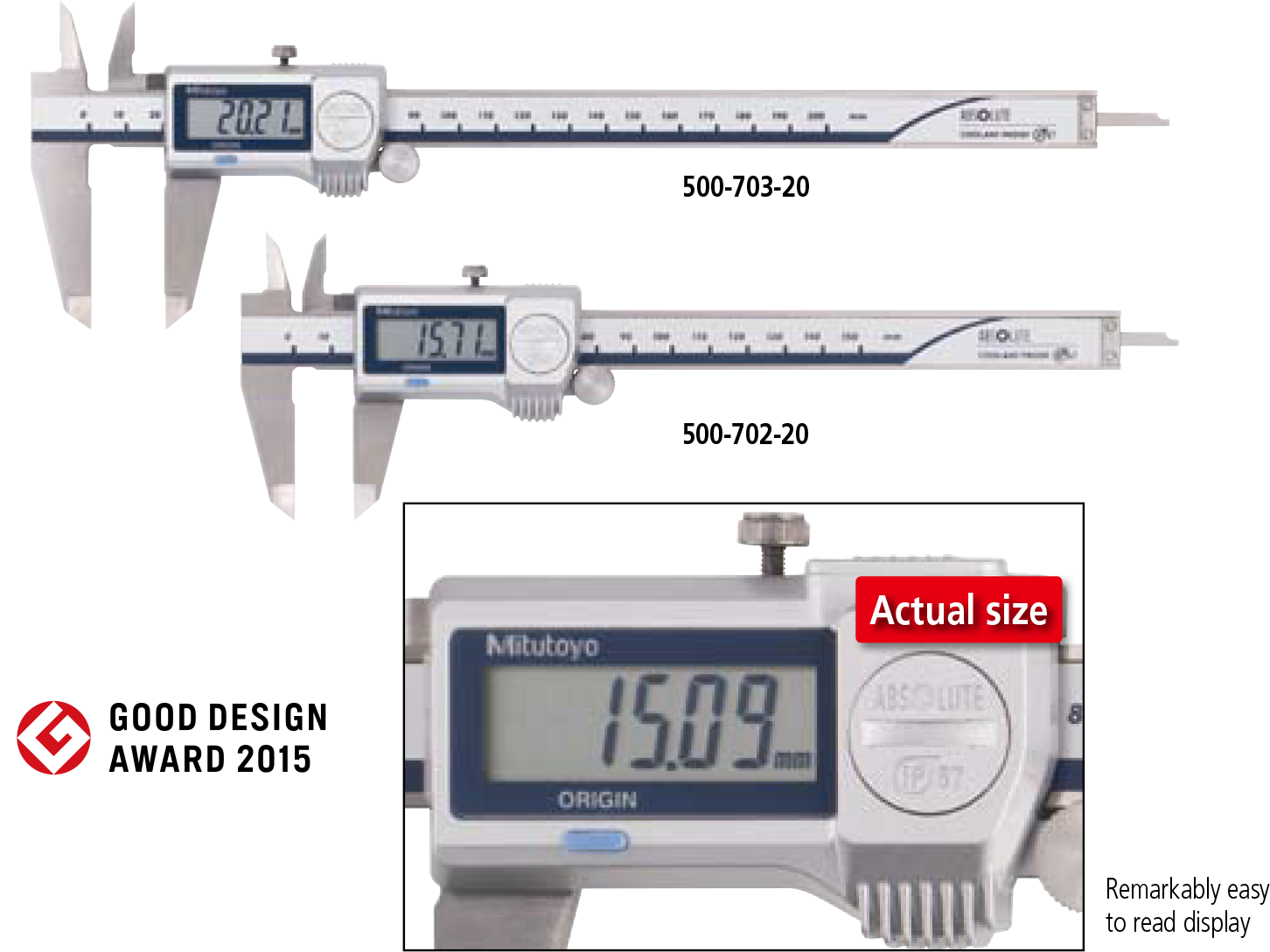

- ABS Coolant Proof Caliper with Dust/Water Protection conforming to IP67 Level. Can be used in workshop conditions exposed to coolant, water, dust or oil. 100% air-leak test ensures every caliper conforms to IP67.
- Font height is 9mm (increased by 22%) and visibility is improved (except for 0 – 300mm/0 – 12″ models).
- Battery cap does not require a screw driver for battery replacement (except for 0 – 300mm / 0 – 12″ models).
- Extended battery life of 5 years due to low current integrated circuit (except for 0 – 300mm/0 – 12″ models).
- Easy to use — advanced ergonomic design uses only 1 button.
- Incorporates Mitutoyo’s ABSOLUTE measurement system. No need to reset the origin.
- The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale origin is unaffected. Power is restored to the display when the slider is moved.
- Stepped features can be measured.
- Can be integrated into statistical process control and measurement systems.
- An inspection certificate is supplied as standard. (However, this cannot be used as a calibration certificate as it is undated.)
A built-in ABS (absolute) scale means that these calipers are ready to use immediately after power-on without origin resetting – just like using a vernier caliper.
Optional accessories
Connecting cables for IT/DP/MUX*
05CZA624: SPC cable with data button (1m)
05CZA625: SPC cable with data button (2m)
* Cannot be used for other than water resistant type Digital calipers with external output function
USB Input Tool Direct
06ADV380A: SPC cable for USB-ITN-A (2m)
Connecting cables for U-WAVE-T
02AZD790A: SPC cable for U-WAVE with data button (160mm)
02AZE140A: SPC cable for footswitch
IP67 protection level
For details of the test conditions used in evaluating each degree of protection, please refer to the original standard.
SPECIFICATIONS
Metric
| Order No. | Range | Accuracy* | Mass | Measurement data output port | Thumb roller | Remarks |
|---|---|---|---|---|---|---|

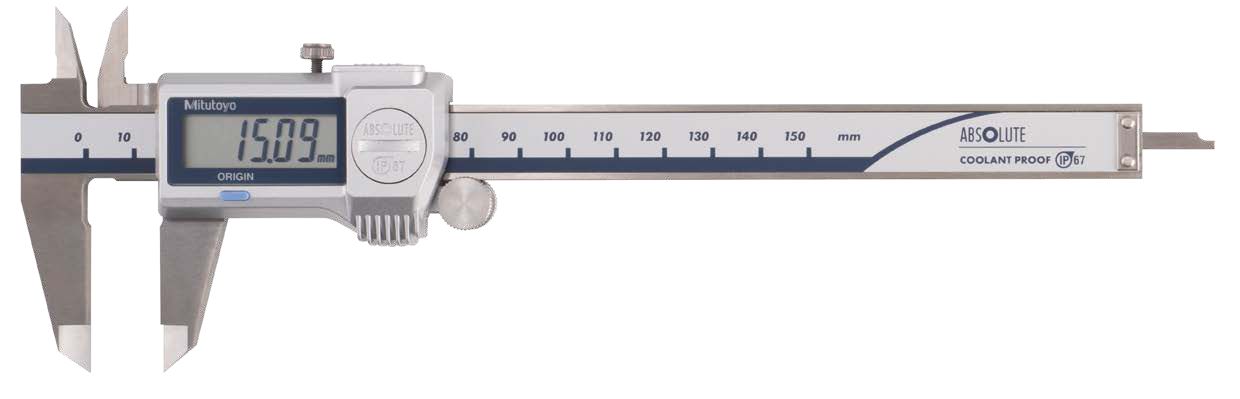

| 500-702-20 | 0 – 150mm |
±0.02mm |
168g | — |
|
|

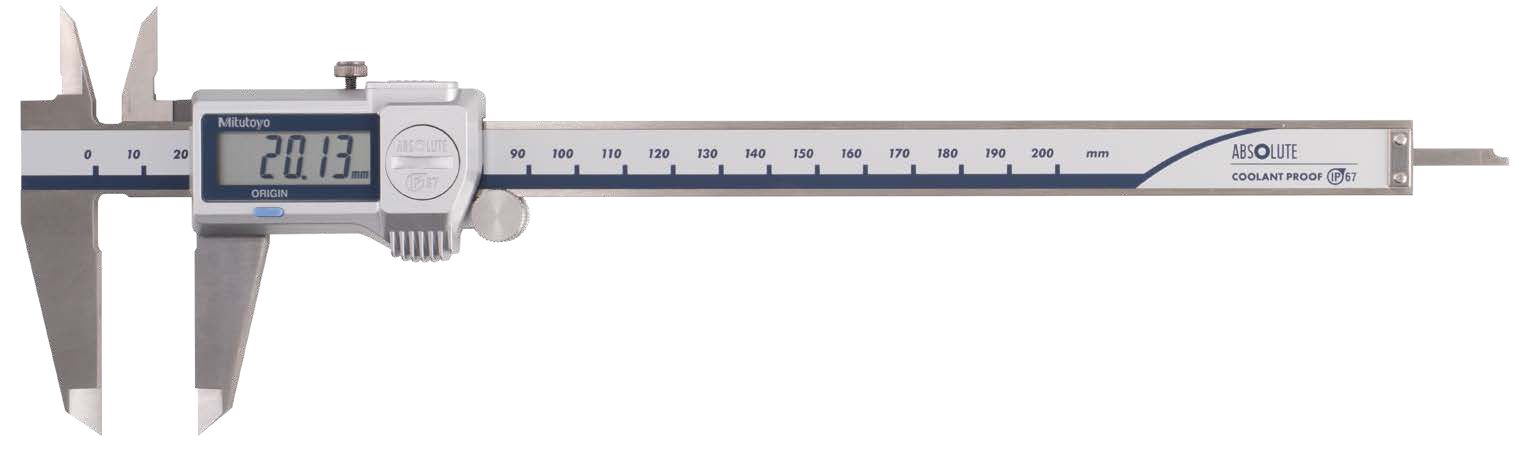

| 500-703-20 | 0 – 200mm | 198g | ||||
| 500-712-20 | 0 – 150mm | 168g |
|
|||
| 500-713-20 | 0 – 200mm | 198g | ||||
| 500-719-20 | 0 – 150mm | 168g | Depth bar ø1.9mm | |||
| 500-721-20 | 0 – 150mm | 168g | Carbide-tipped jaws for outside measurement | |||
| 500-722-20 | 0 – 200mm | 198g | ||||
| 500-723-20 | 0 – 150mm | 168g | Carbide-tipped jaws for ouatside and inside measurement | |||
| 500-724-20 | 0 – 200mm | 198g | ||||
| 500-714-10 |

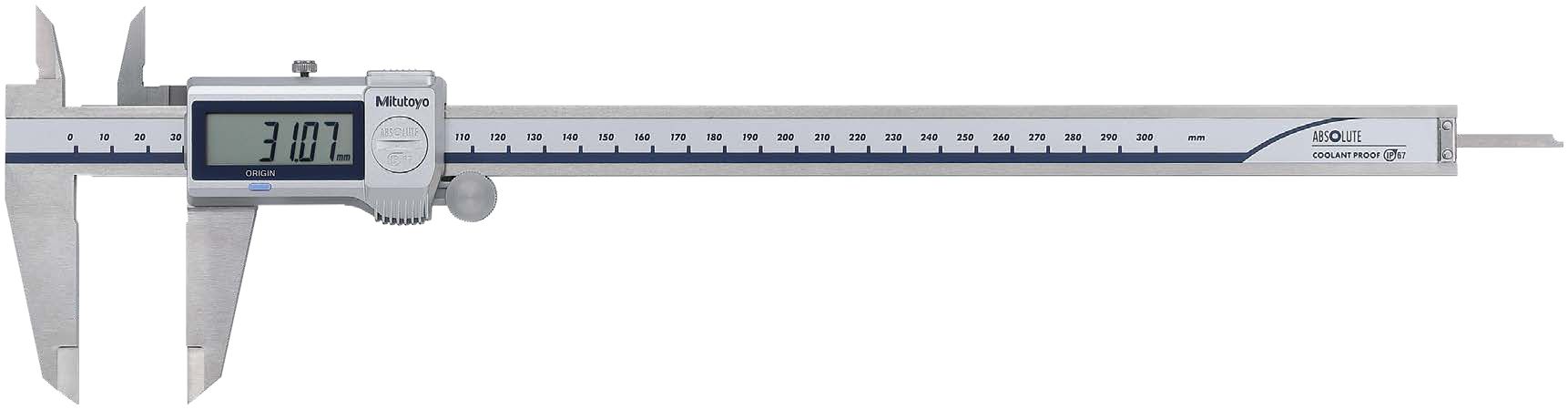

0-300mm |
±0.03mm |
350g | |||
| 500-718-11 | 345g | — | ||||
| 500-704-10 | 350g | — | ||||
| 500-708-11 | 345g | — |
* Not including quantizing error of ±1 count in LSD
Inch/Metric
| Order No. | Range | Accuracy* | Mass | Measurement data output port | Thumb roller | Remarks |
|---|---|---|---|---|---|---|
| 500-731-20 | 0 – 6″ |
±.001″/ ±0.02mm |
168g |
— |
|
Carbide-tipped jaws for outside measurement |
| 500-732-20 | 0 – 8″ | 198g | ||||
| 500-733-20 | 0 – 6″ | 168g | Carbide-tipped jaws for outside and inside measurement | |||
| 500-734-20 | 0 – 8″ | 198g | ||||
| 500-735-20 | 0 – 6″ | 168g |
|
Carbide-tipped jaws for outside measurement |
||
| 500-736-20 | 0 – 8″ | 198g | ||||
| 500-737-20 | 0 – 6″ | 168g | ||||
| 500-738-20 | 0 – 8″ | 198g |
Carbide-tipped jaws for outside and inside measurement |
|||
| 500-752-20 | 0 – 6″ | 168g | — | |||
| 500-753-20 | 0 – 8″ | 198g | ||||
| 500-762-20 | 0 – 6″ | 168g | ||||
| 500-763-20 | 0 – 8″ | 198g | ||||
| 500-768-20 | 0 – 6″ | 168g | — | Depth bar ø1.9mm | ||
| 500-769-20 | 0 – 6″ | 168g | Depth bar ø1.9mm | |||
| 500-764-10 | 0-12″ |
“±.0015″”/ ±0.03mm” |
350g | |||
| 500-754-10 | 350g | — |
* Not including quantizing error of ±1 count in LSD

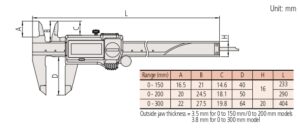

DIMENSIONS
Smooth slider movement makes for comfortable operation.
Technical Data
Resolution: 0.01mm or .0005″/0.01mm
Repeatability: 0.01mm or .0005″/0.01mm
Quantizing error: Not including ±1 count
Dust/Water protection level: IP67 (IEC60529)*
Display: LCD
Scale type: ABSOLUTE electromagnetic induction linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc), 938882, for initial operational checks (standard accessory)
Battery life: Approx. 5 years under normal use (1 year: 0 – 300mm/0 – 12″ models)
* Although these models are IP67 rated, care should be taken to dry tool after use.
Functions
Origin-set: Absolute origin position can be changed.
Data output: Measurement data output connector allows integration into statistical process control and measurement systems.
Automatic power on/off: LCD display will turn off after 20 minutes inactivity, but the ABS scale unit origin is
stored. Power is restored when the slider is moved.
Alarm: Error message is displayed if error in calculation is found and measurement is stopped. Measurement
will not be continued while error is displayed. Also, if the battery voltage becomes low, “B” appears to alert the user before measurement is no longer possible.
