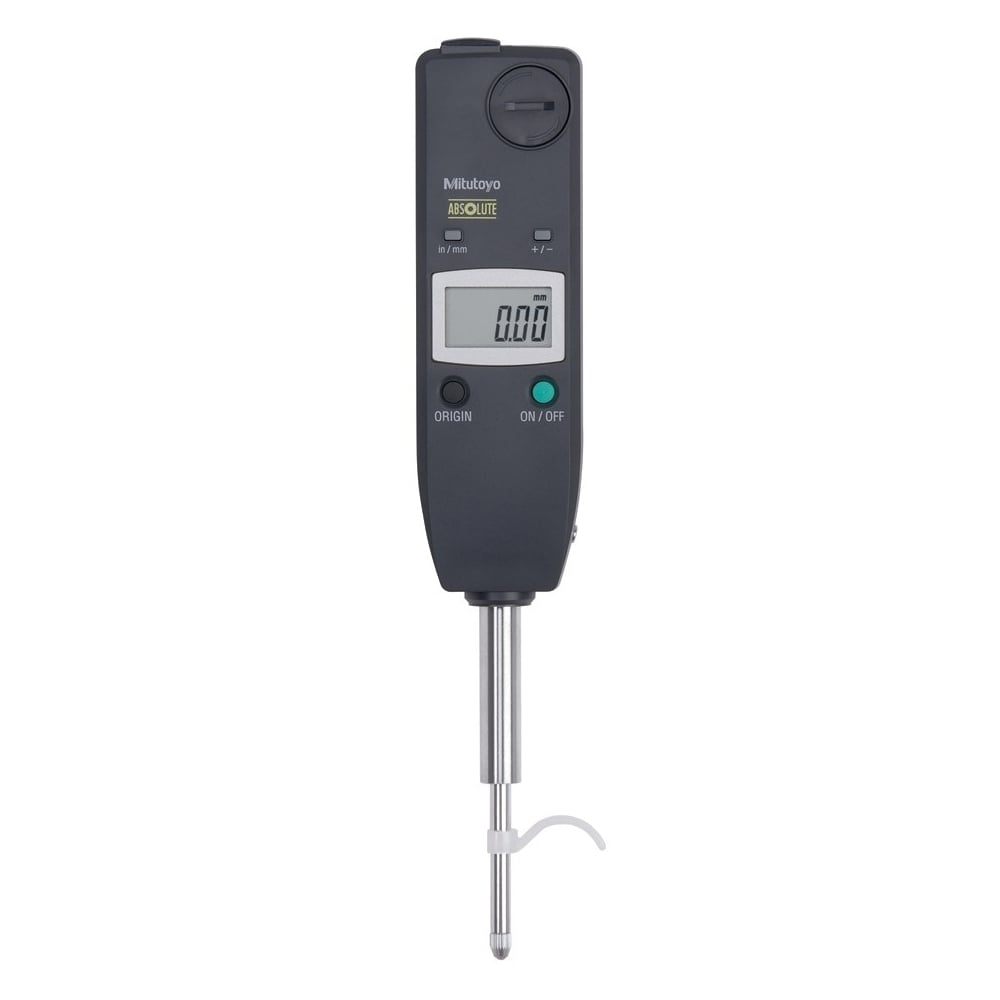

General purpose indicator with the measuring range of 25.4mm/ 1”. Cost-effective and user-friendly type which is equipped with the basic functions necessary. The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors. Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18.

SPECIFICATIONS
Metric

Order No. (w/ lug, flat-back) Range Resolution Accuracy* Measuring force

— 575-121 25.4mm 0.01mm 0.02mm 1.8N or less

Inch/Metric

Order No. (w/ lug, flat-back) Range Resolution Accuracy* Measuring force

— 575-122 1” / 25.4mm .0005”/0.01mm .001” / 0.02mm 1.8N or less

— 575-123

*Quantizing error of ±1 count is excluded
*Flat back only

Order No. (w/ lug, flat-back)	Range	Resolution	Accuracy*	Measuring force
—	575-121	25.4mm	0.01mm	0.02mm	1.8N or less

Order No. (w/ lug, flat-back)	Range	Resolution	Accuracy*	Measuring force
—	575-122	1” / 25.4mm	.0005”/0.01mm	.001” / 0.02mm	1.8N or less
—	575-123

DIMENSIONS

Note 1: Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS Type) indicator.
Note 2: Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8″ dia. and #4-48UNF thread mount for the contact point.

Technical Data
Accuracy: Refer to the list of specifications (Excluding quantizing error of ±1 count)
Resolution: 0.01mm, .0005″/0.01mm
Display: 5-digit and sign
Scale type: ABSOLUTE electrostatic linear encoder
Max. response speed: Unlimited (Measurement by scanning cannot be performed)
Measuring force: Refer to the list of specifications
Stem dia.: 8mm (ISO/JIS type) or 3/8” (ANSI/AGD type)
Standard contact point: 901312 (ISO/JIS type)
21BZB005 (ANSI/AGD type)
Battery: SR44 (1 pc.), 938882 for initial
operational checks (standard accessory)
Battery life: Approx. 20,000 hours of continuous use
Dust/Water protection level: IP42
Lifting lever: 137693

Function
Origin-set (Zeroset), Counting direction switching,
Power ON/OFF, Data output,
inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories
• Spindle lifting cable (stroke: 10mm) : No.540774
• SPC Cable:
No.905338 (1m)
No.905409 (2m)
• USB Input Tool Direct (2m) : No.06ADV380F
• Connecting Cables for U-WAVE-T (160mm):
No.02AZD790F
For footswitch : No.02AZE140F
Refer to page F-60 for details.
• Digimatic Mini-Processor DP-1VR: 264-504
• Contact points for Mitutoyo’s dial indicators (Refer to pages F-46 to F-49 for details.)
• Measuring stands (Refer to page F-79 to F-85 for details.)

- General purpose indicator with the measuring range of 25.4mm/ 1”.
- Cost-effective and user-friendly type which is equipped with the basic functions necessary.
- The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors. Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18.
- Battery life of 20,000 hours in continuous use has been achieved.
- Easy-to-read large LCD readout with the character height of 8mm.
- Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
