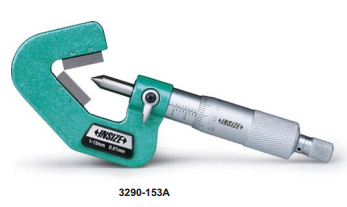

V-Anvil Micrometer Code 3290
- Measure the outside diameter of cutting tools (such as taps, reamers, end mills) with 3 or 5 flutes
- Graduation 0.01mm
- Ratchet stop
- Carbide measuring faces
- Supplied with setting standards
| Code |
Range |
Fluets |
Accuracy |
| 3290-153A |
1-15mm |
3 |
4μm |
| 3290-203A |
5-20mm |
3 |
4μm |
| 3290-353A |
20-35mm |
3 |
5μm |
| 3290-503A |
35-50mm |
3 |
5μm |
| 3290-653A |
50-65mm |
3 |
6μm |
| 3290-803A |
65-80mm |
3 |
6μm |
| 3290-953A |
80-95mm |
3 |
7μm |
| 3290-255A |
5-25mm |
5 |
4μm |
| 3290-455A |
25-45mm |
5 |
5μm |
| 3290-655A |
45-65mm |
5 |
6μm |
| 3290-855A |
65-85mm |
5 |
7μm |
