Imada offers manual and motorized wire crimp test systems in either vertical or horizontal configurations.
Lever-operated systems offer basic functionality and rapid destructive testing up to 220 lbf.
Motorized systems have speed control and are capable of destructive or force-controlled non-destructive testing up to 1100 lbf.
Choose from manual or automatic wire-gripping fixtures
Digital gauges offer data output for analysis with data acquisition software.
Create your own custom configuration or consult our application specialists.



ACT-220 Automatic Wire Crimp Tester

Model: ACT-220 (220 lbf Capacity)
act-220-516x516 act-220wire

The ACT-220 Automatic Wire Crimp Tester is designed to measure the strength of wire crimps, up to 220 lbf (1000 N). This tester features: Easy-to-use menus, EL electro-luminescent display, an easy to use keypad simplify crimp test programming and much more.

The tester conforms with UL 486A-B as well as other ASTM, MIL, ANSI/EIA, NASA, IEC and JIS crimp testing standards. See the specifications table for more details.

The wire terminal grip has 12 slots which accommodate wire diameters from 18 AWG to 1 AWG (1-8 mm OD). Smaller test fixtures are also available.

Simplify Your Wire Crimp Testing

Press the green button to automatically test a crimped on wire terminal. After the test is completed, the tester will automatically return to the starting position. The peak force is held on the display and pass fail LED indicators allow for easy GO/NO GO testing. Each reading saved into memory has a date and time stamp. Up to 1,500 results can be saved and recalled from memory. Test configuration is intuitive. Select units, destructive or non destructive testing, hold duration, hold value (non-destructive) and test speed. Save up to 26 individual wire crimp test profiles in the internal memory for quick and efficient testing of multiple sample types.

What’s Included?

The ACT-220 includes the ACT Logger data acquisition software. ACT Logger downloads data from the tester memory and/or captures peak data while testing via the USB output. All tester programming can be set from the software.
All ACT-220 Automatic Wire Crimp Tester include a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge.

Standards Features
  • Destructive and nondestructive test modes
  • Force hold duration up to 999 seconds in 1 second increments
  • Color-coded LED indicators for Go/No Go testing
  • Selectable digital speeds 10/25/50/100 mm/min
  • Save up to 26 test configurations in memory
  • EL electro luminescent display is highly visible in the dark or bright sunlight
  • Time and date stamp
  • Selectable units: lbf, kgf, and N
  • 1,500 data memory for recall or download (RS-232C output)
  • Kit includes, terminal grip, wire cam grip, ACT Logger data acquisition software, USB cable, calibration cert traceable to NIST
  • Many optional crimp attachments available
Specifications
Resolution 0.1 lbf, 1N, 0.1 kgf
Accuracy ±0.5% F.S. ±1 digit
Force Units lbf, N, kgf (selectable)
Overload Rating Approx. 150% F.S.
Speed Ranges 10/25/50/100 mm/min or 0.5, 1.0, 2.0, 4.0 in/min (Selectable)
Hold Duration up to 999 seconds in 1 second increments
Stroke Approx. 50mm
Sample Diameters 12 slots, 1 to 8mm
Sample Length 100mm (4″) or more
Test Modes BREAK (destructive)/KEEP (non-destructive) modes
Test Profiles Saves up to 26 patterns (A to Z)
Internal Memory 1500 data
Outputs USB/RS232C (for printer output)/Judgment signal (OK/NG)
Operating Conditions 0° to 40° Celsius, 20 to 80%RH
Standards ACT-220 meets test conditions of wire crimp test standards. Review the details of the following standards: UL 486A-486B, ASTM B913, ANSI/EIA-364-38B, MIL-DTL-22520G, NASA-STD-8739.4



LH-110 Horizontal Wire Pull Tester

Horizontal Straight Pull Crimp Tester
lh-110-516x516
  • Straight-pull without bending or winding the test wire
  • Lever action allows for rapid testing
  • Horizontal positioning is easy to control
  • Stroke 3.34″ (85mm)
  • lbf, kgf, and Newton units are selectable
  • RS-232C, Digimatic and analog outputs
  • Runs on internal rechargeable batteries or AC adapter
  • NIST Calibration Certificate included (ISO 17025 Certificate optional)

The LH horizontal, straight-pull, wire terminal testers are designed specifically to test the pull-off force of wire terminal connectors and includes gripping attachments.
The display module has selectable units, peak or real time modes, and operates with either the internal battery or included AC adapter.
The terminal grip opens to 5mm and allows wire terminals to be held with minimum damage to the wire jacket and holds the connector after pull-off. The wire grip has serrated jaws for a firm hold on the wire. Optional wire terminal grips are available.
The lever provides rapid action and a straight-pull on the wire and wire terminal. The tester is unaffected by gravity and does not employ a return spring, making it perfect for wire terminal crimp testing.



Lever Operated Vertical Crimp Tester

SVL-220 Vertical Lever-Operated Test Stand
DS2 Force Gauge

svl-220-wire-crimp-tester

  • SVL-220 Vertical Test Stand
  • DS2 Digital Force gauge (many ranges available)
  • GT-30 Vise Chuck or WG-300 Cam Grip (your choice)
  • WG-1, WG-2, WG-3 Grip (your choice)
  • Max Load: 220 lbf
  • Outstanding accuracy of ±0.2% F.S. ±1 LSD
  • Real time and peak mode (selectable)
  • Newton, lbf and kgf units are selectable
  • RS-232C, Digimatic and analog outputs

This lever operated wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and soldered parts. System comes with test stand and DS2 force gauge of your choice. Choose optional pull test attachments wedge grip, cam grip, vise chuck, WG-1 or WG-2 wire grip to suit your application (other attachments available).



Lever Operated Horizontal Crimp Tester

NLH-220 Lever-Operated Horizontal Test Stand
DS2 Force Gauge

lever-operated-horizontal-crimp-tester

  • Horizontal test stand
  • DS2 Digital Force Gauge (specify range)
  • Crimp Test Attachments:
    Stand side: specify GT-30 Vise Chuck or WG-300 Cam Grip
    Gauge side: specify WG-1, WG-2, WG-3 or KC-100 Grip
  • Max Load: 220 lbf
  • Outstanding accuracy of ±0.2%
  • Real time and peak mode (selectable)
  • Newton, lb and kg units are selectable
  • RS-232C, Digimatic and analog outputs

This wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests. System comes with test stand and DS2 force gauge of your choice. Choose optional pull test attachments wedge grip, cam grip, vise chuck, WG-1 or WG-2 wire grip to suit your application (attachments for other applications are available).



Motorized Crimp Tester

Crimp Tester – Motorized with Output
Standard Features
  • Force controlled non-destructive testing (destructive testing as well)
    -Maintain force between high/low setpoints
    -Increase force to high setpoint and stop
  • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Wide speed range: 0.4 – 11.5 in/min (optional speed ranges available)
  • No programming required
  • Newton, lbf and kgf units are selectable
  • Accuracy: ±0.2% F.S. ±1 LSD
  • RS-232C, Digimatic and analog outputs

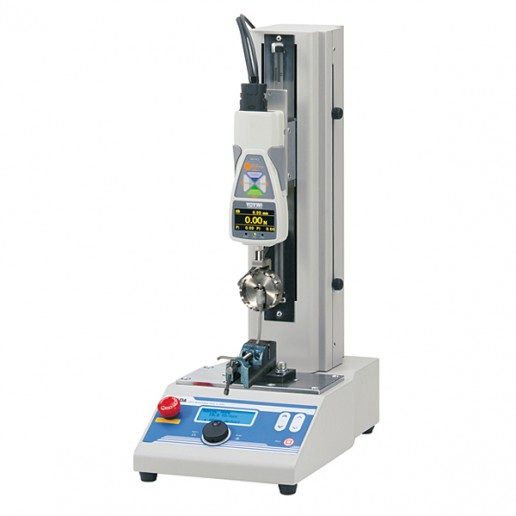

mx2-110-wg3-gt30

Ranges
Model MX-110 MX2-110 MX-275 MX2-275 MX2-550 MX-1100
Capacity 110 lbf 110 lbf 275 lbf 275 lbf 500 lbf 1100 lbf
Features Auto cycle and Force Control Capability Speed Control, Hold Duration, Cycle Counter Auto cycle and Force Control Capability Speed Control, Hold Duration, Cycle Counter Speed Control, Hold Duration, Cycle Counter Auto cycle and Force Control Capability
