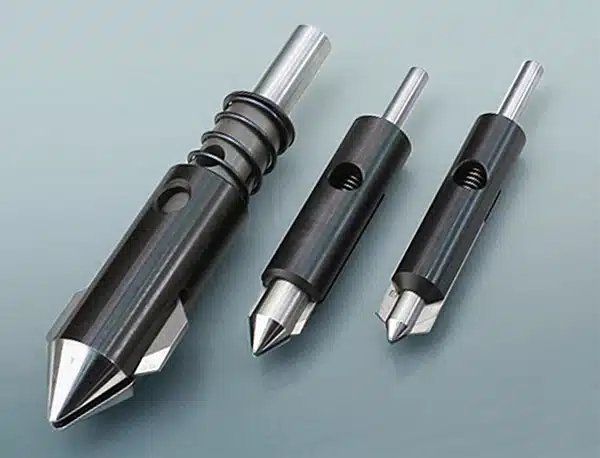

Ellipti-Bur is a specialized deburring tool designed for curved, angled, and irregular hole surfaces. It automatically adapts to the hole geometry, delivering fast, accurate, and uniform deburring without the need for special fixtures or operator expertise.

Key Features:

Ideal for curved, cylindrical, elliptical, and angled holes
Automatically adjusts to irregular hole geometry
Produces a consistent and uniform edge break
No special jigs, fixtures, or skilled operation required
Quick and accurate deburring in a single operation
Perfect for aerospace, automotive, tube, pipe, and precision engineering applications

Download Catalog

TOOL NO	OPERATING RANGE				C LENGTH		D BODY		E SHANK		F DEREE
	A (MIN)		B (MAX)		C LENGTH		D BODY		E SHANK
	IN.	MM	IN.	MM	IN.	MM	IN.	MM	IN.	MM
EL-5	.156	3.96	.312	7.93	3.125	79.37	.625	15.87	.250	6.35	120°
*EL-5XT	.156	3.96	.312	7.93	3.125	79.37	.625	15.87	.250.	6.35	120°
EL-8	.250	6.35	.500	12.7	3.250	82.55	.750	19.05	.250	6.35	120°
EL-16	.375	9.52	1.000	25.4	4.750	120.65	1.000	25.4	.500	12.7	120°

*Blades for the EL-5XT are made from a premium grade high speed steel and recommended for applications where longer tool life is desired, such as when coolant is unavailable.
Note: Operating range is determined by pilot diameter, not by cutter width.

Deburring cylindrical, elliptical or other curved surfaces, used to challenge the most experienced engineers. Yet with the Ellipti-Bur, it’s now effortless simplicity.

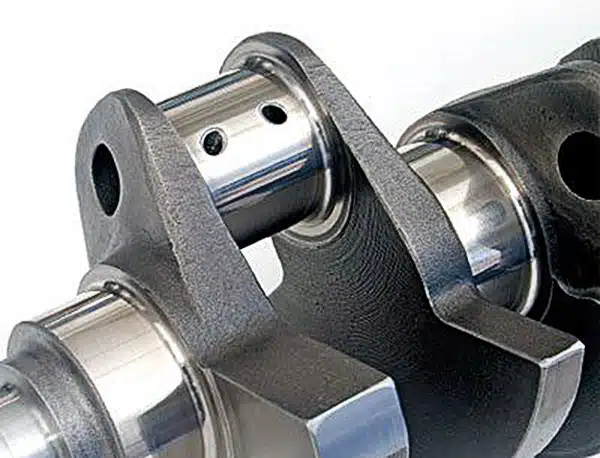

The Ellipti-Bur is designed for deburring irregular hole surfaces, such as those which are generated by drilling into curved surfaces, or by drilling at an angle.
The Ellipti-Bur enables the user to perform these difficult deburring operations quickly and accurately, and without jigs, fixtures, or special operator skills.
The blade remains free to react to the irregular surface geometry of the hole, allowing for both radial and axial displacement resulting from the elliptical shape of angular drilled holes, and axial displacement (“rise and fall”) from the saddle shaped configuration of holes drilled in cylindrical surfaces.
This automatic self guiding feature produces a relatively uniform break on the edge of the hole.

How Ellipti-Bur tools work:

As the pilot of the tool is located in the hole, the tool is seated and centered.
As the tool is advanced, the pilot is forced into the tool body against the shank spring, and the blade comes into contact with the edge of the hole – resulting in an oscillation motion both radially and axillary from the saddle-shape of the component.
As the tool continues to advance, the pilot is further pressed into the body and the blade is driven into the workpiece.

Design Features

The Ellipti-Bur features a spring-loaded and self-centering conical pilot to locate and seat the tool for consistent results.
All essential tool parts are hardened and ground for durability.
Three models cover a range of hole sizes from 5/32 to one inch (3.96 to 25.4mm).
The blade, which has two diametrically opposed cutting edges, is made from hardened high-speed steel and finish ground. A supplemental surface treatment provides for increased wear resistance.
