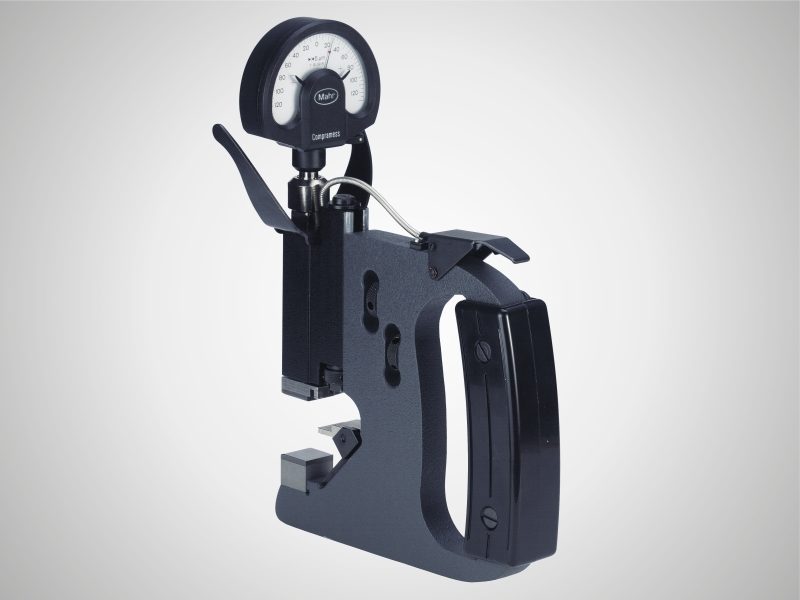

MARAMETER 300P-7 INDICATING SNAP GAGE Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment All Series 300P snap gages are fully adjustable with positive position locking at any point within the range 0,50 mm / .020“ movement of sensitive contact Snap gages available over a

MARAMETER 300P-7 INDICATING SNAP GAGE

Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment
All Series 300P snap gages are fully adjustable with positive position locking at any point within the range
0,50 mm / .020“ movement of sensitive contact
Snap gages available over a wide range of sizes, styles, and readout configurations
Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces ensuring precision that lasts
Indicator can be rotated to read from front or rear of the gage
All adjustments accomplished using a single hex wrench (furnished)

Indicating snap gage

Technical data

Order no.	Product type	Application range mm	Measuring span in mm	Measuring range in inch	Size of measuring surface in mm	Parallel error in µm	Measuring force	Mounting hole for indicator
2050485	300P-1	0 – 25.4	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050497	300P-2	25.4 – 50.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050499	300P-3	50.8 – 76.2	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050511	300P-4	76.2 – 101.6	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050514	300P-5	101.6 – 127	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050516	300P-6	127 – 152.4	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050518	300P-7	152.4 – 177.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050527	300P-8	177.8 – 203.2	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2050529	300P-9	203.2 – 228.6	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch

MARAMETER 300P-5M INDICATING SNAP GAGE

Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment
All Series 300P snap gages are fully adjustable with positive position locking at any point within the range
0,50 mm / .020“ movement of sensitive contact
Snap gages available over a wide range of sizes, styles, and readout configurations
Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces ensuring precision that lasts
Indicator can be rotated to read from front or rear of the gage
All adjustments accomplished using a single hex wrench (furnished)

Indicating snap gage

Technical data

Order no.	Product type	Application range mm	Measuring span in mm	Measuring range in inch	Size of measuring surface in mm	Parallel error in µm	Measuring force
2050496	300P-1M	0 – 25.4	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N
2050498	300P-2M	25.4 – 50.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N
2050510	300P-3M	50.8 – 76.2	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N
2050513	300P-4M	76.2 – 101.6	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N
2050515	300P-5M	101.6 – 127	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N
2050526	300P-6M	152.4 – 177.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N

MARAMETER 300P – INDICATING SNAP GAGE WITH DIGITAL INDICATOR

MARAMETER EDI-300P-6 INDICATING SNAP GAGE

Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment
All Series 300P snap gages are fully adjustable with positive position locking at any point within the range
0,50 mm / .020“ movement of sensitive contact
Snap gages available over a wide range of sizes, styles, and readout configurations
Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces ensuring precision that lasts
Indicator can be rotated to read from front or rear of the gage
All adjustments accomplished using a single hex wrench (furnished)

Indicating snap gage

Technical data

Order no.	Product type	Application range mm	Measuring span in mm	Measuring range in inch	Size of measuring surface in mm	Parallel error in µm	Measuring force	Mounting hole for indicator
2003121		–	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051658	EDI-300P-1	0 – 25.4	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051664	EDI-300P-2	25.4 – 50.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051666	EDI-300P-3	50.8 – 76.2	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051668	EDI-300P-4	76.2 – 101.6	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051669	EDI-300P-5	101.6 – 127	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051670	EDI-300P-6	127 – 152.4	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051671	EDI-300P-7	152.4 – 177.8	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051672	EDI-300P-8	177.8 – 203.2	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
2051673	EDI-300P-9	203.2 – 228.6	0.5 mm	0.02 inch	15,5 x 15,5 mm	4 µm	18 N	0.375 inch
