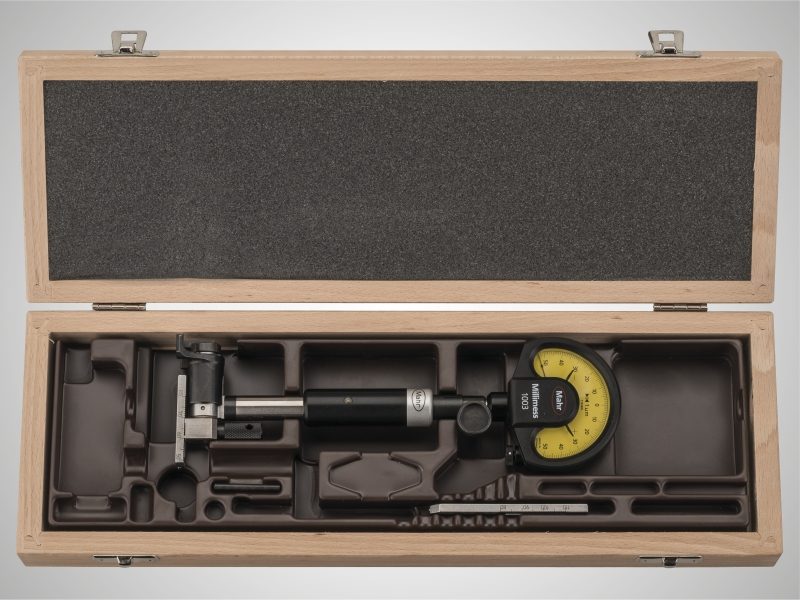

MARAMETER 844 NH SELF-CENTRING DIAL BORE GAGE

MARAMETER 844 NH SELF-CENTRING DIAL BORE GAGE

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature bacause the shank and transfer rod are made of heat resistant Invar steel Highly resistant

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball
Transmission lever system transfers movement of movable anvil to indicating instrument
The broad centering bridge ensures automatic centering in the bore
Resistant to temperature bacause the shank and transfer rod are made of heat resistant Invar steel
Highly resistant to wear and tear due to the carbide tipped moving anvil
Constant measuring force because of built-in spring, eliminating user influence
Universally applicable and extremely versatile
– Each instrument spans a broad measuring range
– Quick and easy to adjust to any size (within its range)
Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops
Invar steel has a particularly low expansion coefficient
– instrument totally insensitive to any kind of heat (including user body heat and increased ambient temperature)

Centring dial bore gage

Technical data

Order no.	Product type	Measuring range inches	Measuring range mm	Distance of movable anvil_mm	Repeatability fw (µm)	Error limit Ge (µm)	Measuring depth mm
4475000	844 NH	.7 – 2″	18 – 50	1.3 mm	0.5 µm	2 µm	115 mm
4475001	844 NH	1.4 – 4″	35 – 100	1.3 mm	0.5 µm	2 µm	148 mm
4475002	844 NH	4 – 10″	100 – 250	1.6 mm	0.5 µm	2 µm	230 mm
4475003	844 NH	10 – 16″	250 – 400	2.6 mm	1.5 µm	3 µm	336 mm
4475004	844 NH	16 – 32″	400 – 800	2.6 mm	1.5 µm	3 µm	336 mm
4475005	844 NH	10 – 32″	250 – 800	2.6 mm	1.5 µm	3 µm	336 mm

MARAMETER 844 N SELF-CENTRING DIAL BORE GAGE

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a hardened steel ball
Transmission lever system transfers movement of movable anvil to indicating instrument
The broad centering bridge ensures automatic centering in the bore
Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel
Highly resistant to wear and tear because of carbide tipped moving anvil
Constant measuring force due to built-in spring, eliminating user influence
Universally applicable and extremely versatile
– Each instrument spans a broad measuring range
– Quick and easy to adjust to any size (within its range)
Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops
Invar steel has a particularly low expansion coefficient
– instrument totally insensitive to any kind of heat (including user body heat and increased ambient temperature)

Centring dial bore gage

Technical data of Centring dial bore gage

Order no.	Product type	Measuring range inches	Measuring range mm	Distance of movable anvil_mm	Repeatability fw (µm)	Error limit Ge (µm)	Measuring depth mm
4474000	844 N	.7 – 2″	18 – 50	1.3 mm	0.5 µm	2 µm	115 mm
4474001	844 N	1.4 – 4″	35 – 100	1.3 mm	0.5 µm	2 µm	148 mm
4474002	844 N	4 – 10″	100 – 250	1.6 mm	0.5 µm	2 µm	230 mm
4474003	844 N	10 – 16″	250 – 400	2.6 mm	1.5 µm	3 µm	366 mm
4474004	844 N	16 – 32″	400 – 800	2.6 mm	1.5 µm	3 µm	366 mm
4474005	844 N	10 – 32″	250 – 800	2.6 mm	1.5 µm	3 µm	366 mm
