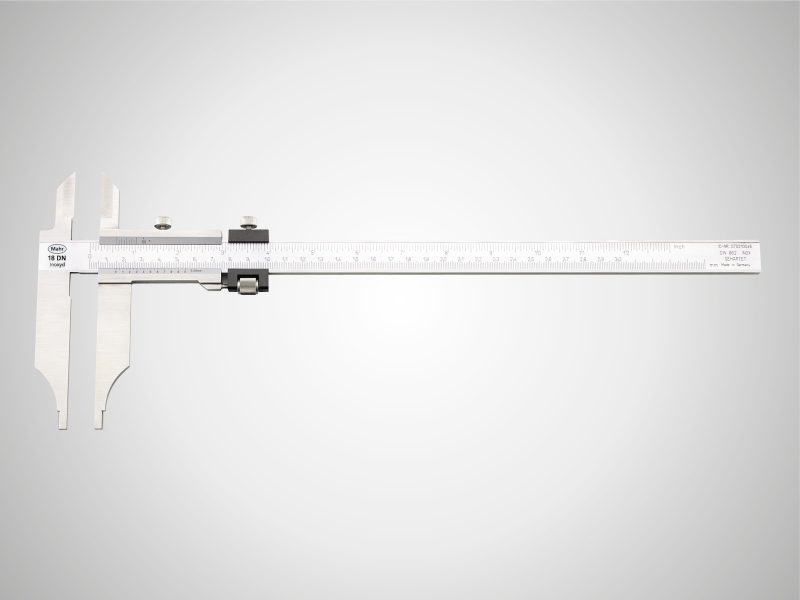

Marcal 18 DN Workshop Calipers

MARCAL 18 DN WORKSHOP CALIPERS

With fine adjustment Measuring blades for outside measurements Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale case Technical data Order

With fine adjustment
Measuring blades for outside measurements
Vernier and main scale have a satin chrome finish for glare free reading
Locking screw above
Rounded measuring blades for inside measurements
Measuring surfaces made of steel
Slide and beam made of hardened stainless steel
Raised guideway for the protection of the scale
case

Workshop calipers

Technical data

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4113300	0 – 200	0.02 mm	0.05 mm	Factory standard
4113301	0 – 300	0.02 mm	0.05 mm	Factory standard
4113302	0 – 500	0.02 mm	0.06 mm	Factory standard
4113303	0 – 800	0.02 mm	0.08 mm	Factory standard
4113304	0 – 1000	0.02 mm	0.08 mm	Factory standard
