MARCAL 30 N / 30 NH / 30 ND - DEPTH GAGES, VERNIER

MARCAL 30 N / 30 NH / 30 ND – DEPTH GAGES, VERNIER

Vernier and main scale have a satin chrome finish for glare free reading Locking screw below Hardened measuring pin Measuring surfaces made of steel Interchangeable beams case Technical data Order no. Measuring range mm Readings mm Error limit (mm) Standard 4127200/td> 0 – 80 0.05 mm 0.05 mm DIN 862 4127300 0 – 150 0.05

Vernier and main scale have a satin chrome finish for glare free reading
Locking screw below
Hardened measuring pin
Measuring surfaces made of steel
Interchangeable beams
case

Technical data

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4127200/td>	0 – 80	0.05 mm	0.05 mm	DIN 862
4127300	0 – 150	0.05 mm	0.05 mm	DIN 862
4127301	0 – 200	0.05 mm	0.05 mm	DIN 862
4127201	0 – 300	0.05 mm	0.05 mm	DIN 862
4127202	0 – 500	0.05 mm	0.07 mm	DIN 862

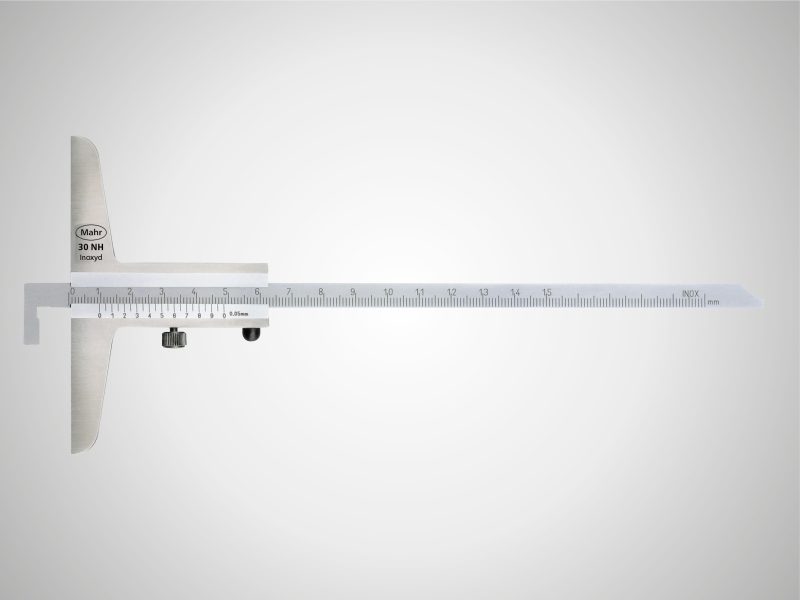

MARCAL 30 NH DEPTH GAGES VERNIER WITH HOOK

Vernier and main scale have a satin chrome finish for glare free reading
Locking screw below
Measuring surfaces made of steel
Interchangeable beams
case

Technical data

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4127350	0 – 150	0.05 mm	0.05 mm	DIN 862
4127351	0 – 200	0.05 mm	0.05 mm	DIN 862
4127352	0 – 300	0.05 mm	0.05 mm	DIN 862
4127353	0 – 500	0.05 mm	0.07 mm	DIN 862

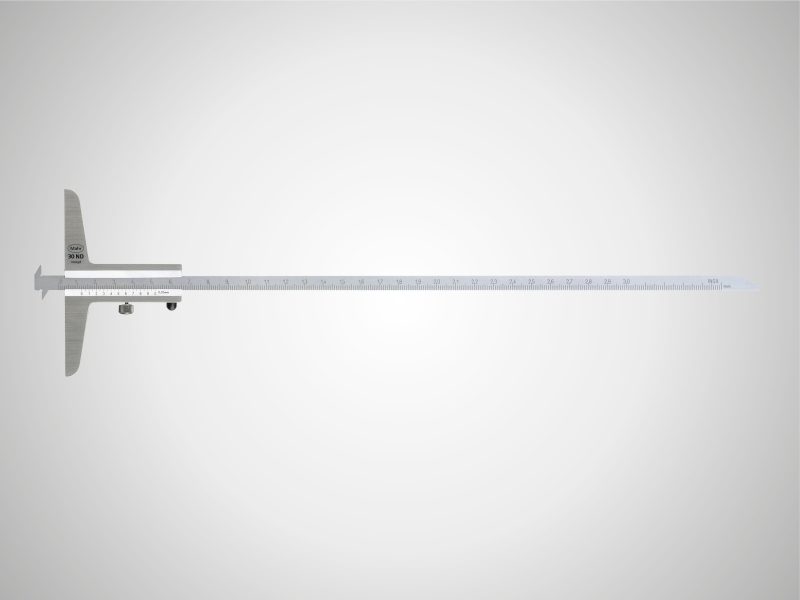

MARCAL 30 ND DEPTH GAGES VERNIER WITH TWIN HOOK

Vernier and main scale have a satin chrome finish for glare free reading
Locking screw below
Measuring surfaces made of steel
Interchangeable beams
case

Technical data

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4127400	0 – 200	0.02 mm	0.05 mm	Factory standard
4127401	0 – 300	0.02 mm	0.05 mm	Factory standard
4127410	0 – 200	0.05 mm	0.05 mm	Factory standard
4127411	0 – 300	0.05 mm	0.05 mm	Factory standard
