MARCATOR E7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

MARCATOR E7I DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Scale diameter (inches)	Dial color
2011060	42I	.025″	.0001”	0-5-0	.010″	± .0001″	ANSI	3.625″	green
2011061	42I-RC	.025″	.0001”	0-10	.010″	± .0001″	ANSI	3.625″	green
2011280	E1K	.020″	.0001”	0-4-0	.008″	± .0001″	ANSI	3.625″	green
2011281	E1K-RC	.020″	.0001”	0-8	.008″	± .0001″	ANSI	3.625″	green
2011286	E3K	.050″	.00025″	0-10-0	.020″	± .00025″	ANSI	3.625″	green
2011287	E3K-RC	.050″	.00025″	0-20	.020″	± .00025″	ANSI	3.625″	green
2011290	E3Q	.050″	.0005″	0-10-0	.020″	± .0005″	ANSI	3.625″	green
2011291	E3Q-RC	.050″	.0005″	0-20	.020″	± .0005″	ANSI	3.625″	green
2011294	E3W	.050″	.001″	0-10-0	.020″	± .001″	ANSI	3.625″	green
2011295	E3W-RC	.050″	.001″	0-20	.020″	± .001″	ANSI	3.625″	green
2011298	E5G	.075″	.00025″	0-15-0	.030″	± .00025″	ANSI	3.625″	green
2011299	E5G-RC	.075″	.00025″	0-30	.030″	± .00025″	ANSI	3.625″	green
2011302	E5M	.075″	.0005″	0-15-0	.030″	± .0005″	ANSI	3.625″	green
2011303	E5M-RC	.075″	.0005″	0-30	.030″	± .0005″	ANSI	3.625″	green
2011306	E7I	.125″	.0005″	0-25-0	.050″	± .0005″	ANSI	3.625″	green
2011307	E7I-RC	.125″	.0005″	0-50	.050″	± .0005″	ANSI	3.625″	green
2011310	E7O	.125″	.001″	0-25-0	.050″	± .001″	ANSI	3.625″	green
2011311	E7O-RC	.125″	.001″	0-50	.050″	± .001″	ANSI	3.625″	green
2011314	E8I	.250″	.001″	0-50-0	.100″	± .001″	ANSI	3.625″	green
2011315	E8I-RC	.250″	.001″	0-100	.100″	± .001″	ANSI	3.625″	green

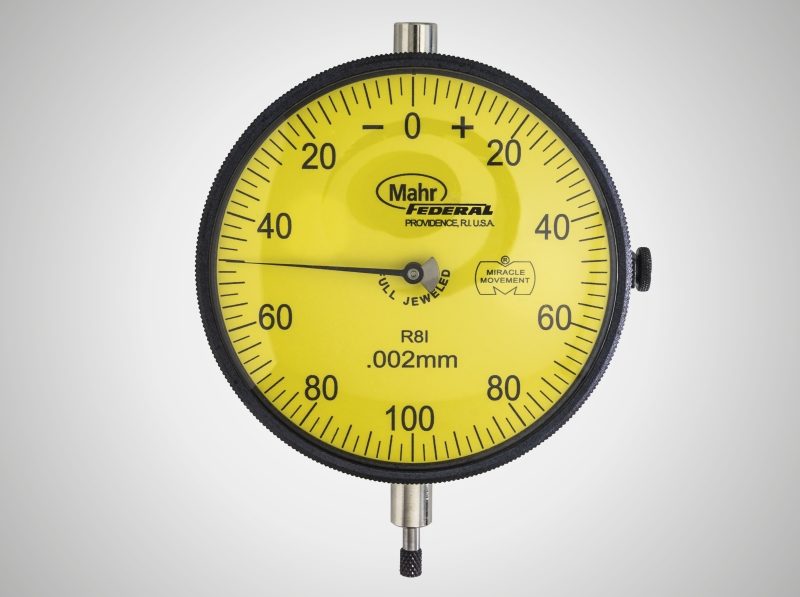

MARCATOR R6I-RC DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2012347	R1I	0.5 mm	0.002 mm	0-10-0	0.2 mm	ANSI	92 mm	yellow
2012348	R1I-RC	0.5 mm	0.002 mm	0-20	0.2 mm	ANSI	92 mm	yellow
2012351	R3I	1.25 mm	0.005 mm	0-25-0	0.5 mm	ANSI	92 mm	yellow
2012352	R3I-RC	1.25 mm	0.005 mm	0-50	0.5 mm	ANSI	92 mm	yellow
2012355	R6I	2.5 mm	0.01 mm	0-50-0	1 mm	ANSI	92 mm	yellow
2012356	R6I-RC	2.5 mm	0.01 mm	0-100	1 mm	ANSI	92 mm	yellow
2012359	R8I	5 mm	0.02 mm	0-100-0	2 mm	ANSI	92 mm	yellow
2012360	R8I-RC	5 mm	0.02 mm	0-200	2 mm	ANSI	92 mm	yellow
