Metrix+ BTF 01

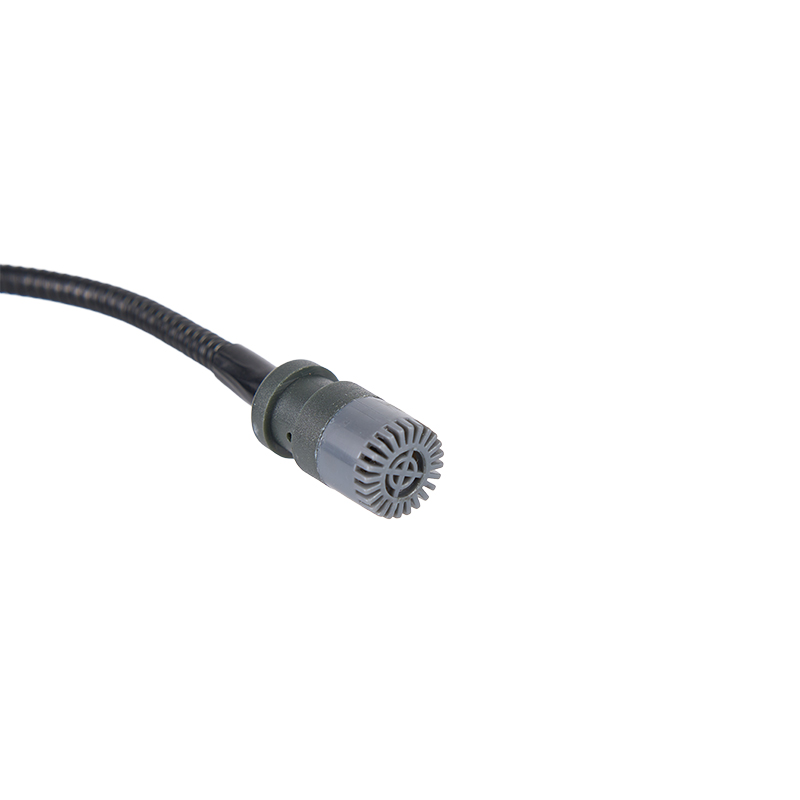

Microphone sensor, flexible probe, measure frequency upto 680Hz and belt tension, unit N, useful for belts of motors, machines, etc.

Features:

Adjustable directional probe
Measures vibrating frequency, which can help calculate the belt tension
Upto Max frequency of 680Hz
Data storage and backlit display

Download Catalog

Model	*Metrix+ BTF 01*
Range	10 ~ 680Hz
Belt Width	Input upto 999.9mm
Belt free strand length	Input upto 9999mm
Belt mass	Input upto 999.9
Measurement distance	10mm
Units	Frequency: Hz Tension: N
Resolution	1Hz
Precision	<100Hz: 1Hz, >100Hz: 1%
Accuracy	< 5%
Digital sampling accuracy	< 1%
Power	4 x 1.5V AAA batteries
Features	LED indication, data storage, low battery indication, auto power off
Operating	Temp: 0~50C, Humidity <80% RH
Dimensions	140 x 72 x 34mm, approx. 350g
Std accessories	Main unit, sensor, manual, case

Applications:

Belt tension testers test the tension of belts, wires, ropes, tapes, etc, as a means of mechanical strength test. Widely useful in automobile, textile, cables, wires, plastic films, paper, printing, etc. It can be used to measure the tension of auxiliary belts fitted to motor vehicles and other machines.

Measuring Principle:

This has a microphone as a sensor, which measures the vibrating frequency(transverse vibration of a string theory) of the free belt, by converting acoustic sound pressure to electric signals. By measuring the vibrating frequency, tension can be calculated after setting belt parameters of span, width and mass with formula T=4xMxWxS²xF²x10^-9
