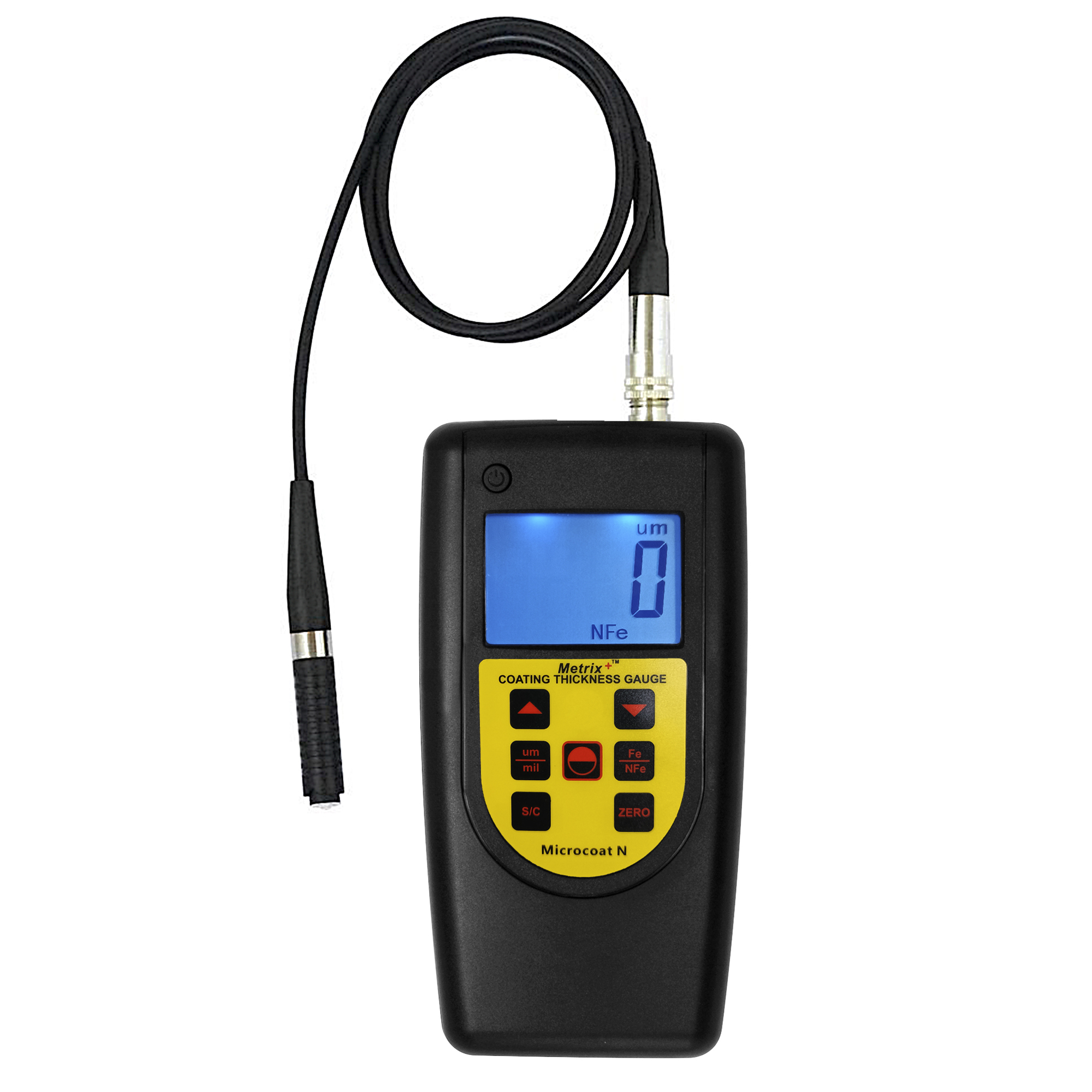

Metrix+ Microcoat N

Flexible probe precise measurement of coating thickness upto 200um on non-ferrous substrates.

Features:

Precision measurement of thinner coatings and on smaller workpieces
Backlit display for better readability
Zero-point calibration and multi-point calibration
Single and continuous mode, helpful for curved and tiny objects
Selectable um/mil measuring units
Auto power off

Model	*Metrix+ Microcoat N*
International Standard	It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS. Can be used both in laboratory and harsh field conditions.
Measuring principle	Eddy current(Non-Ferrous)
Display	4 digits backlit LCD
Measuring range	0 – 200um (0 – 8mils)
Accuracy	±1-3%n or +2.5um
Resolution	0.1um(0~99.9um); 1um(over 100um)
Minimum curvature radius	Convex: 2mm; Concave: 4mm
Minimum thickness of substrate	0.1mm
Power supply	4 x 1.5V AAA battery
Operation environment	Temperature: 0 ~ 40℃ ; Humidity: 10 ~ 90% RH
Size & Weight	140mm × 72mm × 34mm; 215g(not including batteries)
Standard Accessories	Coating Thickness Gauge, NF probe, ‘0’ calibration non-ferrous block, standard foils, batteries, technical manual, hard carry case.
Optional Accessories	PC interface(cable and software)

Applications:

This Gauge is designed for non-destructively measuring the thickness of coatings on non-ferrous substrates, like paint, anodizing later, lacquer layer, etc. It is widely used in manufacturing industries, metal processing industries, chemical industries, commodity inspection area, able to work in outdoor and laboratory environments.

Measuring Principle:

This instrument has a unique single external probe which uses the principle of eddy current to measure thickness of non-magnetic coatings on non-magnetic substrates.
