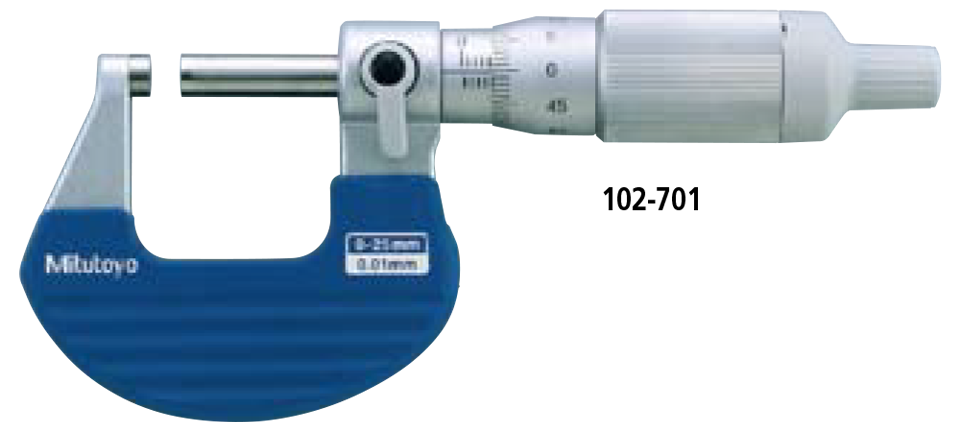

More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer. Ratchet function works both from the thimble and the speeder. Rotating the thimble/speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece. Clearly audible ratchet operation

SPECIFICATIONS

Metric

Order No.	Range	Graduation	Accuracy	Mass
102-701	0 – 25mm	0.01mm	±2µm	180g
102-707	0 – 25mm	0.001mm		180g
102-702	25 – 50mm	0.01mm		270g
102-708	25 – 50mm	0.001mm		270g

Inch

Order No.	Range	Graduation	Accuracy	Mass
102-717	0 – 1″	.0001″	±.0001″	180g
102-718	1″ – 2″	.0001″	±.0001″	270g

DIMENSIONS

Thimble Micrometer

Technical Data

Flatness: 0.6μm/.000024”
Parallelism: 2μm/.00008”
Measuring force: 5-10N
Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models)
Spanner (301336), 1 pc

Internal structure

Greatly improved accuracy and repeatability

Thimble Micrometer

More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer.
Ratchet function works both from the thimble and the speeder.
Rotating the thimble/speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece.
Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
The speeder is always available for quick rotation of spindle.
A simple mechanism, which requires neither parts maintenance nor special technique, is employed in the constant-force device.
Heat-insulated frame.
Measuring faces: Carbide
