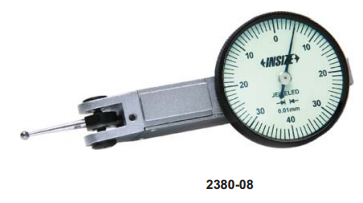

DIAL TEST INDICATOR CODE – 2380

Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138) Code Range Graduation Accuracy Hysteresis Dial reading A L mm 2380-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø30 13.5 2381-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø37 13.5 2380-02* 0.2mm 0.002mm 6µm 2µm

Download PDF

Jeweled bearing
Carbide contact point
Two measuring directions
Anti magnetic body
Supplied with two clamps: diameter Ø4mm and Ø8mm
Optional accessory: styli (page 138)

Code	Range	Graduation	Accuracy	Hysteresis	Dial reading	A	L mm
2380-08*	0.8mm	0.01mm	13µm	3µm	0-40-0	Ø30	13.5
2381-08*	0.8mm	0.01mm	13µm	3µm	0-40-0	Ø37	13.5
2380-02*	0.2mm	0.002mm	6µm	2µm	0-100-0	Ø30	12.5
2381-02*	0.2mm	0.002mm	6µm	2µm	0-100-0	Ø37	12.5
