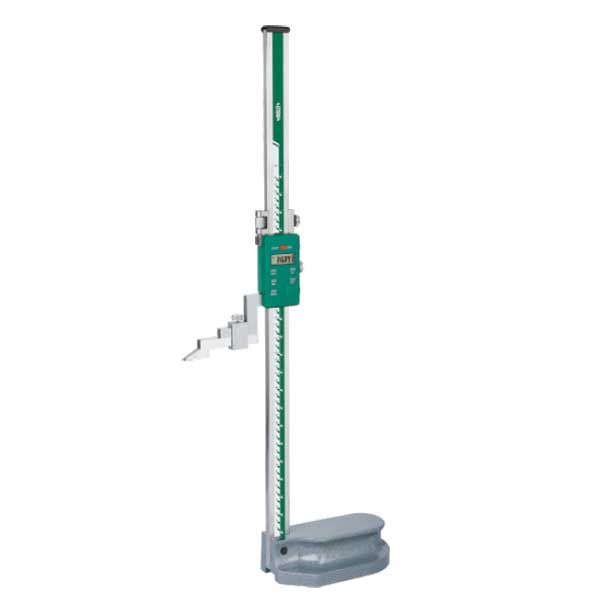

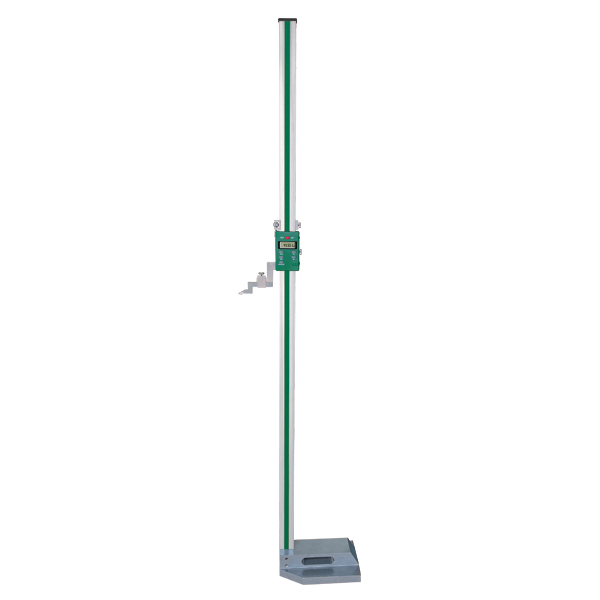

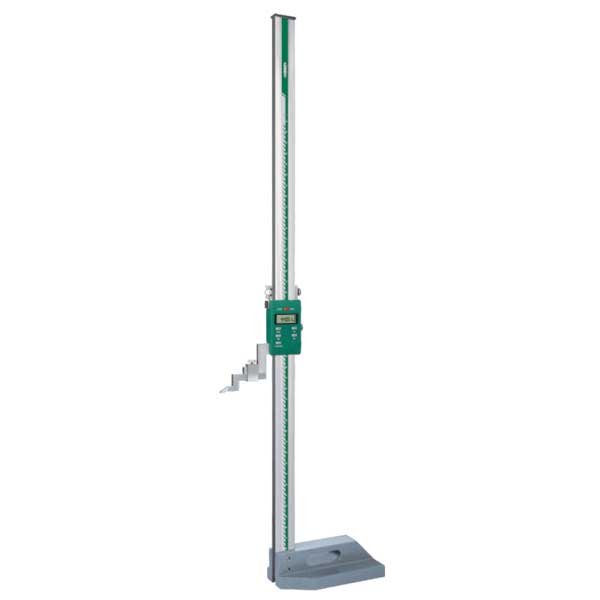

INSIZE DIGITAL HEIGHT GAGES (CODE – 1150)

Non waterproof Resolution: 0.01mm/0.0005" Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set ABS/INC is for absolute and incremental measurement TOL is for tolerance measurement Carbide tipped scriber Made of stainless steel (except the base) LR44 battery Data output Supplied with dial test indicator holder Supplied with a dust cover (except 1150-1500/2000) Optional accessory: data output cable (code 7301-SPC5)

Download Catalog

Code	Range	Type	Accuracy (mm)	L (mm)	a1 (mm)	a2 (mm)	b (mm)	c1 (mm)	c2 (mm)	c3 (mm)	d (mm)	e (mm)	f (mm)
1150-300	0-300mm/0-12″	A	±0.04mm	485	135	45	80	76	25	10	23	6	8
1150-500	0-500mm/0-20″	B	±0.06mm	720	180	55	95	103	25	12	30	10	12
1150-600	0-600mm/0-24″	B	±0.06mm	820	180	55	95	103	25	12	30	10	12
1150-1000	0-1000mm/0-40″	C	±0.08mm	1275	250	80	125	110	39	15	50	10	15
1150-1500	0-1500mm/0-60″	C	±0.12mm	1790	280	80	125	110	39	15	50	10	15
1150-2000	0-2000mm/0-80″	C	±0.16mm	2290	280	80	125	110	39	15	50	10	15
