MarCal 18 EWR Digital Caliper – IP65, Data Interface

MARCAL 18 EWR – DIGITAL WORKSHOP CALIPER, IP 65, DATA INTERFACE

Digital workshop caliper, IP 65, Data interface, with blades Measuring blades for outside measurements High contrast analog display Locking screw above Rounded measuring blades for inside measurements Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants

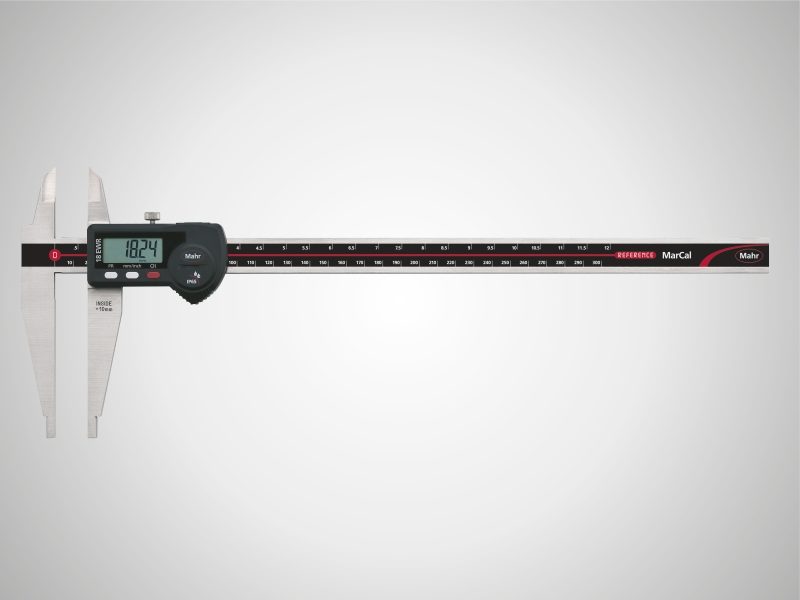

Digital workshop caliper, IP 65, Data interface, with blades

Measuring blades for outside measurements
High contrast analog display
Locking screw above
Rounded measuring blades for inside measurements
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideways for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
USB
Opto RS232C
Digimatic
Wireless
IP 65
Battery
Instruction manual
Case
Battery life approx. 3 years

Height of digits

12.5 mm

Order no.	Measuring range mm	Measuring range inches	Resolution mm/inch	Error limit (mm)	Error limit inches	Standard
4112704	0 – 300	0 – 12″	0.01 / .0005″	0.03 mm	.001″	Factory standard
4112712	0 – 500	0 – 20″	0.01 / .0005″	0.04 mm	.0015″	Factory standard
4112714	0 – 750	0 – 30″	0.01 / .0005″	0.05 mm	.002″	Factory standard
4112716	0 – 1000	0 – 40″	0.01 / .0005″	0.06 mm	.0025″	Factory standard

Functions

AUTO-ON / OFF
DATA (Data transmission via connection cable)
ON/OFF
PRESET (for entering a numerical value)
RESET (set display to zero)
mm/inch
LOCK function (key lock)

Digital workshop caliper, IP 65, Data interface, without blades

High contrast analog display
Locking screw above
Rounded measuring blades for inside measurements
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideways for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
USB
Opto RS232C
Digimatic
Wireless
IP 65
Battery
Instruction manual
Case
Battery life approx. 3 years

Height of digits

12.5 mm

Order no.	Measuring range mm	Measuring range inches	Resolution mm/inch	Error limit (mm)	Error limit inches	Standard
4112705	0 – 300	0 – 12″	0.01 / .0005″	0.03 mm	.001″	Factory standard
4112713	0 – 500	0 – 20″	0.01 / .0005″	0.04 mm	.0015″	Factory standard
4112715	0 – 750	0 – 30″	0.01 / .0005″	0.05 mm	.002″	Factory standard
4112717	0 – 1000	0 – 40″	0.01 / .0005″	0.06 mm	.0025″	Factory standard
