MARCATOR 803 SW Precision Dial Indicator

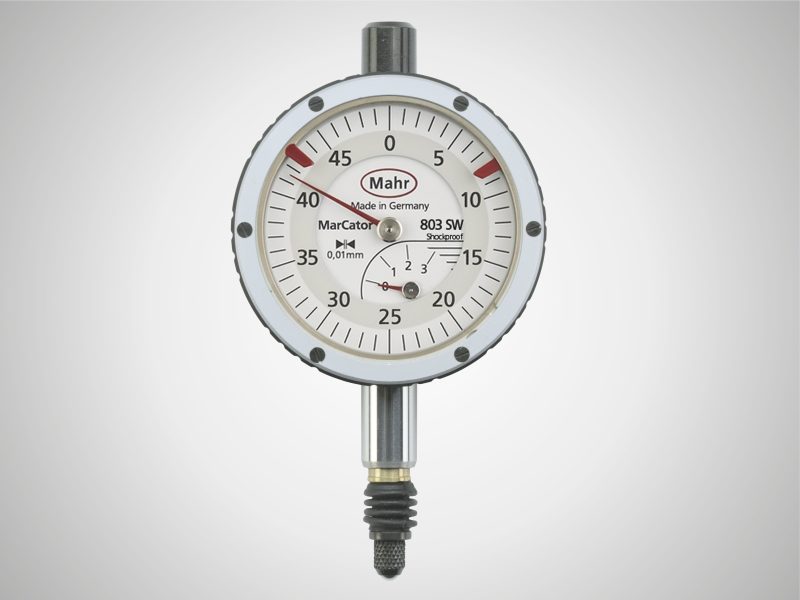

MARCATOR 803 SW PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Precision gears and pinions Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities Technical data Order no. Product type Measuring span in mm Graduation value mm

High contrast dial face
Adjustable tolerance markers
Chrome plated housing
Precision gears and pinions
Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings
Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Error limit measuring range µm	Error limit 1 revolution µm	Error limit 1/2 revolution µm	Error limit 1/10 revolution µm	Hysteresis fu (µm)	Repeatability fw (µm)	Standard	Overtravel mm	IP protection category	Dial color
4315000	810 SW	10 mm	0.01 mm	0 – 100	1 mm	15 µm	10 µm	9 µm	5 µm	3 µm	3 µm	DIN 878	0.1 mm	IP 54	white
4326000	803 SW	3 mm	0.01 mm	0 – 50	0.5 mm	10 µm	9 µm	8 µm	5 µm	3 µm	3 µm	DIN 878	0.1 mm	IP 54	white
