MARCATOR - DIAL INDICATOR ANSI/AGD GROUP 2

MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 2

MARCATOR DIAL INDICATOR Outstanding quality due to a well thought out design, use of high quality materials, and the precision engineered mechanism’s guarantee The concentric “Speed Read“ pointer (on 1.0“ and .500“ models) allows easy and safe reading of this dial indicator Spindle and stem are made of resistant stainless steel Supplied with: lug back

MARCATOR DIAL INDICATOR

Outstanding quality due to a well thought out design, use of high quality materials, and the precision engineered mechanism’s guarantee
The concentric “Speed Read“ pointer (on 1.0“ and .500“ models) allows easy and safe reading of this dial indicator
Spindle and stem are made of resistant stainless steel
Supplied with: lug back and tolerance hands

Technical data

Order no.	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Scale diameter (inches)	Dial color
2016002	1.000″	.001″	0-100	.100″	±.001″	ANSI	2.25″	green
2016004	.500″	.001″	0-100	.100″	±.001″	ANSI	2.25″	green
2016005	.250″	.001″	0-100	.100″	±.001″	ANSI	2.25″	green

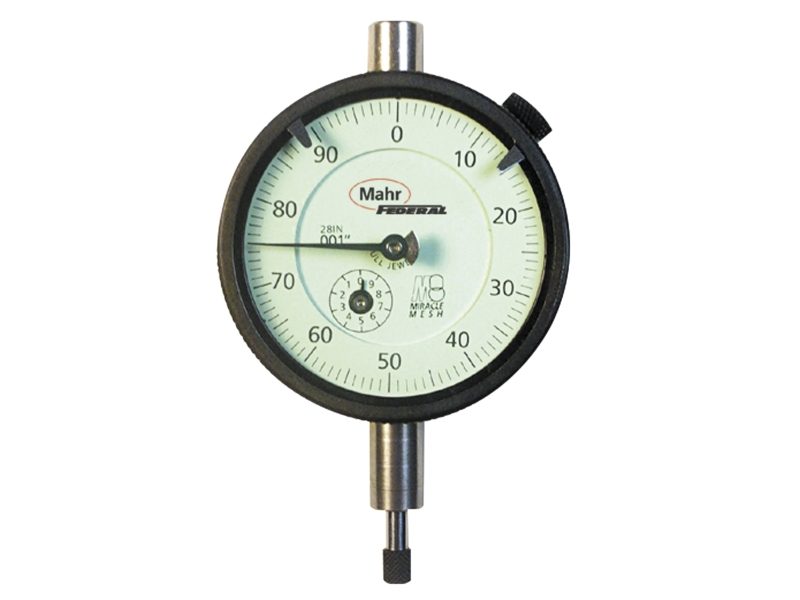

MARCATOR 23K DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Scale diameter (inches)	Dial color
2011049	28IN-RC	.250″	.001″	0-100	.100″	±.001″	ANSI	2.25″	green
2011157	C1/2K	.010″	.00005″	0-2-0	.004″	±.0001″	ANSI	2.25″	green
2011158	C1/2K-RC	.010″	.00005″	0-4	.004″	±.0001″	ANSI	2.25″	green
2011161	C1K	.020″	.0001”	0-4-0	.008″	±.0001″	ANSI	2.25″	green
2011162	C1K-RC	.020″	.0001”	0-8	.008″	±.0001″	ANSI	2.25″	green
2014761	22IN-RC	.025″	.0001”	0-10	.010″	±.0001″	ANSI	2.25″	green
2014791	22QN-RC	.025″	.00025″	0-10	.010″	±.00025″	ANSI	2.25″	green
2014808	23K-RC	.050″	.00025″	0-20	.020″	±.00025″	ANSI	2.25″	green
2014809	23W-RC	.050″	.001″	0-20	.020″	±.001″	ANSI	2.25″	green
2014810	23Q-RC	.050″	.0005″	0-20	.020″	±.0005″	ANSI	2.25″	green
2014811	25M-RC	.075″	.0005″	0-30	.030″	±.0005″	ANSI	2.25″	green
2014812	26K-RC	.100″	.0005″	0-40	.040″	±.0005″	ANSI	2.25″	green
2014813	26Q-RC	.100″	.001″	0-40	.040″	±.001″	ANSI	2.25″	green
2014814	27I-RC	.125″	.0005″	0-50	.050″	±.0005″	ANSI	2.25″	green
2014815	27O-RC	.125″	.001″	0-50	.050″	±.001″	ANSI	2.25″	green
2015781	22I	.025″	.0001”	0-5-0	.010″	±.0001″	ANSI	2.25″	green
2015782	22QN	.025″	.00025″	0-5-0	.010″	±.00025″	ANSI	2.25″	green
2015783	23K	.050″	.00025″	0-10-0	.020″	±.00025″	ANSI	2.25″	green
2015784	23Q	.050″	.0005″	0-10-0	.020″	±.0005″	ANSI	2.25″	green
2015785	23W	.050″	.001″	0-10-0	.020″	±.001″	ANSI	2.25″	green
2015786	25M	.075″	.0005″	0-15-0	.030″	±.0005″	ANSI	2.25″	green
2015787	26K	.100″	.0005″	0-20-0	.040″	±.0005″	ANSI	2.25″	green
2015789	26Q	.100″	.001″	0-20-0	.040″	±.001″	ANSI	2.25″	green
2015790	27I	.125″	.0005″	0-25-0	.050″	±.0005″	ANSI	2.25″	green
2015791	27O	.125″	.001″	0-25-0	.050″	±.001″	ANSI	2.25″	green
2015792	28IN	.250″	.001″	0-50-0	.100″	±.001″	ANSI	2.25″	green

MARCATOR 23I DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise. (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2011810	P1/2I	0.25 mm	0.001 mm	0-5-0	0.1 mm	ANSI	57.15 mm	yellow
2011812	P1/2I-RC	0.25 mm	0.001 mm	0-10	0.1 mm	ANSI	57.15 mm	yellow
2011817	P1I-RC	0.5 mm	0.002 mm	0-20	0.2 mm	ANSI	57.15 mm	yellow
2014817	23IM-RC	1.25 mm	0.005 mm	0-50	0.5 mm	ANSI	57.15 mm	yellow
2014818	26IM-RC	2.5 mm	0.01 mm	0-100	1 mm	ANSI	57.15 mm	yellow
2014819	28IM-RC	5 mm	0.02 mm	0-200	2 mm	ANSI	57.15 mm	yellow
2015793	23I	1.25 mm	0.005 mm	0-25-0	0.5 mm	ANSI	57.15 mm	yellow
2015794	26I	2.5 mm	0.01 mm	0-50-0	1 mm	ANSI	57.15 mm	yellow
2015795	28IM	5 mm	0.02 mm	0-100-0	2 mm	ANSI	57.15 mm	yellow
