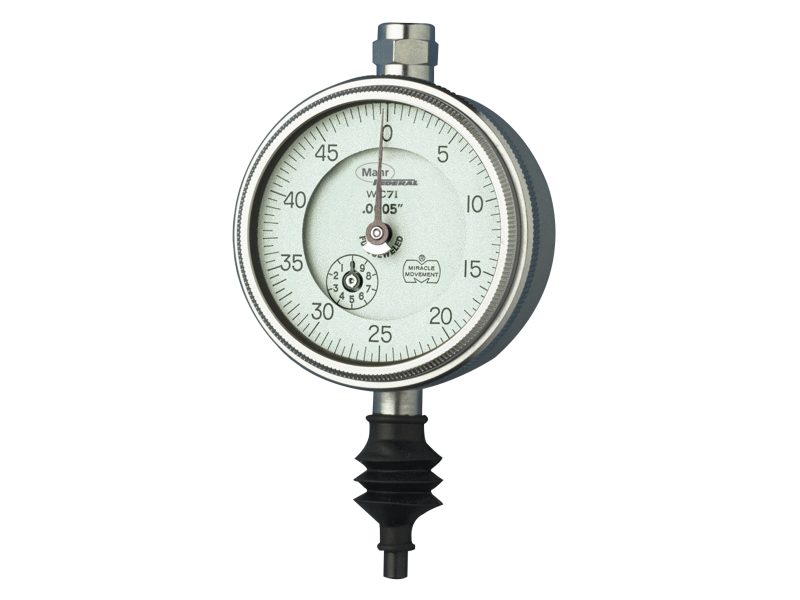

MARCATOR WC7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

MARCATOR WC7I DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Normally furnished: continuous clockwise dial with revolution counter; BK-63 centered vertical lug back; regular contact point, .18” radiused, .625” long
Optional Dials: continuous counterclockwise with revolution counter; balanced outer dial with + on right or left. Order by dial type and specify dial style desired
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Dial color
2014655	W22I	.025″	.0001”	0-10	.010″	± .0001″	ANSI	green
2014663	WC3K	.050″	.00025″	0-20	.020″	± .00025″	ANSI	green
2014665	WC3Q	.050″	.0005″	0-20	.020″	± .0005″	ANSI	green
2014667	WC5M	.075″	.0005″	0-30	.030″	± .0005″	ANSI	green
2014669	WC6K	.100″	.0005″	0-40	.040″	± .0005″	ANSI	green
2014671	WC7I	.125″	.0005″	0-50	.050″	± .0005″	ANSI	green
2014673	WC8I	.250″	.001″	0-100	.100″	± .001″	ANSI	green
2014675	WC8IS	1.000″	.001″	0-100	.100″	± .001″	ANSI	green

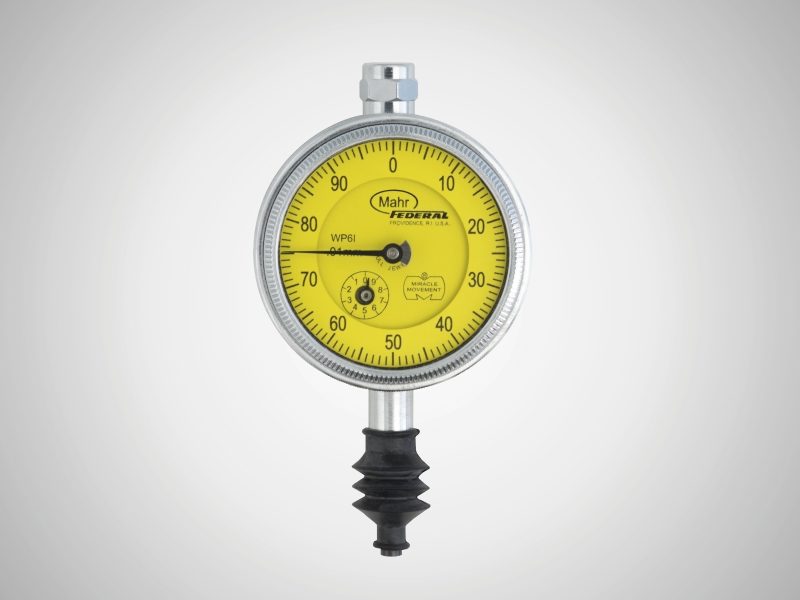

MARCATOR WP6I DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Normally furnished: continuous clockwise dial with revolution counter; BK-63 centered vertical lug back; regular contact point, .18” radiused, .625” long
Optional Dials: continuous counterclockwise with revolution counter; balanced outer dial with + on right or left. Order by dial type and specify dial style desired
For other dial styles or special requirements – call Mahr
