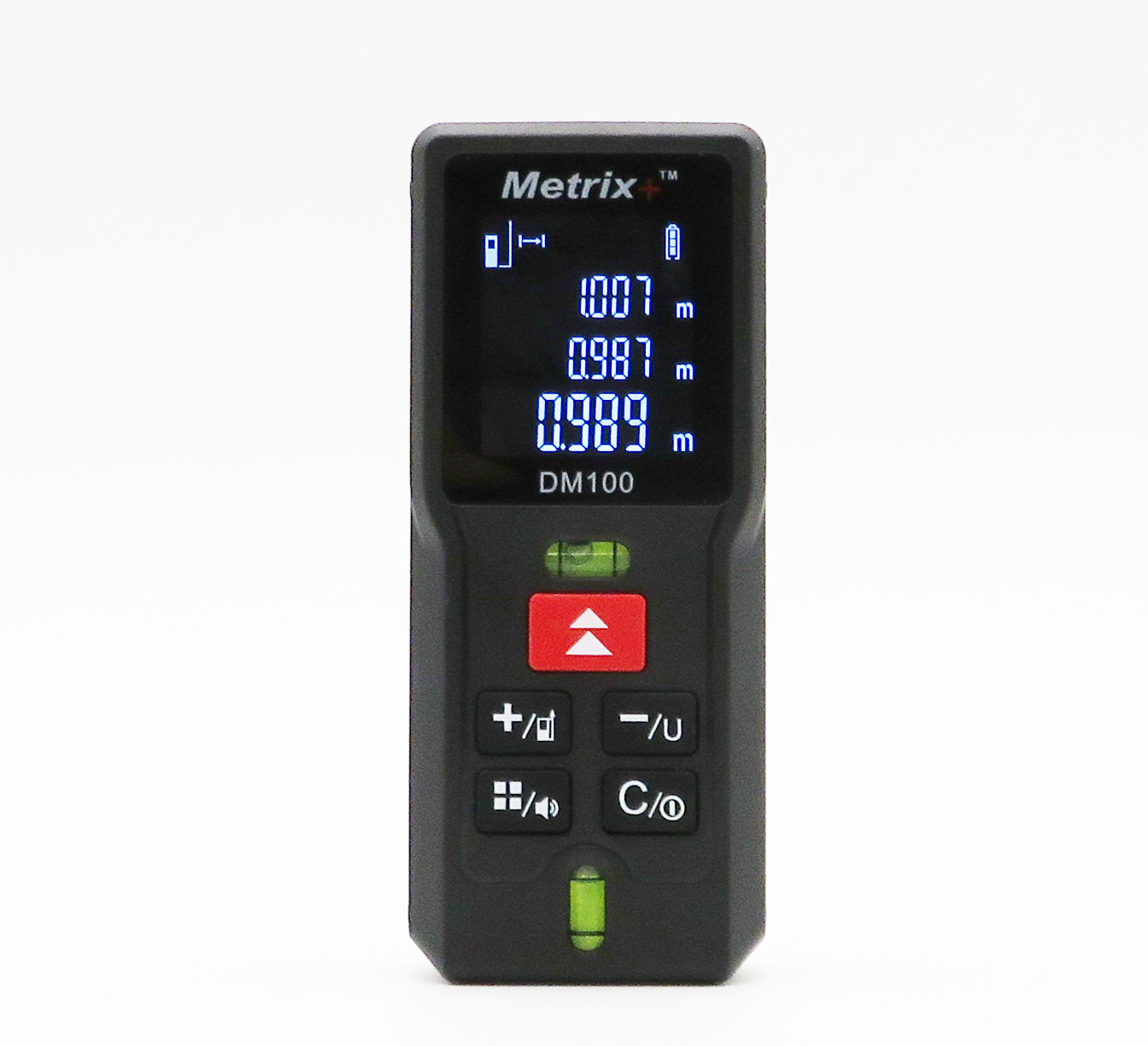

Metrix+ DM 100

100m Laser Distance Meter with area/volume calculations, bi axis spirit level, data storage and clear OLED display.

Features:

Pocket type.
Area/volume calculations
Clear display for better readability from all angles.
Historical data review.
Bi-axis spirit bubble for checking level.

Buy Now

Download Catalog

Model	Metrix+ DM 100
Measuring mode	Single and Continuous(max/min)
Measuring range	0.05 ~ 100m
Accuracy(Standard Deviation)	±2.0mm
Measuring units	Distance : m, ft, in
	Area : m2, ft2
	Volume : m3, ft3

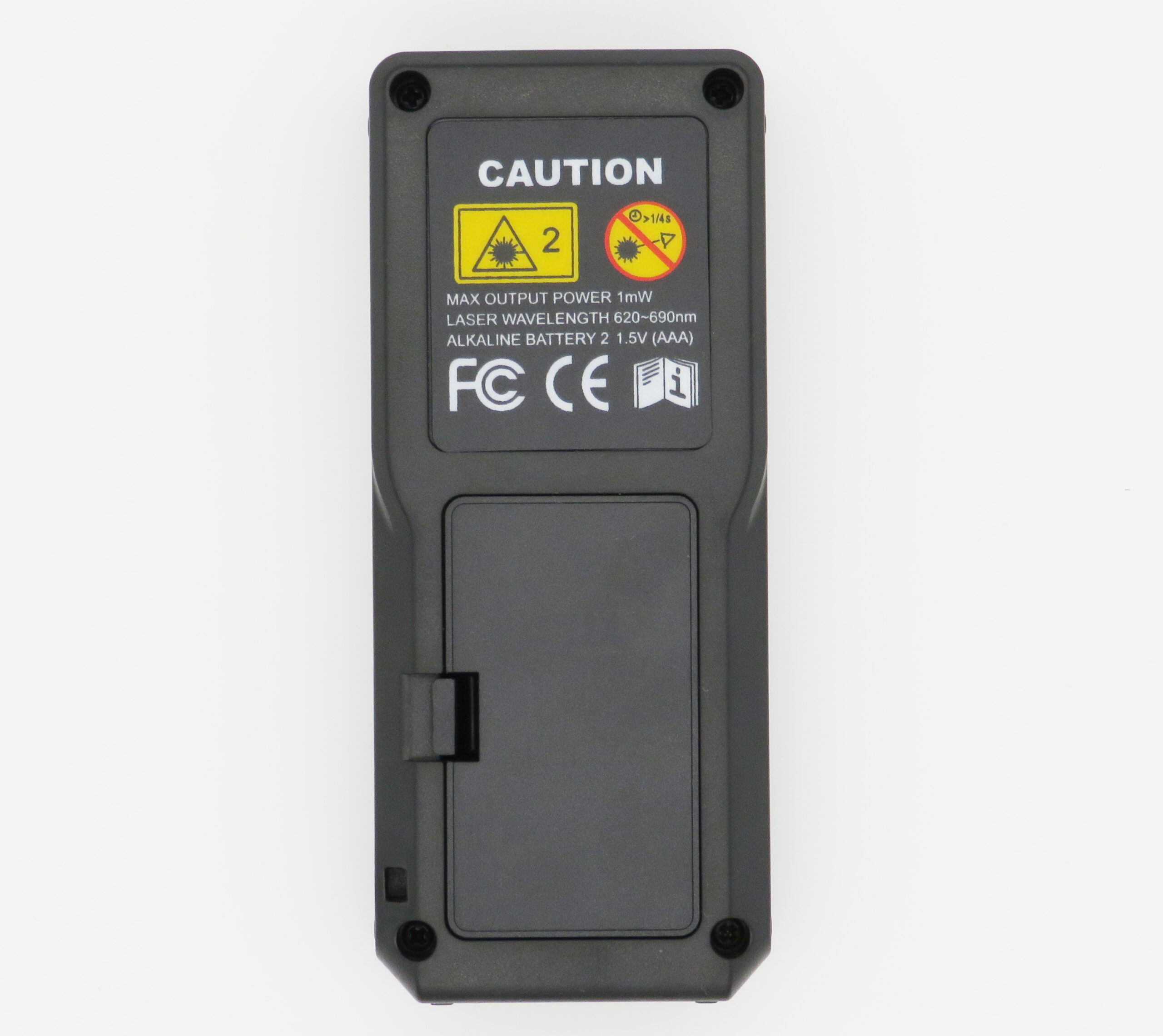

Laser Type	620 – 690nm, Class II, <1mW
Single Measurement time	0.25s
Other functionalities	Area, Volume, Pythagoras measurements
	Switchable measuring reference,
	Silence function,
	Battery power indication
Historical data review	20 groups of data
Auto switch off	Laser : 30s
	Instrument : 180s
Operating temperature	0 to 40℃
Storage Temperature	-20 to 65℃
Dimensions and weight	110mm×46mm×25mm ; 72g(without batteries)
Batteries	2 x AAA 1.5V ; >5000 times working time(fully charged)

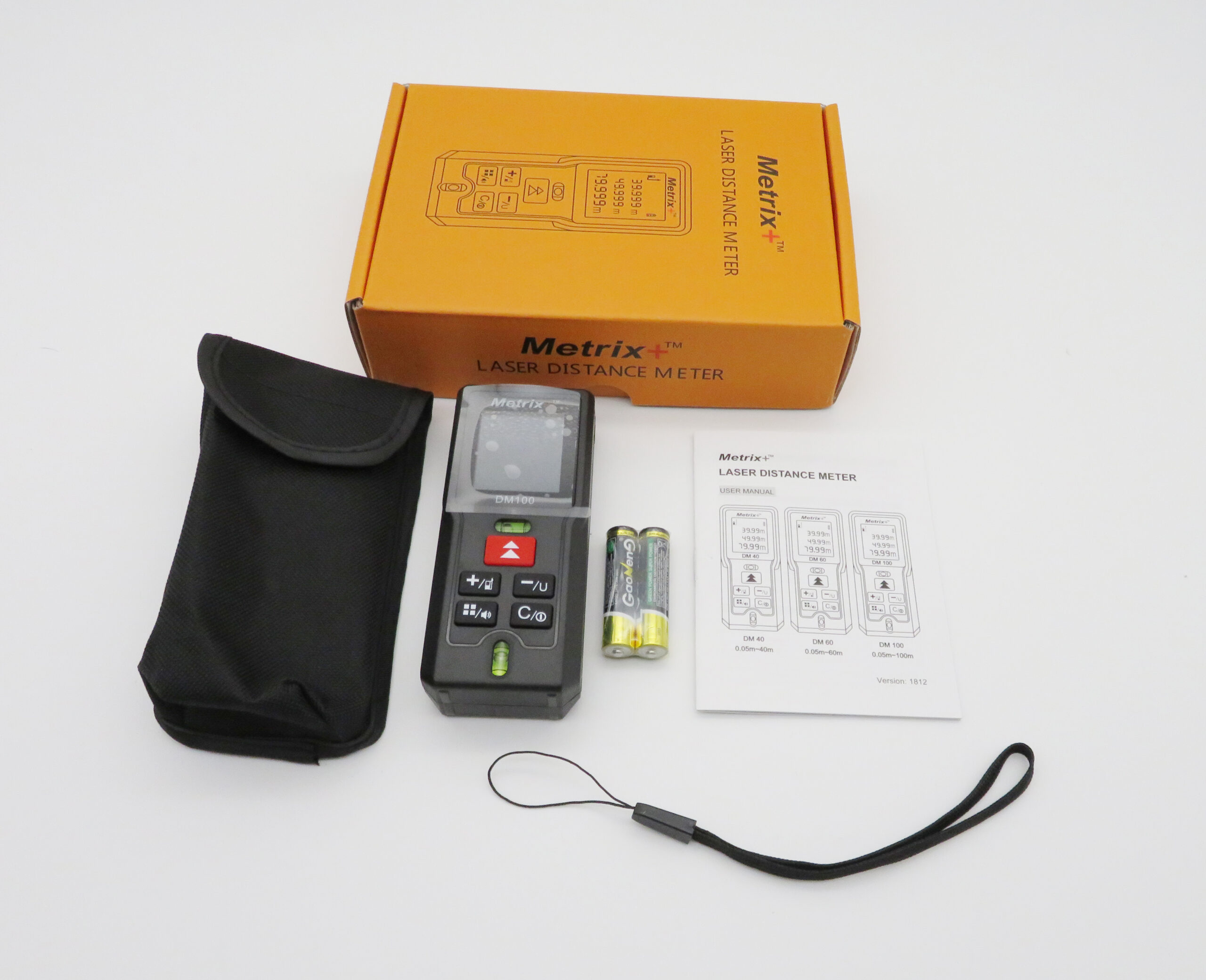

Standard Accessories	Laser distance meter, carrying case, batteries, technical manual.

Applications:

This meter can be used to calculate distance, area, volume, and pythagorean distance in different units. Used in construction sites, floor planning, room area calculations and realtor industry.

Measuring Principle:

A Laser Distance Meter sends out a pulse of laser light to the target and detects the reflection. The meter then measures the time between those two events, and converts this to a distance.
