Mitutoyo 530 Standard Vernier Caliper

MITUTOYO-530 SERIES – STANDARD MODEL-VERNIER CALIPER

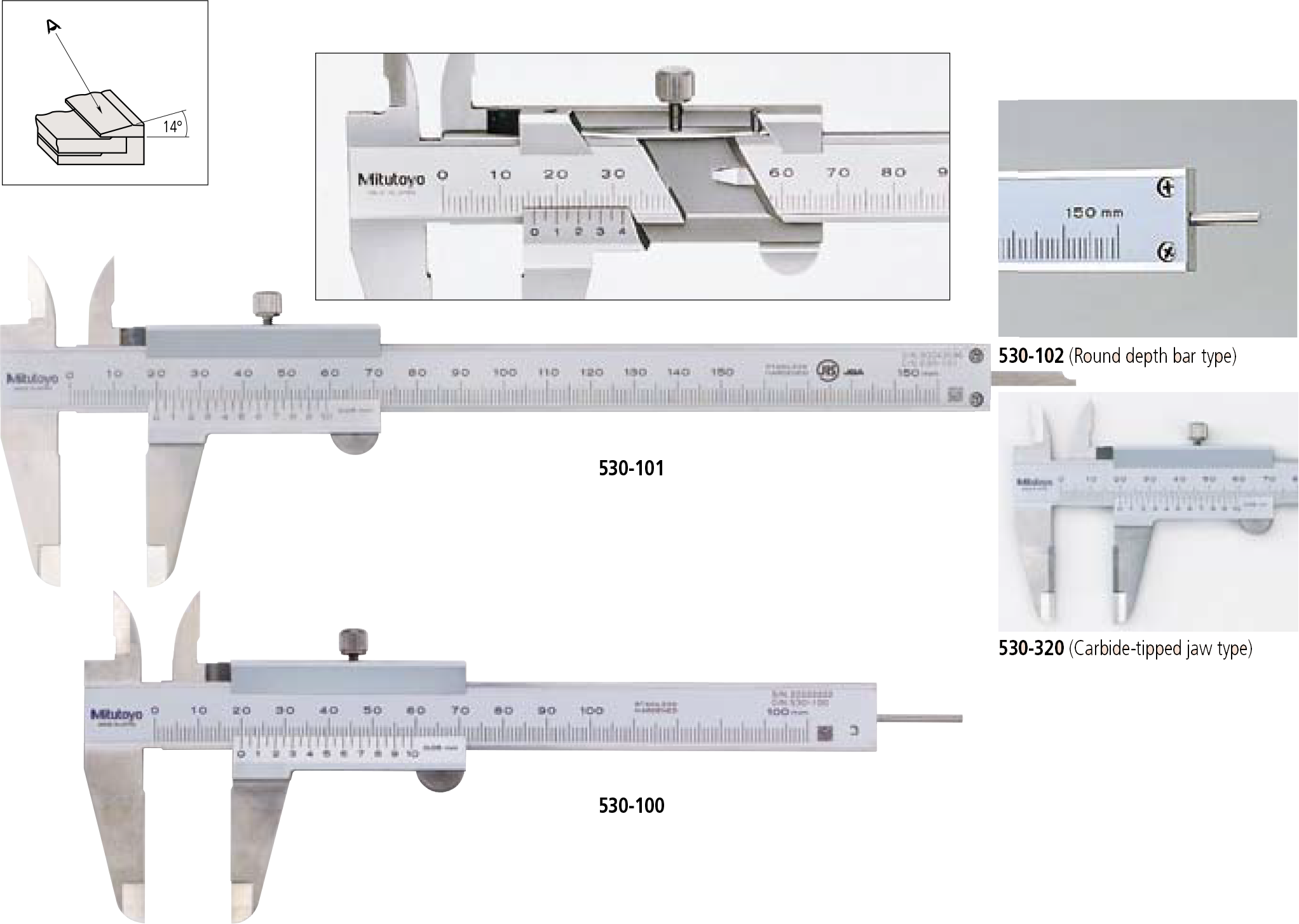

Plain and basic design. Stepped graduation face prevents dust ingress between the main scale and slider. The small vernier face angle (14°) provides easy reading. Can measure outside and inside dimensions, depth, and steps. Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc. Decimal and fractional graduated scales (metric/inch and inch models only).

SPECIFICATIONS

Metric

Order No.	Range	Depth bar	Remarks
530-100	0 – 100mm	ø1.9mm rod	—
530-102	0 – 150mm	ø1.9mm rod	—
530-101		Blade	—
530-320			Carbide-tipped jaws for outside measurement
530-335			Carbide-tipped jaws for outside and inside measurement
530-122*			High accuracy model: ±0.03mm
530-108	0 – 200mm		—
530-321			Carbide-tipped jaws for outside measurement
530-123*			High accuracy model: ±0.03mm
530-109	0 – 300mm		—
530-322			Carbide-tipped jaws for outside measurement
530-124*			High accuracy model: ±0.04mm
530-501	0 – 600mm	—	—
530-502	0 – 1000mm	—	—

* Graduation: 0.02mm

Metric/Inch with metric/inch double scale

Order No.	Range	Depth bar	Inch graduation	Remarks
530-104	0 – 150mm	Blade	1/128″	—
530-316			1/128″	Clamping screw below the slider
530-312*			.001″	High accuracy model: ±0.03mm
530-114	0 – 200mm		1/128″	—
530-118*	0 – 200mm		.001″	High accuracy model: ±0.03mm
530-115	0 – 300mm		1/128″	—
530-119*	0 – 300mm		.001″	High accuracy model: ±0.04mm

* Graduation: 0.02mm

Inch with inch/inch double scale

Order No.	Range	Depth bar	Inch graduation	Remarks
530-105	0 – 6″	Blade	1/128″	—
530-116	0 – 8″	Blade	1/128″	—

Measurement Applications

1. Outside measurement

Standard model Vernier Caliper

2. Inside measurement

Standard model Vernier Caliper

3. Step measurement

Standard model Vernier Caliper

4. Depth measurement

Standard model Vernier Caliper

Technical Data
Accuracy:
±0.05mm (≤200mm), ±0.08mm (≤300mm)
±0.10mm (≤600mm), ±0.15mm (≤1000mm)
High accuracy type:
±0.03mm (≤200mm), ±0.04mm (≤300mm)
Graduation:
0.05mm, 0.05mm (1/128”) or .001” (1/128”)
High accuracy type:
0.02mm or 0.02mm (.001”

DIMENSIONS

Standard model Vernier Caliper

Range	Outside jaw thickness
0 – 100mm	3
0 – 150mm 0 – 200mm	3
0 – 300mm	3.8
0 – 600mm	6
0 – 1000mm	8

Range	A	B	D	E	F	H	L
0 – 100mm	17	21.5	40	53.5	30	16	182
0 – 150mm	17	21.5	40	53.5	30	16	229
0 – 200mm	20.5	25	50	53.5	30	16	288
0 – 300mm	22	27.5	64	66.5	36	20	404
0 – 600mm	38	47	90	89	50	25	780
0 – 1000mm	50	60	130	111	61	32	1240

* Code No.530-100 and No.530-102 incorporate a round depth bar (ø1.9mm).
The depth bar shown in the illustration above is a different type.

)

Plain and basic design.
Stepped graduation face prevents dust ingress between the main scale and slider.
The small vernier face angle (14°) provides easy reading.
Can measure outside and inside dimensions, depth, and steps.
Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc.
Decimal and fractional graduated scales (metric/inch and inch models only).

Standard model Vernier Caliper
