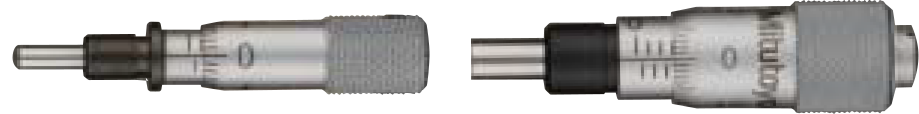

- Miniature micrometer heads for ease of incorporating into machines.
SPECIFICATIONS
Metric
| Order No. | Range | Accuracy | Stem dia. | Stem | Spindle end | Graduation |
|---|---|---|---|---|---|---|
| 148-215 | 0 – 5mm | ±5µm | 3.5mm |
Plain W/ clamp nut |
Spherical (SR1.5) | Standard |
| 148-216 | ||||||
| 148-201 | 0 – 6.5mm | 6mm |
Plain W/ clamp nut |
Flat | ||
| 148-203 | ||||||
| 148-205 |
Plain W/ clamp nut |
Spherical (SR3) | ||||
| 148-207 | ||||||
| 148-209 |
Plain W/ clamp nut |
Flat | Reverse reading | |||
| 148-211 |
Inch
| Order No. | Range | Accuracy | Stem dia. | Stem | Spindle end | Graduation |
|---|---|---|---|---|---|---|
| 148-217 | 0 – .2″ | ±.00025″ | .156″ |
Plain W/ clamp nut |
Spherical (SR1.5) | Standard |
| 148-218 | ||||||
| 148-202 | 0 – .25″ | .25″ |
Plain W/ clamp nut |
Flat | ||
| 148-204 | ||||||
| 148-206 |
Plain W/ clamp nut |
Spherical (SR3) | ||||
| 148-208 | ||||||
| 148-210* |
Plain W/ clamp nut |
Flat | Reverse reading | |||
| 148-212* |
* made-to-order models
DIMENSIONS
Technical Data
Graduation: 0.02mm (148-215, 148-216),0.01mm or .001″
