MITUTOYO-SERIES 293-IP54 ABSOLUTE DIGIMATIC MICROMETERS-QUICKMIKE

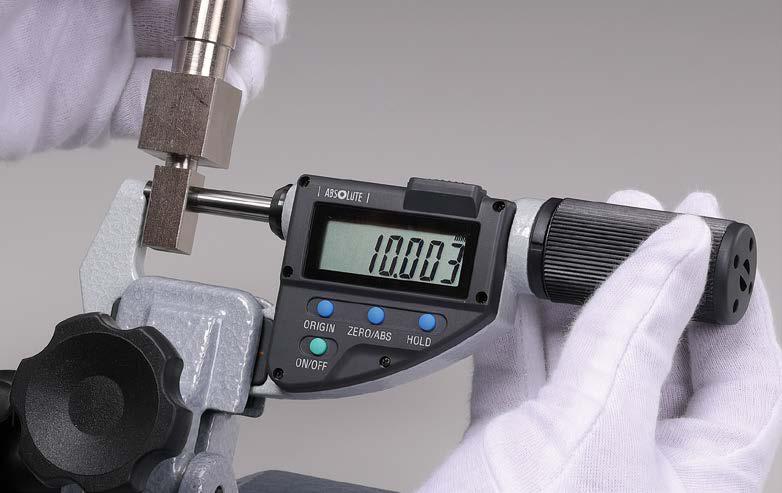

The Quickmike provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. Set the origin only once. The absolute linear scale maintains the origin throughout the life of battery, meaning no more zero setting (presetting) or overspeed error. The Quickmike Measuring faces: Carbide Supplied with

SPECIFICATIONS

Metric

Order No.	Range	Accuracy*	Flatness	Parallelism	Mass	Output function
293-661-10	0 – 30mm	±2µm	0.3µm	2µm	275g	Without
293-666	0 – 30mm				275g	With
293-667	25 – 55mm				355g
293-668	50 – 80mm	±3µm			525g
293-669	75 – 105mm	±3µm		3µm	625g

* Excluding quantizing error

Inch/Metric

Order No.	Range	Accuracy*	Flatness	Parallelism	Mass	Output function
293-676	0 – 1.2″	±.0001″	.000012″	.00008″	275g	With
293-677	1″ – 2.2″	±.0001″			355g
293-678	2″ – 3.2″	±.00015″			525g
293-679	3″ – 4.2″	±.00015″		.00012″	625g

* Excluding quantizing error

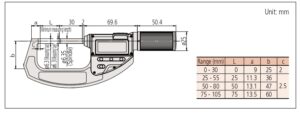

DIMENSIONS

Range	L	a	b	c	d
0 – 30	0	7	25	2	34.8
25 – 55	25	8.5	36	2.8	59.8
50 – 80	50	10.3	47		84.8
75 – 105	75	10.7	60		109.8

Quickmike

IP Codes

Level 5: Protected against dust. Ingress of dust is not totally prevented, but dust that does penetrate must not interfere with satisfactory operation of the apparatus or impair safety.

Level 4: Protected against splashing water. Water splashed against the enclosure from any direction shall have no harmful effects.

Technical Data

Resolution: 0.001mm, .00005”/0.001mm

Accuracy: Refer to the list of specifications.

Measuring force: 5 – 10N

SR44 (1 pc), 938882, for initial operational checks (standard accessory)

Battery life: Approx. 3 years under normal use (1 year for No. 293-667, 668, 669, 677, 678, 679)

Length standard: Electrostatic capacity absolute sensor
Standard accessories: Reference bar, 1 pc(except for measuring range 0-30mm (0-1.2″) models)

Maximum response speed: without limit The non-rotating spindle enables even inexperienced operators to perform measurements repeatably and accurately.

Optional accessories

Connecting cables

1m: 937387

2m: 965013USB

Input Tool Direct

USB-ITN-E (2m): 06ADV380E

Connecting cables for U-WAVE-T

02AZD790E 160mm

For foot switch: 02AZE140E

Refer to page B-68 for details.

Quickmike

The Quickmike provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly.
Set the origin only once. The absolute linear scale maintains the origin throughout the life of battery, meaning no more zero setting (presetting) or overspeed error.
The Quickmike Measuring faces: Carbide
Supplied with a Ratchet Stop for constant measuring measuring force.
The lineup includes Blade Micrometer types (refer to page B-48), Disk Micrometer types (refer to page B-35 for details) and Crimp Height Micrometer types (refer to page B-52).
