MULTIMAR 844 TMI MOUNTING ATTACHEMENT

• For outside (844 Tma) and inside diameters (844 Tmi)
• Stainless steel
• Lateral mm scale for easy positioning and adjustment of measuring limit stops
• Reversible measuring arms on measuring arm holders to increase the measuring range
• With ø 5 mm mounting bore for inserting interchangeable 844 Ta, 844 Ti, 844 Tb, 844 Tc, 844 Td, 844 Tz and 844 Tv measuring anvils

MULTIMAR 844 TE MEASURING ARMS

• For major and minor diameters
• Stainless steel
• Lateral mm scale for easy positioning and adjustment of measuring limit stops
• Reversible measuring arms on measuring arm holders to increase the measuring range
• 3.5 mm diameter holder for inserting interchangeable measuring anvils 844 Tp, 844 Ts, 844 Tk, 844 Tr and 844 Tg

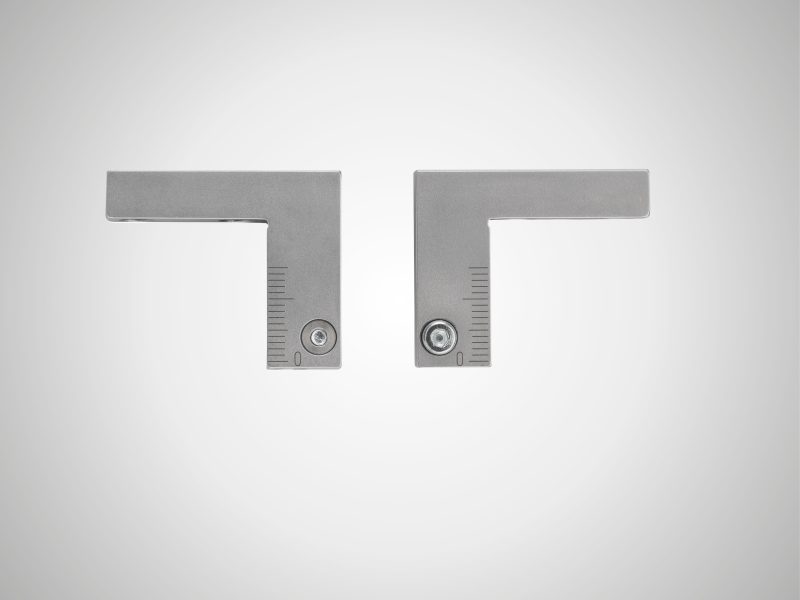

MULTIMAR 844 TW DEPTH STOPS FOR 844 TMA, 844 TMI, 844 TE

• Stops with stall protected 3-point support
• Hardened stop pins
• Interchangeable and adjustable

Applications

• For adjustment of the measuring depth in horizontal measuring position
• Precise stops in one plane for repeatable measurements
• To be mounted on 844 Tma, 844 Tmi, 844 Te
• For easy setting of the measuring depth, a mm scale is engraved on the measuring arms 844 Tma, 844 Tmi and 844 Te
• For percise stetting of the measuring depth (i.e. for taper measurements) gage blocks can be used

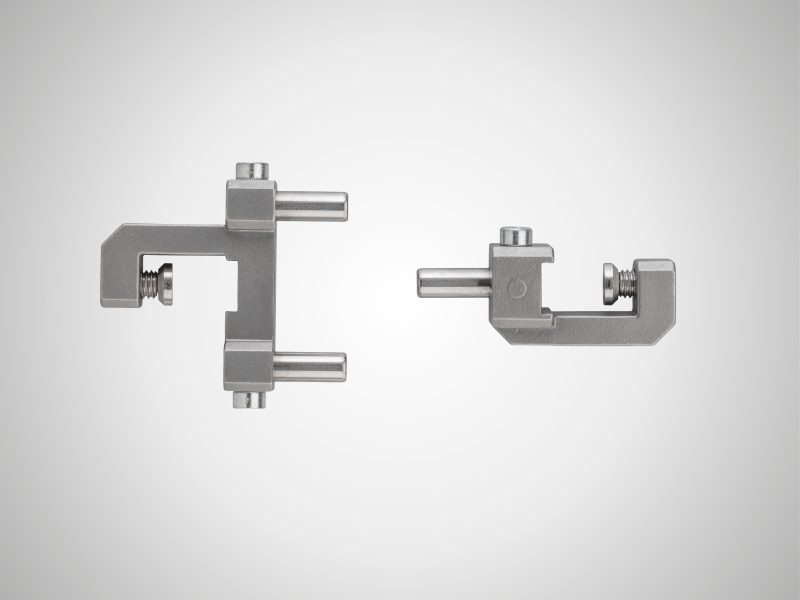

MULTIMAR 844 TY HOLDER FOR MEASURING ROLLERS

• With location bolts for the measuring rollers 706 Vr Vr and provision for a stop and stop pin

Applications

• Determining the pitch diameter of outer threads

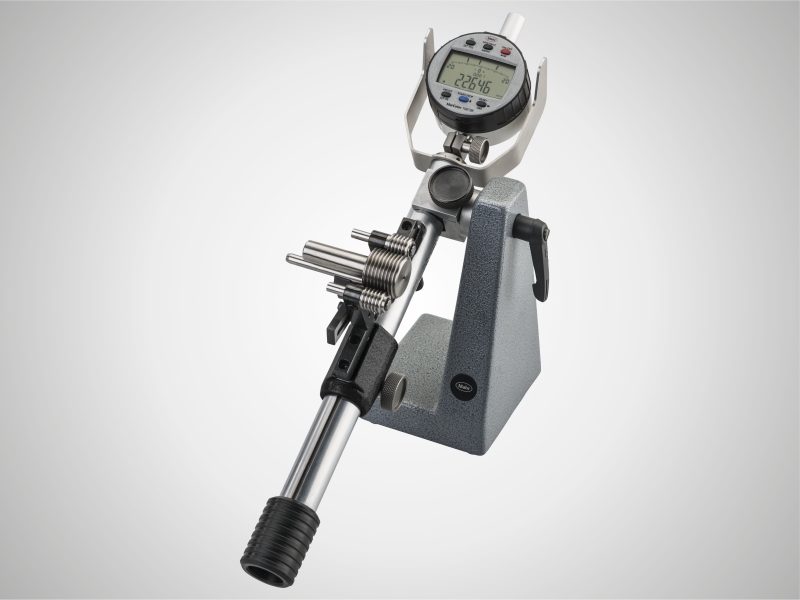

MULTIMAR 844 TF STAND

• User has both hands free for insertion of work piece
• The indicating instrument is always in the operator#92s line of vision
• Strong, stable cast base with clamping device for Universal Measuring Instrument

Applications

• For stationary use of the Universal Measuring Instrument 844 T Measuring range 25 – 110 mm
